Weidmüller

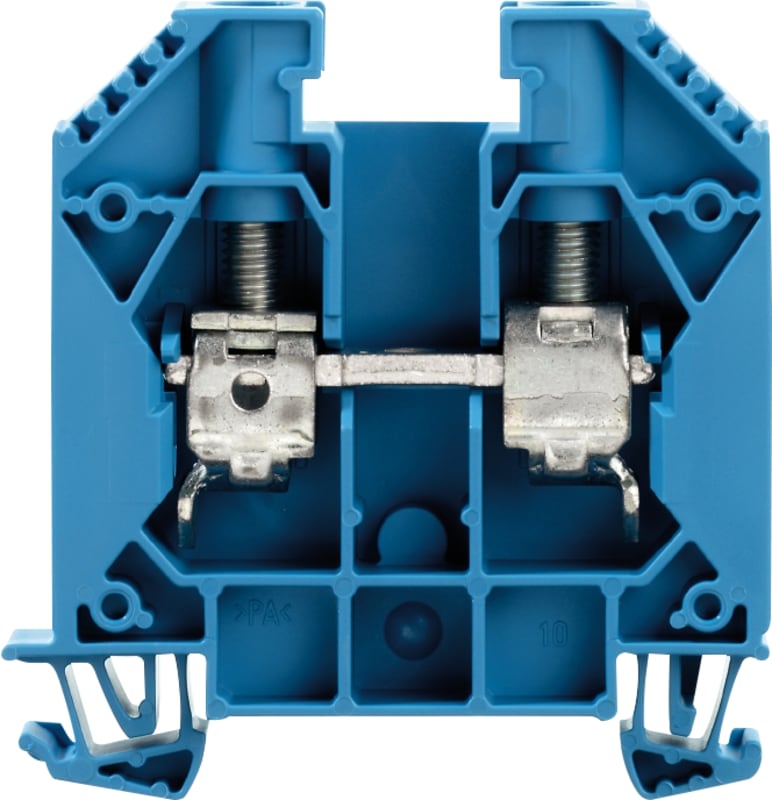

DIN-RAIL Terminal WDU 16 BLUE
Part numberWDU 16 BLEAN / GTIN4008190126261HS code8536.90
Electrical Components
Terminal Blocks
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Weidmüller WDU 16 BL Feed-through terminal block, Screw connection.
Technical Specifications
- Manufacturer part number (MPN)
- WDU 16 BL
- EAN / GTIN
- 4008190126261
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Suitable for conductor material
- Copper
- Connectable conductor cross section solid-core
- 0.82–16 mm²
- Connectable conductor cross section multi-wired
- 0.82–25 mm²
- Rated current In
- 76 A
- Rated voltage
- 1000 V
- Type of electrical connection 1
- Screw connection
- Type of electrical connection 2
- Screw connection
- Connection position
- Sideways
- Number of levels
- 1
- Number of clamp positions per level
- 2
- Mounting method
- DIN rail (top hat rail) 35 mm
- Material insulation body
- Thermoplastic
- Operating temperature
- -60–130 °C
- Width
- 11.9 mm
- Width/grid dimension
- 11.9 mm
- Height
- 60 mm
- Depth
- 62.5 mm
- Length
- 60 mm
- Explosion-tested version 'Ex e'
- Yes
- Closing plate required
- Yes
- Colour
- Blue
- Internally connected stages
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4008190126261
- SAP 1000068022
- Code 8745147
Product Documentation
Document preview: DIN-RAIL Terminal WDU 16 BLUE — Specification sheet
More from Weidmüller
Weidmüller
Weidmüller ZAP/TW 3 End Plate for Spring-Force Terminal Series
Weidmüller
WQV 2,5/ 3 Cross-connection
WQV 2.5/3
Weidmüller
WDU 1,5 ZZ DIN-RAIL Terminal
WDU 1.5/ZZ
Weidmüller
SSCH, Earthing Rail 10X3, CU
SSCH 10X3X1000 CU/SN
Weidmüller
Weidmüller CLI MH 70 HSTR label holder, medium-walled, black
Weidmüller
WDU 2,5 N (wdu 2.5N)
WDU 2.5N
Weidmüller
Weidmüller Modular distribution terminals, PUSH IN, 2 AAP12 2.5 LI RD
Weidmüller
DEKAFIX-5-FWZ 51-60 (dek 5 FWZ 51-60)
DEK 5 FWZ 51-60
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy WDU 16 BL?
- WDU 16 BL can be ordered from cballast.com as a Weidmüller catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Weidmüller product?
- The manufacturer part number is WDU 16 BL.
- What is the HS code for WDU 16 BL?
- The customs tariff (HS) code for WDU 16 BL is 8536.90.
- Who manufactures WDU 16 BL?
- WDU 16 BL is a Weidmüller product in the Electrical Components range.
- Is a datasheet available for WDU 16 BL?
- Yes — the WDU 16 BL datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for WDU 16 BL?
- The minimum order quantity is 1.
- Is WDU 16 BL available?
- Yes — WDU 16 BL is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
