Weidmüller

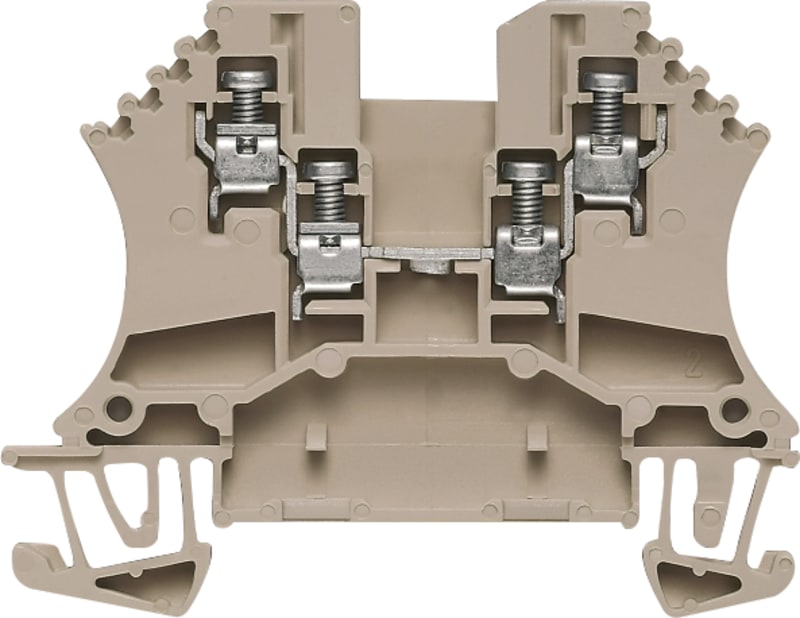

WDU 1,5 ZZ DIN-RAIL Terminal
Part numberWDU 1.5/ZZEAN / GTIN4008190148546HS code8536.90
Electrical Components
Terminal Blocks
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Weidmüller WDU 1.5/ZZ Feed-through terminal block.
Technical Specifications
- Manufacturer part number (MPN)
- WDU 1.5/ZZ
- EAN / GTIN
- 4008190148546
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Suitable for conductor material
- Copper
- Connectable conductor cross section solid-core
- 0.5–2.5 mm²
- Connectable conductor cross section multi-wired
- 0.5–2.5 mm²
- Rated current In
- 17.5 A
- Rated voltage
- 800 V
- Type of electrical connection 1
- Screw connection
- Type of electrical connection 2
- Screw connection
- Connection position
- Sideways
- Number of levels
- 1
- Number of clamp positions per level
- 4
- Mounting method
- DIN rail (top hat rail) 35 mm
- Material insulation body
- Thermoplastic
- Operating temperature
- -60–130 °C
- Width
- 5.1 mm
- Width/grid dimension
- 5.1 mm
- Height
- 60 mm
- Depth
- 46.5 mm
- Length
- 60 mm
- Explosion-tested version 'Ex e'
- Yes
- Closing plate required
- Yes
- Colour
- Beige
- Internally connected stages
- No
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4008190148546
- SAP 1000020665
- Code 8158749
Product Documentation
Document preview: WDU 1,5 ZZ DIN-RAIL Terminal (wdu 1.5/Zz) — Specification sheet
More from Weidmüller
Weidmüller
SSCH, Earthing Rail 10X3, CU
SSCH 10X3X1000 CU/SN
Weidmüller
Weidmüller CLI MH 70 HSTR label holder, medium-walled, black
Weidmüller
WDU 2,5 N (wdu 2.5N)
WDU 2.5N
Weidmüller
Weidmüller Modular distribution terminals, PUSH IN, 2 AAP12 2.5 LI RD
Weidmüller

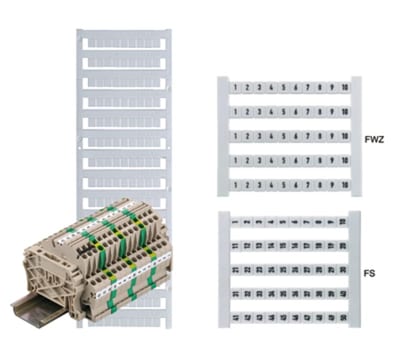

DEKAFIX-5-FWZ 51-60 (dek 5 FWZ 51-60)
DEK 5 FWZ 51-60
Weidmüller

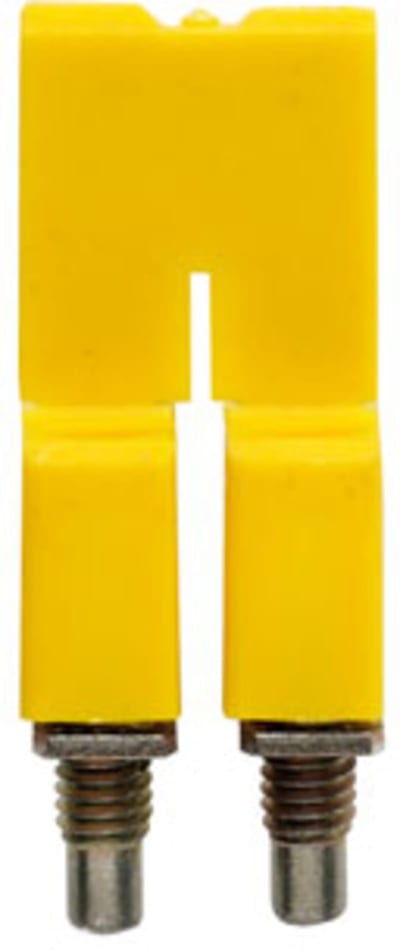

WQV 2,5/ 2 Cross-connection
WQV 2.5/2
Weidmüller

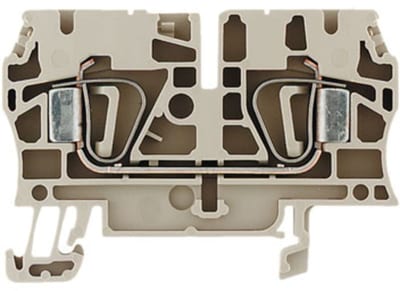

DIN-RAIL Terminal ZDU 4 Spring
Weidmüller

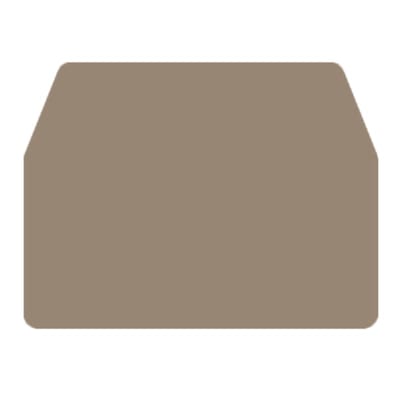

Weidmüller WAP WDU1.5/R3.5 End Plate for WDU 1.5/R3.5
