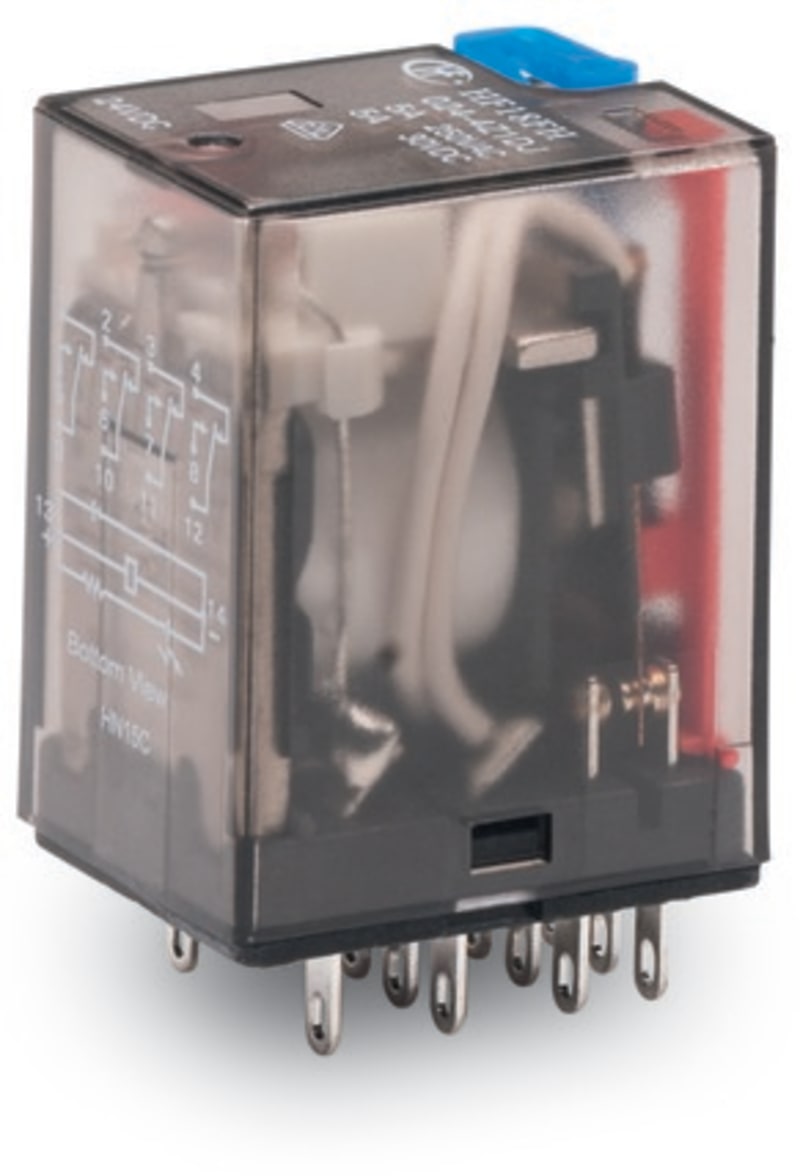

Basic relay, Nominal input voltage: 24 VDC, 4 changeover contacts, Limiting continuous current: 5 A
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 858-150 Manufacturer description: Basic relay; Nominal input voltage: 24 VDC; 4 changeover contacts; Limiting continuous current: 5 A; with manual operation; Module width: 22 mm; Module height: 35mm. Base Relay;Nominal input voltage: 24 VDC;4 changeover contacts.
Technical Specifications
- Manufacturer part number (MPN)
- 858-150
- EAN / GTIN
- 4055143531931
- Sales unit
- pcs
- Package quantity
- 3 pcs
- Dielectric strength (control/load circuit) (AC, 1 min)
- 1.5 kVrms
- Dielectric strength (open contact) (AC, 1 min)
- 1 kVrms
- Dielectric strength (load/load circuit) (AC, 1 min)
- 1.5 kVrms
- Protection type
- IP20
- Width
- 21.5 mm / 0.846 inches
- Height from the surface
- 35 mm / 1.378 inches
- Depth
- 28 mm / 1.102 inches
- Mounting type
- Pluggable module
- Weight
- 35.2 g
- Ambient temperature (operation at UN)
- -25 … +70 °C
- Ambient temperature (storage)
- -40 … +80 °C
- Standards/specifications
- EN 61810-1
- Product Group
- 6 (INTERFACE ELECTRONIC)
- PU (SPU)
- 3 pcs
- Packaging type
- box
- Country of origin
- CN
- Customs tariff number
- 85364900990
- UNSPSC
- 39,122,325
- eCl@ss 10.0
- 27-37-16-01
- eCl@ss 9.0
- 27-37-16-01
- ETIM 9.0
- EC001437
- ETIM 10.0
- EC001437
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- Voltage
- 24 V DC
- Rated current
- 5 A
- MPN
- 858-150
- Type of electric connection
- Plug-in connection
- With detachable clamps
- No
- Nominal current
- 5 A
- Rated control supply voltage DC
- 24 V
- Voltage type for actuating
- DC
- Drive, polarization
- Polarized
- Drive, switching attitude
- Mono stable
- Number of contacts as change-over contact
- 4
- With forced-guided contacts
- No
- Type of switch contact
- Single contact
- Complete with socket
- No
- With LED indication
- Yes
- Degree of protection (IP)
- IP20
- Height
- 35 mm
Standards & Compliance
- HS Code
- 8536.49
Cross References
- EAN 4055143531931
- SAP 1201001878
- Code 84340296
Product Documentation
More from WAGO
WAGO
KBL1M 4X1,5 PLUG/Plinth
771-9994/006-101
WAGO
Pre-assembled connecting cable (771-9993/007-302)
WAGO

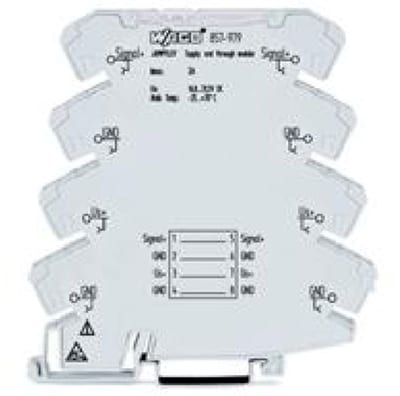

Supply and through module
857-979
WAGO
Industrial-Switch; 16 Ports 1000BASE-T; Extended temperature range; black metallic
852-1106
WAGO

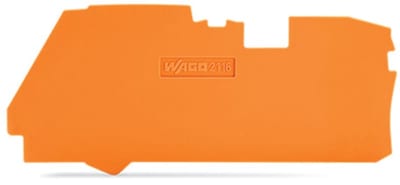

End and intermediate plate; 1 mm thick; orange (2116-1292)
WAGO

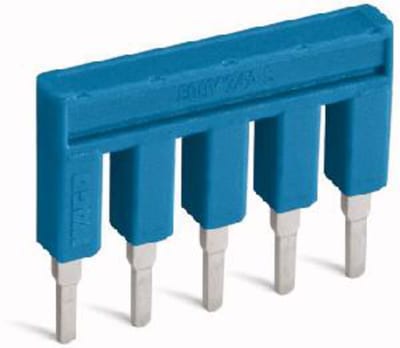

Cross-Connector 5-V 2002-405/000-006
