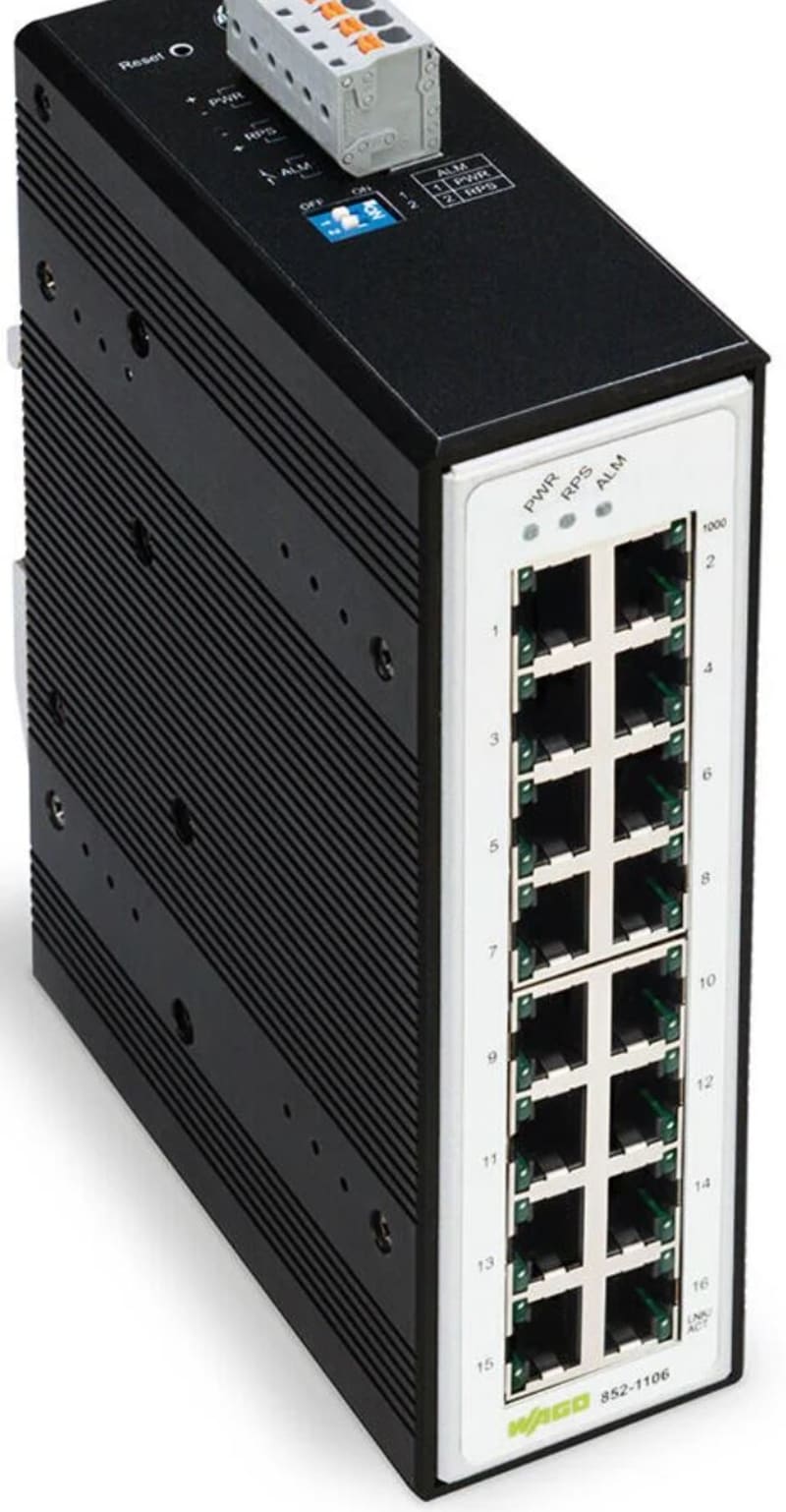

Industrial-Switch; 16 Ports 1000BASE-T; Extended temperature range; black metallic
Pricing
Request a quote
We reply within 24 hours
Overview
WAGO Industrial-Switch; 16 Ports 1000BASE-T; Extended temperature range; black metallic (part number 852-1106) is listed under Control & Automation / Ethernet Switches. HS code: 8536.90; Sales unit: pcs; Switching mode: Store-and-forward; non-blocking; Redundancy function: Redundant DC power supply; Configuration options: DIP switch for signal contact; MAC table (size): 8000 addresses.
Technical Specifications
- Manufacturer part number (MPN)
- 852-1106
- EAN / GTIN
- 4055143604659
- HS code
- 8536.90
- Sales unit
- pcs
- Switching mode
- Store-and-forward; non-blocking
- Number of 1 Gb/s ports
- 16
- Communication standards
- PROFINET Conformance Class A (CC-A) | IEEE 802.3 10BASE-T | IEEE 802.3u 100BASE-TX/FX | IEEE 802.3ab 1000BASE-T | IEEE 802.3x Flow Control | IEEE 802.3az Energy Efficient Ethernet | IEEE 802.1p Prioritization
- Redundancy function
- Redundant DC power supply
- Configuration options
- DIP switch for signal contact
- Diagnostics
- Signal contact | Alarm contact - Switching current: 0.5 A/125 VAC; 1 A/30 VDC | Alarm contact - Switching voltage (max.): 250 VAC/2 A; 220 VDC | Alarm contact - Pull-in time (max.): 6 ms | Alarm contact - Drop-out time (max.): 4 ms
- MAC table (size)
- 8000 addresses
- Jumbo frame size
- 10000. Byte
- Supply voltage
- 12 … 60 VDC; 24 VDC (DNV GL); 12, 24, 48 VDC (LR)
- Power consumption (max.)
- 12 W
- Current consumption (max.)
- 1500 mA
- Transmission rate
- Copper cable: 10/1000 Mbit/s
- Transmission medium (communication/fieldbus)
- Copper cable: Cat. 5e or higher, 100 m maximum cable length
- Topology
- Star, tree and line topology
- Control Elements
- 2 x DIP switches: alarm function for supply voltages
- Indicators
- Device: LED (PWR
- RPS) green
- Power supply (primary), redundant power supply (secondary); LED (ALM) red: Alarm; per port: LED (1000
- LNK/ACT) green
- Status 1000 Mbps, LNK/ACT ports 1 … 16
- Connection technology
- communication/fieldbus: Copper cable: 16 x RJ-45
- Connection technology
- supply: 1 x Built-in male connector: 231-436/001-000; included female connector (MCS Connectors): 2231-106/026-000
- Width
- 50 mm / 1.969 inches
- Height
- 162 mm / 6.378 inches
- Depth
- 120 mm / 4.724 inches
- Mounting type
- DIN-35 rail
- Mounting (note)
- Compass safe distance: > 40 cm
- Color
- black metallic
- Housing material
- Aluminum
- Fire load
- 0.2 MJ
- Weight
- 840 g
- Conformity marking
- CE
- Ambient temperature (operation)
- -40 … +70 °C (-25 … +70 °C (DNV GL) ; +5 … +70 °C (LR))
- Ambient temperature (storage)
- -40 … +80 °C
- Protection type
- IP30
- Pollution degree
- 2 per UL 61010
- Relative humidity (without condensation)
- 95 %
- Vibration resistance
- Per IEC 60068-2-6
- Shock resistance
- per IEC 60068-2-27
- EMC immunity to interference
- per EN 61000-6-2
- EMC emission of interference
- per EN 61000-6-4
- PU (SPU)
- 1 pcs
- Packaging type
- box
- Country of origin
- TW
- Customs tariff number
- 85176200000
- UNSPSC
- 43,222,612
- eCl@ss 10.0
- 19-17-01-30
- eCl@ss 9.0
- 19-17-01-06
- ETIM 9.0
- EC000734
- ETIM 10.0
- EC000734
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- MPN
- 852-1106
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4055143604659
- SAP 1200840875
- Code 84033094
Product Documentation
More from WAGO
WAGO
End and intermediate plate; 1 mm thick; orange (2116-1292)
WAGO
Cross-Connector 5-V 2002-405/000-006
WAGO
KBL7M 5X2,5 Plug/Open END
771-9985/207-701
WAGO
WAGO 2002-410/000-005 Transverse Jumper 10-Way Insulated Red 25 A
WAGO

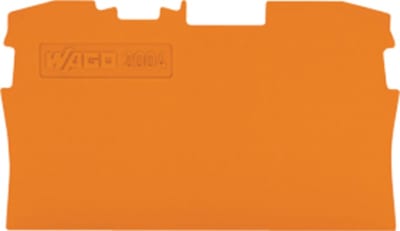

End and intermediate plate; 1 mm thick; orange (2004-1492)
WAGO

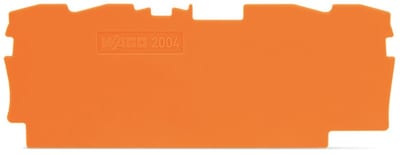

End and intermediate plate; 1 mm thick; orange (2004-1292)
WAGO
3X2,5mm 1METER Black
771-9993/007-101
WAGO

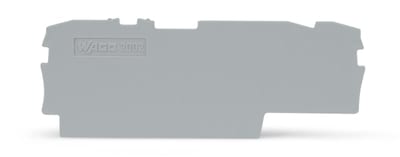

End and intermediate plate; 1 mm thick; gray (2002-1791)
