Relay module, Nominal input voltage: 24 VAC, 2 changeover contacts, Limiting continuous current: 8 A (788-512)
Part number788-512EAN / GTIN4045454424145HS code8536.49
Control & Automation
Relays & Timers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 788-512 Manufacturer description: Relay module; Nominal input voltage: 24 VAC; 2 changeover contacts; Limiting continuous current: 8 A; Red status indicator; Module width: 15 mm; 2,50 mm²; gray. Relay Module;Nominal input voltage: 24 VAC;2 changeover contacts;grey.
Technical Specifications
- Manufacturer part number (MPN)
- 788-512
- EAN / GTIN
- 4045454424145
- Sales unit
- pcs
- Note
- Reinforced insulation between coil and contacts | To protect the relay coils and contacts, inductive loads must be dampened with an effective protection circuit.
- Rated Voltage
- 250 V
- Rated impulse withstand voltage
- 4 kV
- Pollution degree
- 3
- Dielectric strength (control/load circuit) (AC, 1 min)
- 5 kVrms
- Dielectric strength (open contact) (AC, 1 min)
- 1 kVrms
- Dielectric strength (load/load circuit) (AC, 1 min)
- 2.5 kVrms
- Protection type
- IP20
- Connection technology
- Push-in CAGE CLAMP®
- Solid conductor
- 0.34 … 2.5 mm² / 22 … 14 AWG
- Fine-stranded conductor
- 0.34 … 2.5 mm² / 22 … 14 AWG
- Strip length
- 9 … 10 mm / 0.35 … 0.39 inches
- Width
- 15 mm / 0.591 inches
- Height
- 86 mm / 3.386 inches
- Depth from upper-edge of DIN-rail
- 54 mm / 2.126 inches
- Mounting type
- DIN-35 rail
- Color
- gray
- Fire load
- 0.827 MJ
- Weight
- 47.7 g
- Ambient temperature (operation at UN)
- -40 … +70 °C
- Ambient temperature UL (operation at UN)
- -40 … +50 °C
- Ambient temperature (storage)
- -40 … +70 °C
- Processing temperature
- -25 … +50 °C
- Temperature range of connection cable
- ≥ (Tambient + 20 K)
- Standards/specifications
- EN 61010-2-201 | EN 61810-1 | EN 61373 | UL 508 | DNV
- WAGO Basic Relay
- 788-172
- Product Group
- 6 (INTERFACE ELECTRONIC)
- PU (SPU)
- 20 (1) pcs
- Packaging type
- box
- Country of origin
- CN
- Customs tariff number
- 85364900990
- UNSPSC
- 39,122,334
- eCl@ss 10.0
- 27-37-16-01
- eCl@ss 9.0
- 27-37-16-01
- ETIM 9.0
- EC001437
- ETIM 10.0
- EC001437
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- SCIP notification number (Austria)
- 138854ad-fe25-40cb-90a6-6e03e8a47315
- SCIP notification number (Belgium)
- 733aa775-f570-4d09-ad68-ef1ea76c9646
- SCIP notification number (Bulgaria)
- 8b0d87ac-0253-4ae9-9bfe-a545e33a5038
- SCIP notification number (Czech Republic)
- b28923b9-133d-424a-ab3a-400ab993b523
- SCIP notification number (Denmark)
- b0ba3e53-ba13-49bd-b9f7-d98e9def9abb
- SCIP notification number (Finland)
- e415852b-a4d9-4256-89b1-636210ee94d8
- SCIP notification number (France)
- bf734a02-23de-4d22-af63-38adb4107345
- SCIP notification number (Germany)
- 928cccb2-9eab-42dc-93f3-fa95ed01dd6b
- SCIP notification number (Hungary)
- aabaecf4-dd9e-4499-94f4-821b28e59063
- SCIP notification number (Italy)
- d603cc10-32d1-40f1-b9e8-f376b886193e
- SCIP notification number (Netherlands)
- 7a182fff-b4a9-49ea-aa50-d1d07858cbc4
- SCIP notification number (Poland)
- 76aa8fd7-5246-4d81-9aed-aa200ebb1263
- SCIP notification number (Romania)
- f02f98e7-ea07-437b-b54e-6387f376f32a
- SCIP notification number (Sweden)
- eae4bed4-3343-4140-a849-3bd0a71e4818
- Rated current
- 8 A
- MPN
- 788-512
- Type of electric connection
- Spring clamp connection
- With detachable clamps
- No
- Nominal current
- 8 A
- Rated control supply voltage AC 50 Hz
- 24 V
- Rated control supply voltage AC 60 Hz
- 24 V
- Rated control supply voltage DC
- 24 V
- Voltage type for actuating
- AC
- Drive, polarization
- Polarity free
- Drive, switching attitude
- Mono stable
- Number of contacts as change-over contact
- 2
- With forced-guided contacts
- No
- Type of switch contact
- Single contact
- Complete with socket
- Yes
- With LED indication
- Yes
- Material of contact surface
- Silver
- Material contact
- Nickel
- Degree of protection (IP)
- IP20
- Depth
- 54 mm
Standards & Compliance
- HS Code
- 8536.49
Cross References
- EAN 4045454424145
- SAP 1000263697
- Code 8217353
Product Documentation
Document preview: Relay module, Nominal input voltage: 24 VAC, 2 changeover contacts, Limiting continuous current: 8 A (788-512) — Specification sheet
More from WAGO
WAGO
KBL7M 5X1,5 Plinth/OPEN END
771-9985/106-701
WAGO

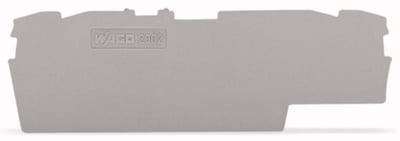

End and intermediate plate; 1 mm thick; gray (2002-1891)
WAGO
End and intermediate plate; 1 mm thick; orange (2004-1392)
WAGO

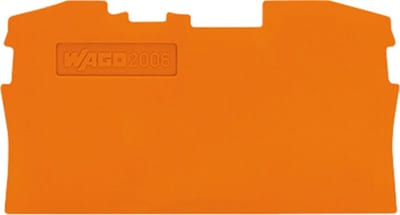

End and intermediate plate; 1 mm thick; orange (2006-1292)
