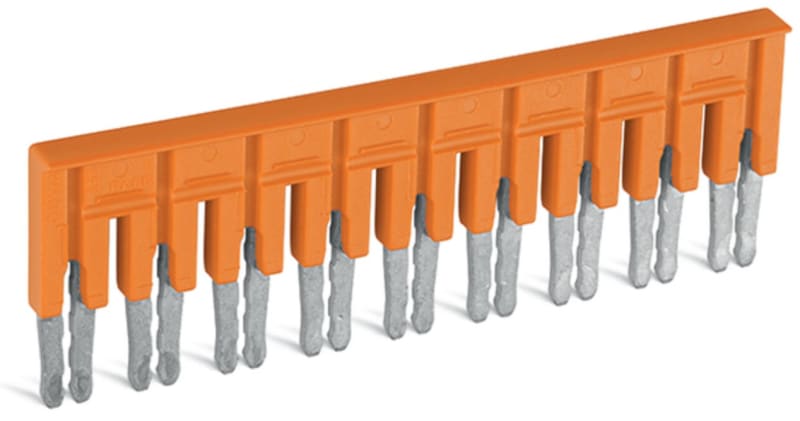

Jumper; 9-Way; insulated; orange
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 282-439 Manufacturer description: Jumper; 9-way; insulated; orange. Jumper link; 9-way; insulated; orange.
Technical Specifications
- Manufacturer part number (MPN)
- 282-439
- EAN / GTIN
- 4044918754705
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Rated current
- 30 A
- Color
- orange
- Material group
- I
- Insulation material (main housing)
- Polyamide (PA66)
- Flammability class per UL94
- V0
- Fire load
- 0.055 MJ
- Weight
- 11 g
- Product Group
- 1 (Rail Mounted Terminal Blocks)
- PU (SPU)
- 50 (10) pcs
- Packaging type
- Box
- Country of origin
- DE
- Customs tariff number
- 85366990990
- UNSPSC
- 39,121,421
- eCl@ss 10.0
- 27-14-11-40
- eCl@ss 9.0
- 27-14-11-40
- ETIM 9.0
- EC000489
- ETIM 10.0
- EC000489
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- Processing temperature (min.)
- -35. °C
- Processing temperature (max.)
- 85. °C
- Processing temperature
- -35 … +85 °C
- Continuous operating temperature from
- -60 °C
- Continuous operating temperature up to
- 105 °C
- Continuous operating temperature
- -60 … +105 °C
- MPN
- 282-439
- Mounting method
- Pluggable
- Colour
- Orange
- Model
- Wire commoning chain
- Insulated
- Yes
- Rated voltage
- 500 V
- Modular spacing
- 8 mm
- Number of bridged clamps
- 9
- With contact protection
- Yes
- Rated current In
- 30 A
- Explosion-tested version 'Ex e'
- No
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 4044918754705
- SAP 1201001871
- Code 84345686
Product Documentation
