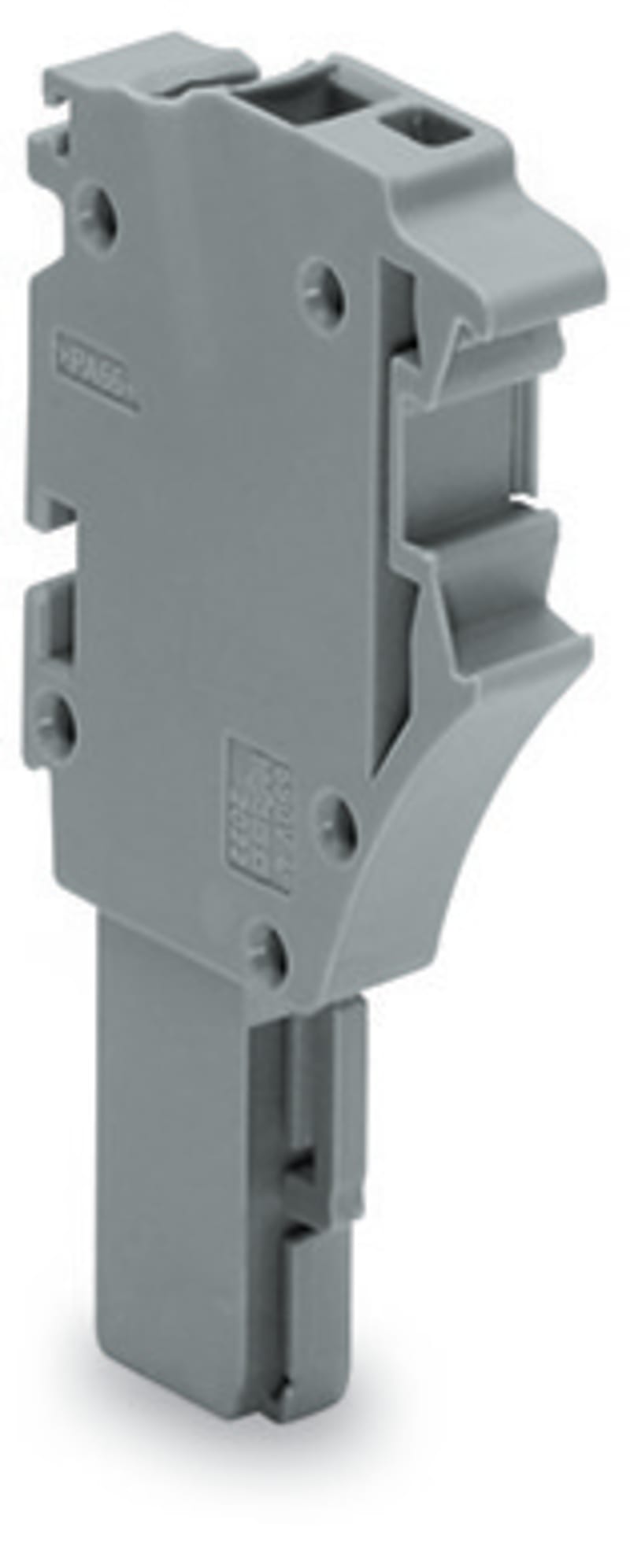

1-Conductor female connector; Push-in CAGE CLAMP®; 4 mm²; Pin spacing 5.2 mm; 2-Pole; 4,00 mm²; gray
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 2022-102 Manufacturer description: 1-conductor female connector; Push-in CAGE CLAMP®; 4 mm²; Pin spacing 5.2 mm; 2-pole; 4,00 mm²; gray. 1-conductor hunnkopling;Push-in CAGE CLAMP®;4 mm²;grey.
Technical Specifications
- Manufacturer part number (MPN)
- 2022-102
- EAN / GTIN
- 4050821242741
- Sales unit
- pcs
- Package quantity
- 200 pcs
- Clamping units
- 2
- Total number of potentials
- 2
- Width
- 10.4 mm / 0.409 inches
- Height
- 40.5 mm / 1.594 inches
- Depth
- 22.4 mm / 0.882 inches
- Module width
- 5.2 mm / 0.205 inches
- Variable coding
- Yes
- Marking level
- Side marking
- Anti-rotation protection
- Yes
- Contact type (pluggable connector)
- Female connector/socket
- Connector (connection type)
- for conductor
- Mismating protection
- No
- Plugging without loss of pin spacing
- Yes
- Color
- gray
- Material group
- I
- Insulation material (main housing)
- Polyamide (PA66)
- Flammability class per UL94
- V0
- Fire load
- 0.115 MJ
- Weight
- 7 g
- Processing temperature
- -35 … +85 °C
- Continuous operating temperature
- -60 … +105 °C
- PU (SPU)
- 200 pcs
- Packaging type
- Box
- Country of origin
- CN
- Customs tariff number
- 85366990990
- UNSPSC
- 39,121,409
- eCl@ss 10.0
- 27-14-11-06
- eCl@ss 9.0
- 27-14-11-06
- ETIM 9.0
- EC001284
- ETIM 10.0
- EC001284
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- Number of poles
- 2P
- EAN
- 4066966668094
- MPN
- 2022-102
- Colour
- Grey
- Halogen free
- Yes
- Rated voltage
- 690 V
- Operating temperature
- 105 °C
- Number of clamp positions per pole
- 1
- Closing plate required
- No
- Type of electrical connection 1
- Spring clamp connection
- Type of electrical connection 2
- Spring clamp connection
- Transparent
- No
- Connectable conductor cross section solid-core
- 0.75–4 mm²
- Connectable conductor cross section multi-wired
- 0.25–2.5 mm²
- Material insulation body
- Thermoplastic
- Rated current In
- 24 A
- Explosion-tested version 'Ex e'
- No
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 4050821242741
- SAP 1201001866
- Code 84340299
Product Documentation
