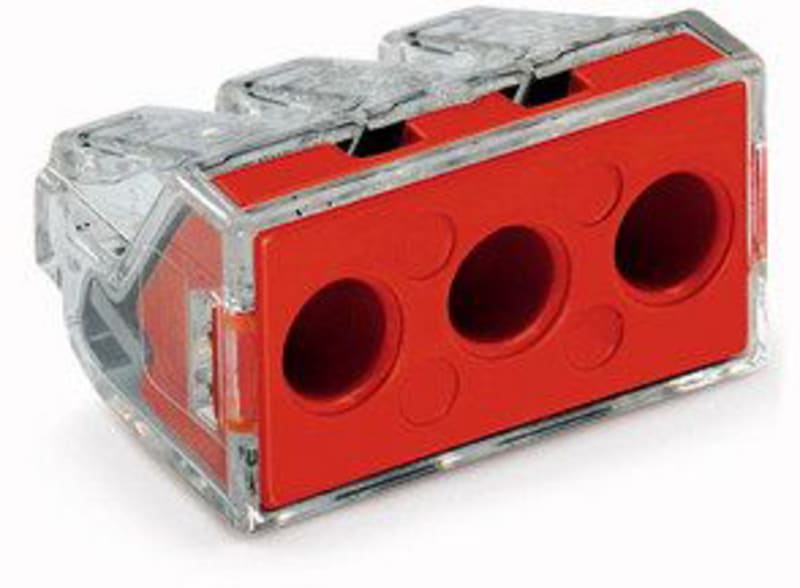

PUSH WIRE® connector for junction boxes, for solid and stranded conductors, max. 6 mm², 3-Conductor
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 773-173 Manufacturer description: PUSH WIRE® connector for junction boxes; for solid and stranded conductors; max. 6 mm²; 3-conductor; transparent housing; red cover; Surrounding air temperature: max 60°C; 6,00 mm²; transparent. Instikklemme 6mm² 3 conductor.
Technical Specifications
- Manufacturer part number (MPN)
- 773-173
- EAN / GTIN
- 4050821215141
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Clamping units
- 3
- Total number of potentials
- 1
- Width
- 25.6 mm / 1.008 inches
- Height
- 14.2 mm / 0.559 inches
- Depth
- 20.1 mm / 0.791 inches
- Color
- transparent
- Cover color
- red
- Material group
- IIIa
- Insulation material (main housing)
- Polycarbonate (PC)
- Flammability class per UL94
- V2
- Clamping spring material
- Chrome-nickel spring steel (CrNi)
- Contact material
- Electrolytic copper (ECu)
- Contact Plating
- Tin
- Fire load
- 0.108 MJ
- Weight
- 5.8 g
- Ambient temperature (operation)
- +60 °C
- Continuous operating temperature
- 105 °C
- PU (SPU)
- 500 (50) pcs
- Packaging type
- box
- Country of origin
- CN
- Customs tariff number
- 85369010000
- UNSPSC
- 39,121,409
- eCl@ss 10.0
- 27-14-11-04
- eCl@ss 9.0
- 27-14-11-04
- ETIM 9.0
- EC000446
- ETIM 10.0
- EC000446
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- Conductor cross-section
- 6 mm²
- MPN
- 773-173
- Nominal current
- 41 A
- Nominal voltage
- 400 V
- Colour
- Colourless
- Number of clamp positions
- 3
- Suitable for solid conductors
- Yes
- Conductor cross section solid (solid, stranded)
- 2.5–6 mm²
- AWG-range
- 10–14
- Nominal cross section
- 2.5–6 mm²
- Suitable for multi-wire conductors
- Yes
- Suitable for flexible conductors
- No
- Transparent
- Yes
- With operation lever
- No
- Min. AWG-size
- 14
- Max. AWG-size
- 10
- Type of locking/unlocking
- None
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4050821215141
- SAP 1000051999
- Code 8535218
