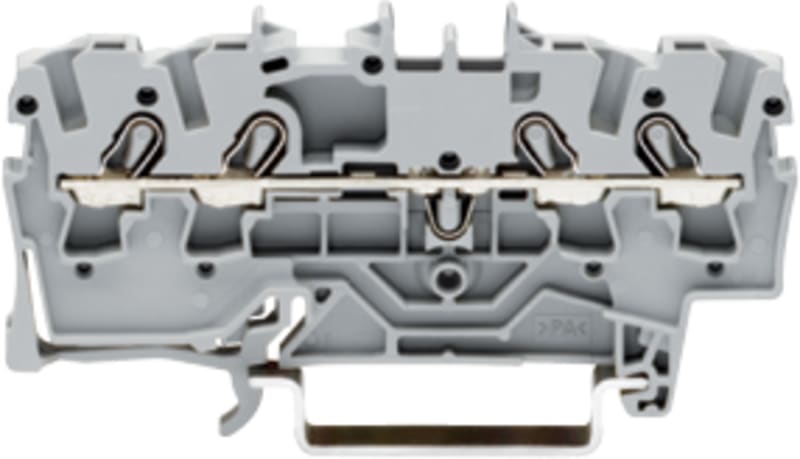

4-Conductor through terminal block, 2.5 mm², for DIN-rail 35 x 15 and 35 x 7.5 (2002-1401)
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 2002-1401 Manufacturer description: 4-conductor through terminal block; 2.5 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm²; gray. Terminal Block 4 conductor Grey, 2,5mm².
Technical Specifications
- Manufacturer part number (MPN)
- 2002-1401
- EAN / GTIN
- 4017332999281
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Clamping units
- 4
- Total number of potentials
- 1
- Number of levels
- 1
- Number of jumper slots
- 2
- Width
- 5.2 mm / 0.205 inches
- Height
- 69.9 mm / 2.752 inches
- Depth from upper-edge of DIN-rail
- 32.9 mm / 1.295 inches
- Depth
- 39.5 mm / 1.555 inches
- Mounting type
- DIN-35 rail
- Marking level
- Center/side marking
- Color
- gray
- Material group
- I
- Insulation material (main housing)
- Polyamide (PA66)
- Flammability class per UL94
- V0
- Fire load
- 0.137 MJ
- Weight
- 7.6 g
- Processing temperature
- -35 … +85 °C
- Continuous operating temperature
- -60 … +105 °C
- Product Group
- 22 (TOPJOB S)
- PU (SPU)
- 100 pcs
- Packaging type
- box
- Country of origin
- DE
- Customs tariff number
- 85369010000
- UNSPSC
- 39,121,410
- eCl@ss 10.0
- 27-14-11-20
- eCl@ss 9.0
- 27-14-11-20
- ETIM 9.0
- EC000897
- ETIM 10.0
- EC000897
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- Conductor cross-section
- 2.5 mm²
- MPN
- 2002-1401
- Connectable conductor cross section solid-core
- 0.75–4 mm²
- Connectable conductor cross section multi-wired
- 0.25–2.5 mm²
- Rated current In
- 24 A
- Rated voltage
- 800 V
- Type of electrical connection 1
- Spring clamp connection
- Type of electrical connection 2
- Spring clamp connection
- Connection position
- Atop
- Number of clamp positions per level
- 4
- Mounting method
- DIN rail (top hat rail) 35 mm
- Material insulation body
- Thermoplastic
- Operating temperature
- 105 °C
- Width/grid dimension
- 5.2 mm
- Length
- 69.9 mm
- Explosion-tested version 'Ex e'
- Yes
- Closing plate required
- Yes
- Colour
- Grey
- Internally connected stages
- No
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4017332999281
- SAP 1000054574
- Code 8841735
Product Documentation
More from WAGO
WAGO
Gel box, 221 Series, max. 4 mm² connectors, Size 1
207-1372
WAGO
T-distribution connector, 3-Pole, 1 input, 2 outputs, 3 locking levers
770-615
WAGO
T-distribution connector; 3-Pole; Cod. A; 1 input; 2 outputs; 2 locking levers; black
770-606
WAGO
Double-deck terminal block, for DIN-rail 35 x 15 and 35 x 7.5, 2.5 mm² (870-501)
WAGO
3-Conductor ground terminal block, 10 mm², for DIN-rail 35 x 15 and 35 x 7.5
2010-1307
WAGO
Stripping knife; for flat cable 5 x 16 mm
897-952
WAGO
End and intermediate plate; 1 mm thick; gray (2016-1291)
WAGO
3-Way distribution connector; 3-Pole; Cod. A; 1 input; 3 outputs; black
770-607
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 2002-1401?
- 2002-1401 can be ordered from cballast.com as a WAGO catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this WAGO product?
- The manufacturer part number is 2002-1401.
- What is the HS code for 2002-1401?
- The customs tariff (HS) code for 2002-1401 is 8536.90.
- Who manufactures 2002-1401?
- 2002-1401 is a WAGO product in the Electrical Components range.
- Is a datasheet available for 2002-1401?
- Yes — the 2002-1401 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 2002-1401?
- The minimum order quantity is 1.
- Is 2002-1401 available?
- Yes — 2002-1401 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
