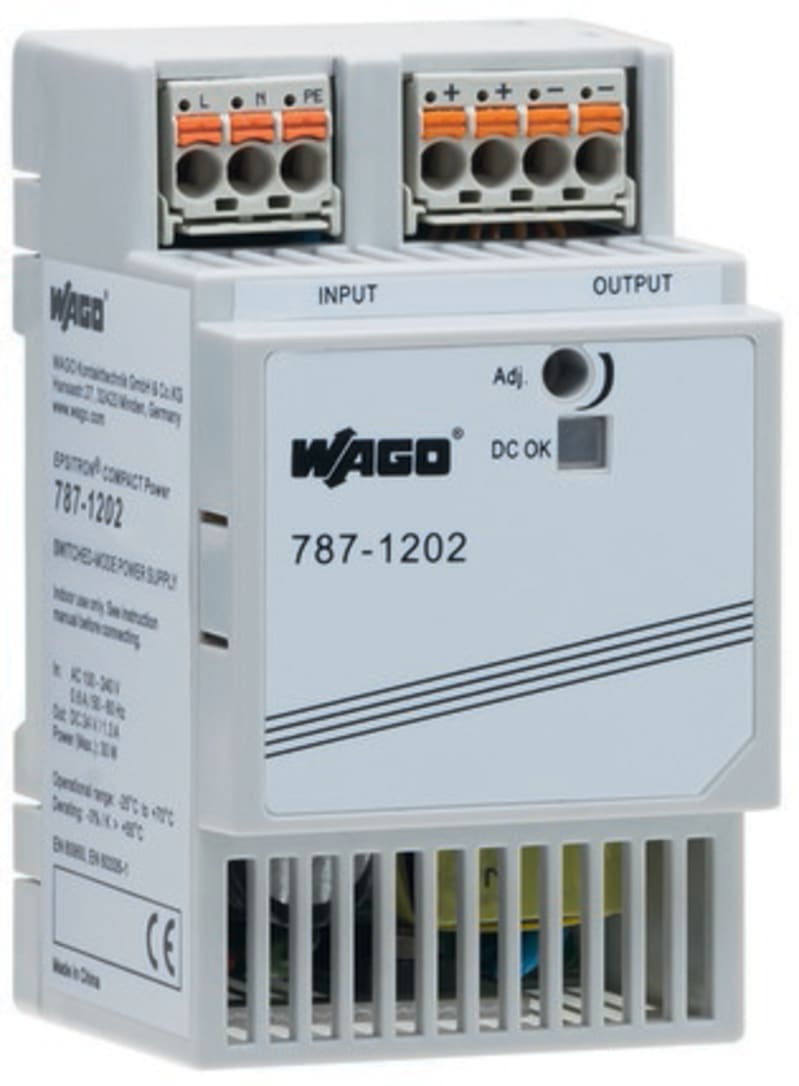

Switched-mode power supply; Compact; 1-Phase; 24 VDC output voltage; 1.3 A output current; DC-OK LED
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 787-1202 Manufacturer description: Switched-mode power supply; Compact; 1-phase; 24 VDC output voltage; 1.3 A output current; DC-OK LED. WAGO Power supply 230VAC/24VDC, 1,3A.
Technical Specifications
- Manufacturer part number (MPN)
- 787-1202
- EAN / GTIN
- 4055143415071
- Sales unit
- pcs
- Isolation voltage (pri.-sec.)
- 4.242 kVDC
- Protection class
- I
- Protection type
- IP20; per EN 60529
- Resistance to reverse feed
- ≤ 35 VDC
- Pollution degree
- 2
- Transient suppression (primary)
- Varistor
- Overvoltage protection; secondary
- ≤ 31 VDC (in the event of a fault)
- Short-circuit-protected
- Yes
- Open-circuit-proof
- Yes
- Parallel operation
- Yes
- Series operation
- Yes
- MTBF
- > 700,000 h (per IEC 61709)
- Width
- 54 mm / 2.126 inches
- Height
- 90 mm / 3.543 inches
- Depth
- 56 mm / 2.205 inches
- Depth from upper-edge of DIN-rail
- 52.5 mm / 2.067 inches
- Housing design
- DIN-rail-mount enclosure
- Mounting type
- DIN-35 rail | Screw mount (back/side)
- Flammability class per UL94
- V0
- Weight
- 239.3 g
- Ambient temperature (operation)
- -25 … +70 °C
- Ambient temperature (storage)
- -40 … +85 °C
- Relative humidity
- ≤ 95 % (no condensation permissible)
- Derating
- -2.66 %/K (> 55 °C)
- Climatic category
- 3K3 (per EN 60721; except for low air pressure)
- Conformity marking
- CE
- Standards/specifications
- EN 61204-3 | EN 60335-1 | EN 62368-1 | UL 60950-1 | UL 508
- PU (SPU)
- 1 pcs
- Packaging type
- box
- Country of origin
- CN
- Customs tariff number
- 85044083900
- UNSPSC
- 39,121,004
- eCl@ss 10.0
- 27-04-07-01
- eCl@ss 9.0
- 27-04-07-01
- ETIM 9.0
- EC002540
- ETIM 10.0
- EC002540
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- SCIP notification number (Bulgaria)
- 4da49159-bd5d-44a9-b5c2-9ad5ff633f38
- SCIP notification number (Czech Republic)
- 6304604f-d1fd-48e3-9bdc-aac6d5042e4e
- EAN
- 4055143907866
- MPN
- 787-1202
- Voltage type (supply voltage)
- AC/DC
- 1st secondary output voltage
- 22–26 V
- Max. output current 1
- 1.3 A
- Secondary voltage adjustable
- Yes
- Nominal value output voltage 1
- 24 V
- Nominal value output current 1
- 1.3 A
- Short-circuit-proof
- Yes
- Rated supply voltage AC 50 Hz
- 85–264 V
- Rated supply voltage AC 60 Hz
- 85–264 V
- Rated supply voltage DC
- 125–375 V
- Output voltage stabilized
- Yes
- Power output
- 31.2 W
- Stabilized
- Yes
- Type of electric connection
- Spring clamp connection
- Suitable for rail mounting
- Yes
- Wall mounting possible
- Yes
- Suitable for distribution board
- No
- Width in number of modular spacings
- 3
- Direct mounting possible
- No
- Suitable for safety functions
- No
- Degree of protection (IP)
- IP20
- Suitable for wall mounting
- No
