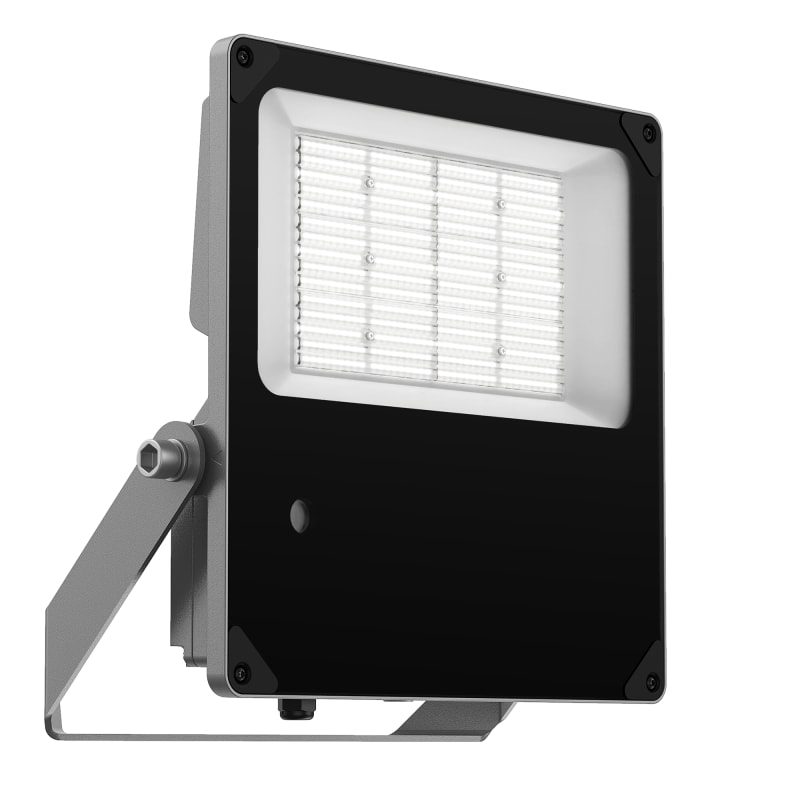

Switch Marina 150W 22500LM 3CCT

Unilamp 3241953 Switch Marina 150W 22500lm 3CCT.

Manufacturer part number (MPN)

3241953

HS code

8536.90

Sales unit

pcs

Package quantity

3 pcs

Power

150 W

Mounting method

Wall bracket

Protection class according to IEC 61140

I

Width

341 mm

Lamp holder

None

Conductor cross section

2.5 mm²

Housing colour

Grey

Dimmable

No

Surface protection

Powder coating

Voltage type

AC

With movement sensor

No

Suitable for lamp power

150 W

Type of control gear

LED operating device current-controlled

Colour rendering index CRI

80-89

Cable length

1.5 m

With light sensor

Yes

Number of poles

3

Length

341 mm

Height/depth

61 mm

Housing material

Aluminium

Lamp type

LED not exchangeable

Material cover

Glass transparent

Impact strength

IK08

Nominal voltage

230–240 V

Degree of protection (IP)

IP66

With light source

Yes

Suitable for number of light sources

1

With control gear

Yes

Adjustable optics

No

Connectable conductor cross section

0.75–2.5 mm²

Nominal current

180–300 mA

Colour temperature

2200–4000 K

Max. system power

150 W

Colour of light

White

Type of wiring

Suitable for loop-through wiring

Rated lifetime L70/B50 at 25 °C

110000 h

Colour consistency (McAdam ellipse)

SDCM3

Rated ambient temperature according to IEC 62722-2-1

-30–50 °C

Dimming 0-10 V

No

Dimming 1-10 V

No

Dimming DALI

No

Dimming DMX

No

Dimming LineSwitch

No

Dimming manufacturer's proprietary system

No

Dimming mains voltage modulation

No

Dimming phase cut-off (trailing edge)

No

Dimming phase cut-on (leading edge)

No

Dimming programmable

No

Dimming RF

No

Dimming Sine Wave Reduction

No

Dimming Zigbee

No

Light distributor

Focal lens

Dimming DSI

No

Operation by Bluetooth

No

Dimming DALI-2

No

Dimming D4i

No

Rated luminous flux according to IEC 62722-2- 1

22500 lm

Power factor

0.9

Country of origin

China

HS Code

8536.90

• 7072125134703
