Unilamp

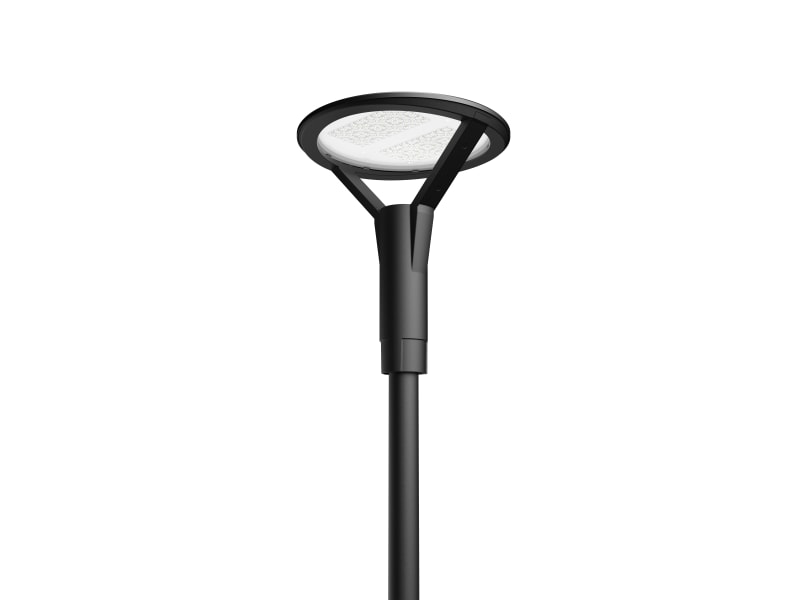

Lotus C450 30W 3300LM 3000K 5M cable Symmetric
Part number3109720EAN / GTIN7072125121550HS code8544.42
Lighting & Electrical Accessories
Outdoor & Street Lighting
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Unilamp 3109720 Lotus is a series mast-luminaires for lighting of parker, gangveier, parkering etc. Breeam-approved.
Technical Specifications
- Manufacturer part number (MPN)
- 3109720
- EAN / GTIN
- 7072125121550
- HS code
- 8544.42
- Sales unit
- pcs
- Power
- 30 W
- Mounting method
- Post top
- Protection class according to IEC 61140
- I
- Width
- 450 mm
- Conductor cross section
- 2.5 mm²
- Connection type
- Push-in clamp
- Housing colour
- Black
- Surface protection
- Powder coating
- Voltage type
- AC
- Type of control gear
- LED operating device current-controlled
- Colour rendering index CRI
- 80-89
- Cable length
- 5 m
- Diameter
- 450 mm
- With light sensor
- No
- Number of poles
- 3
- Height/depth
- 526 mm
- Housing material
- Aluminium
- Lamp type
- LED not exchangeable
- Impact strength
- IK08
- With connection cable
- Yes
- Degree of protection (IP)
- IP66
- With light source
- Yes
- Suitable for number of light sources
- 1
- With control gear
- Yes
- Adjustable optics
- No
- Max. system power
- 30 W
- Rated luminous flux according to IEC 62722-2-1
- 3300 lm
- Colour of light
- White
- Remote control
- None
- With radio control
- No
- With light regulation program control
- No
- Constant light output (CLO)
- No
- IFTTT support available
- No
- Type of wiring
- Ending
- Rated lifetime L70/B50 at 25 °C
- 110000 h
- Colour consistency (McAdam ellipse)
- SDCM3
- Dimming 0-10 V
- No
- Dimming 1-10 V
- No
- Dimming DALI
- No
- Dimming DMX
- No
- Dimming potentiometer (integrated)
- No
- Dimming LineSwitch
- No
- Dimming manufacturer's proprietary system
- No
- Dimming mains voltage modulation
- No
- Dimming phase cut-off (trailing edge)
- No
- Dimming phase cut-on (leading edge)
- No
- Dimming programmable
- No
- Dimming RF
- No
- Dimming Its Wave Reduction
- No
- Dimming Touch and Dim
- No
- Dimming Zigbee
- No
- Dimming with push-button
- No
- No dim function
- Yes
- Light distributor
- Refractor lens
- Luminaire efficacy
- 110 lm/W
- Dimming DSI
- No
- Operation by Bluetooth
- No
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Exchangeable control gear
- No
- Power factor
- 0.86
- Country of origin
- China
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 7072125121550
- SAP 1200938876
- Code 84228821
Product Documentation
Document preview: Lotus C450 30W 3300LM 3000K 5M cable Symmetric (3109720) — Specification sheet
