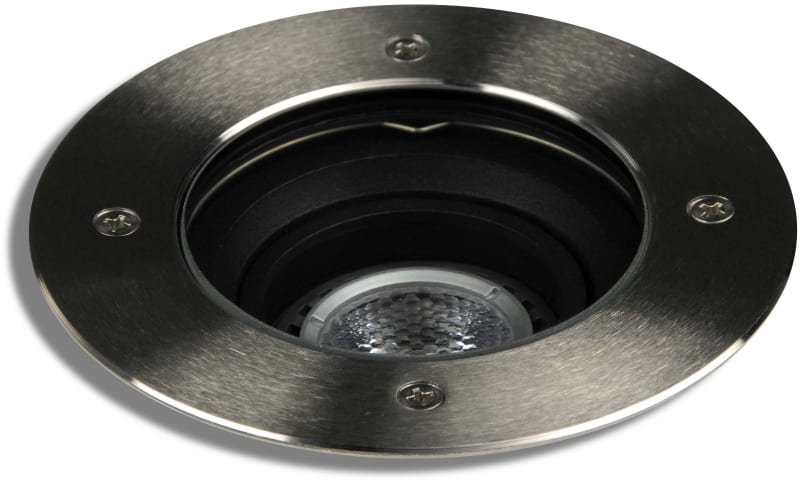

ZET1 Round 6,5W 420LM GU10 IP67 Steel
Pricing
Request a quote
We reply within 24 hours
Product Description
Unilamp 3109261 Solid Uplight in brushed stainless steel for nedfelling in die or in floor.
Technical Specifications
- Manufacturer part number (MPN)
- 3109261
- EAN / GTIN
- 7072125100494
- Sales unit
- pcs
- Package quantity
- 10 pcs
- IP rating
- IP67
- Power
- 6.5 W
- Protection class according to IEC 61140
- I
- Outer diameter
- 129 mm
- Lamp holder
- GU10
- Conductor cross section
- 1.5 mm²
- Connection type
- Screwed terminal
- Housing colour
- Stainless steel
- Voltage type
- AC
- Type of control gear
- Not required
- Adjustable
- No
- Colour rendering index CRI
- 90-100
- Built-in diameter
- 108 mm
- Number of poles
- 3
- Height/depth
- 173 mm
- Housing material
- Stainless steel
- Lamp type
- LED exchangeable
- Electrical connection with connector system
- No
- Light distribution
- Symmetric
- Material cover
- Glass transparent
- Impact strength
- IK10
- Over rollable
- Yes
- Degree of protection (IP)
- IP67
- With light source
- Yes
- Max. load
- 1000 kg
- Suitable for number of light sources
- 1
- With control gear
- No
- Beam angle
- 21-40° - Medium beam
- Max. system power
- 6.5 W
- Rated luminous flux according to IEC 62722-2-1
- 420 lm
- Colour of light
- White
- Type of wiring
- Ending
- Rated lifetime L70/B50 at 25 °C
- 50000 h
- Dimming 0-10 V
- No
- Dimming 1-10 V
- No
- Dimming DALI
- No
- Dimming DMX
- No
- Dimming potentiometer (integrated)
- No
- Dimming LineSwitch
- No
- Dimming manufacturer's proprietary system
- No
- Dimming mains voltage modulation
- No
- Dimming phase cut-off (trailing edge)
- Yes
- Dimming phase cut-on (leading edge)
- Yes
- Dimming programmable
- No
- Dimming RF
- No
- Dimming Its Wave Reduction
- No
- Dimming Touch and Dim
- No
- Dimming Zigbee
- No
- Dimming with push-button
- No
- No dim function
- No
- Light distributor
- None
- Dimming DSI
- No
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Colour of light adjustable
- No
- Luminous flux adjustable
- Continuously variable
- Beam angle adjustable
- No
- Exchangeable control gear
- No
- Built-in height/depth
- 173 mm
- Power factor
- 0.9
- Country of origin
- Thailand
Standards & Compliance
- HS Code
- 9405.41
Cross References
- EAN 7072125100494
- SAP 1200938867
- Code 84228261
Product Documentation
More from Unilamp
Unilamp
Unilamp 3229553 FlexiLink LED Batten 970 mm, 15 W, 900 lm, 2700 K
Unilamp
Unilamp FlexiLink 270 mm LED Luminaire 5 W 300 lm 2700 K
3229551
Unilamp
Lotus B900 Bollard 14W 1100LM 3K socket
3105846
Unilamp

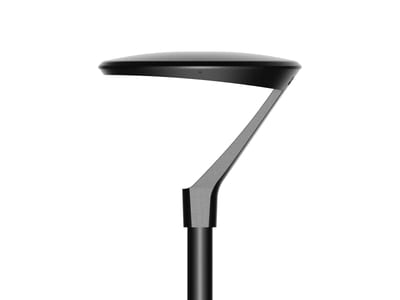

Lotus A475 25W 3000LM 3000K 5M cable Asy
3109725
Unilamp

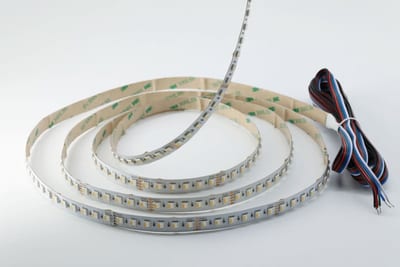

Unilamp 3204111 MultiStrip RGBW LED Strip 14.4 W/m, 718 lm/m, IP65, 5 m
Unilamp

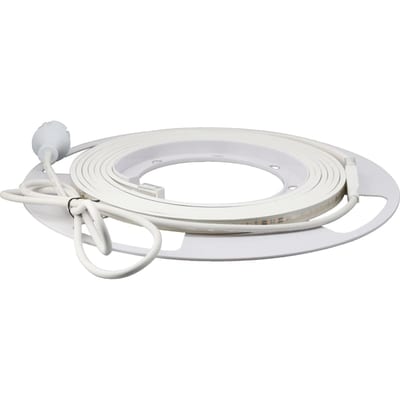

HiStrip 230V 8W/m 2700K IP65 10M.
3241930
Unilamp

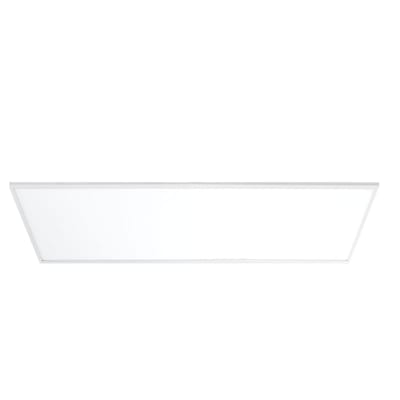

Square BL R300X600 2150LM 3/4K OP without driv
3323850
Unilamp

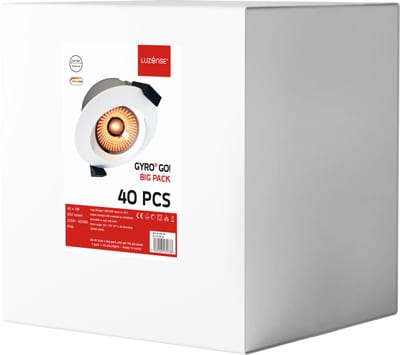

Gyro Go! Eco 40-Pack WarmDim White
