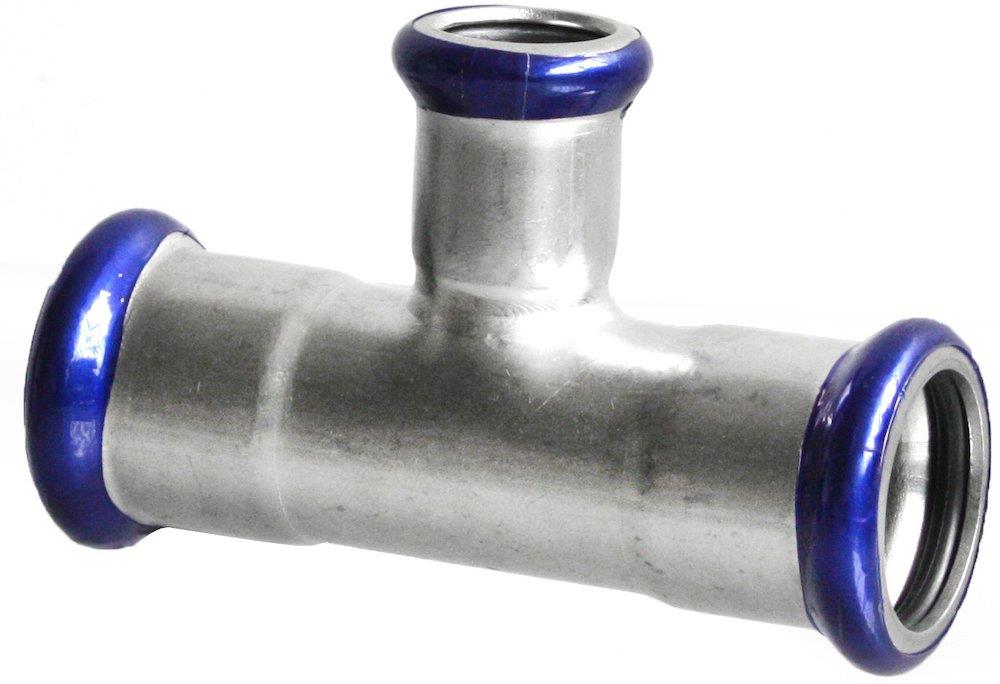

Unico SF Press T-Piece with reduced branch - 35mm, 35mm, 15mm, 3PCS

Unico SF Press T-Piece with reduced branch. T-pieces (Plumbing / Press fittings and pipes / Unico stainless/acid-resistant). Principal data: pipe dimension 1 35 mm, pipe dimension 2 35 mm, dimension on branch 15 mm, number of pressure sleeves 3 pcs. Supplied under manufacturer part number S41CG-LBP, EAN 5707234040875, HS code 7307.22, country of origin Italy.

Product type

T-pieces Product group: Press fittings and pipes Pipe dimension 1: 35 mm Pipe dimension 2: 35 mm Dimension on branch: 15 mm Number of pressure sleeves: 3 pcs material: Stainless/acid-resistant O ring: EPDM - leaks if not pressed Operating temperature: -20 to +85 °C Operating pressure max: 16 bar Temperature max: 120 °C Restriction: Not approved for gas Press end type: 3 sockets Press jaw: M-15 / M-35 Jointing system: Press L dimension: 101 mm L1 dimension: 44 mm I dimension: 50 mm D dimension: 35 mm D1 dimension: 15 mm Z dimension: 23 mm Z1 dimension: 23 mm REACH SVHC substance above 0.1%: None Carbon footprint (EPD): 0.6580 kg CO2e per pcs Environmental declaration: EPD third-party verified Country of origin: Italy Customs tariff code (EU CN): 73072210 HS code: 7307.22 Manufacturer part number: S41CG-LBP GTIN (EAN): 5707234040875 VVS number: 034870365

HS Code

7307.22

• MPN S41CG-LBP
• EAN 5707234040875
• VVS 034870365
