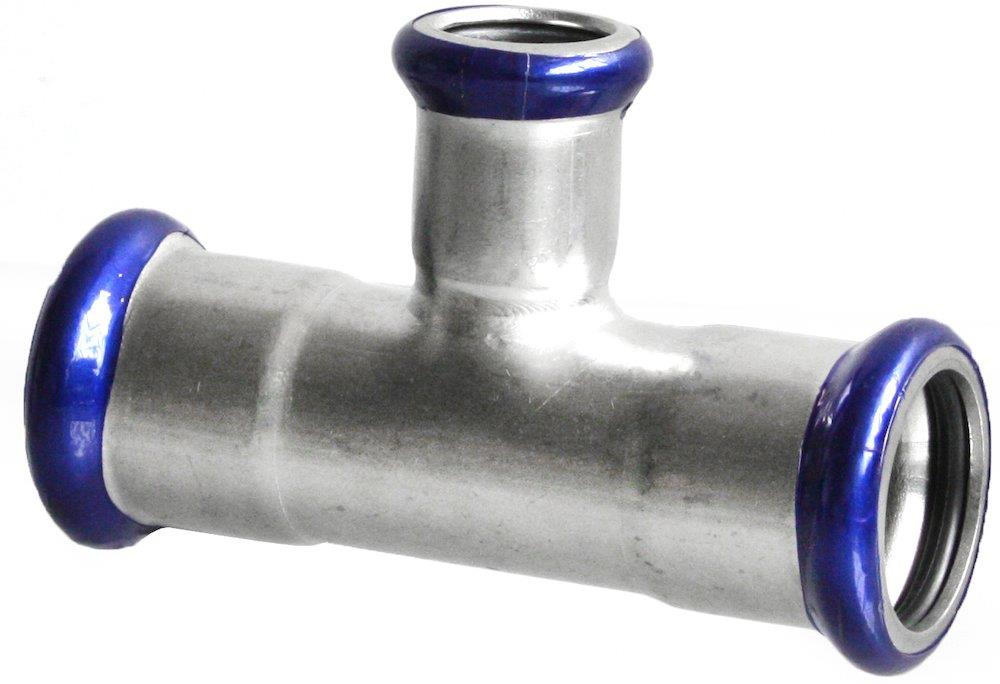

Unico SF Press T-Piece with reduced branch - 28mm, 28mm, 22mm, 3PCS

Unico SF Press T-Piece with reduced branch. T-pieces (Plumbing / Press fittings and pipes / Unico stainless/acid-resistant). Principal data: pipe dimension 1 28 mm, pipe dimension 2 28 mm, dimension on branch 22 mm, number of pressure sleeves 3 pcs. Supplied under manufacturer part number S41EF-LBP, HS code 7307.22, country of origin Italy.

Product type

T-pieces Product group: Press fittings and pipes Pipe dimension 1: 28 mm Pipe dimension 2: 28 mm Dimension on branch: 22 mm Number of pressure sleeves: 3 pcs material: Stainless/acid-resistant O ring: EPDM - leaks if not pressed Operating temperature: -20 to +85 °C Operating pressure max: 16 bar Temperature max: 120 °C Restriction: Not approved for gas Press end type: 3 sockets Press jaw: M-22 / M-28 Jointing system: Press L dimension: 92 mm L1 dimension: 45 mm I dimension: 46 mm D dimension: 28 mm D1 dimension: 22 mm Z dimension: 22 mm Z1 dimension: 22 mm REACH SVHC substance above 0.1%: None Carbon footprint (EPD): 0.5680 kg CO2e per pcs Environmental declaration: EPD third-party verified Country of origin: Italy Customs tariff code (EU CN): 73072210 HS code: 7307.22 Manufacturer part number: S41EF-LBP VVS number: 034870339

HS Code

7307.22

• MPN S41EF-LBP
• VVS 034870339
