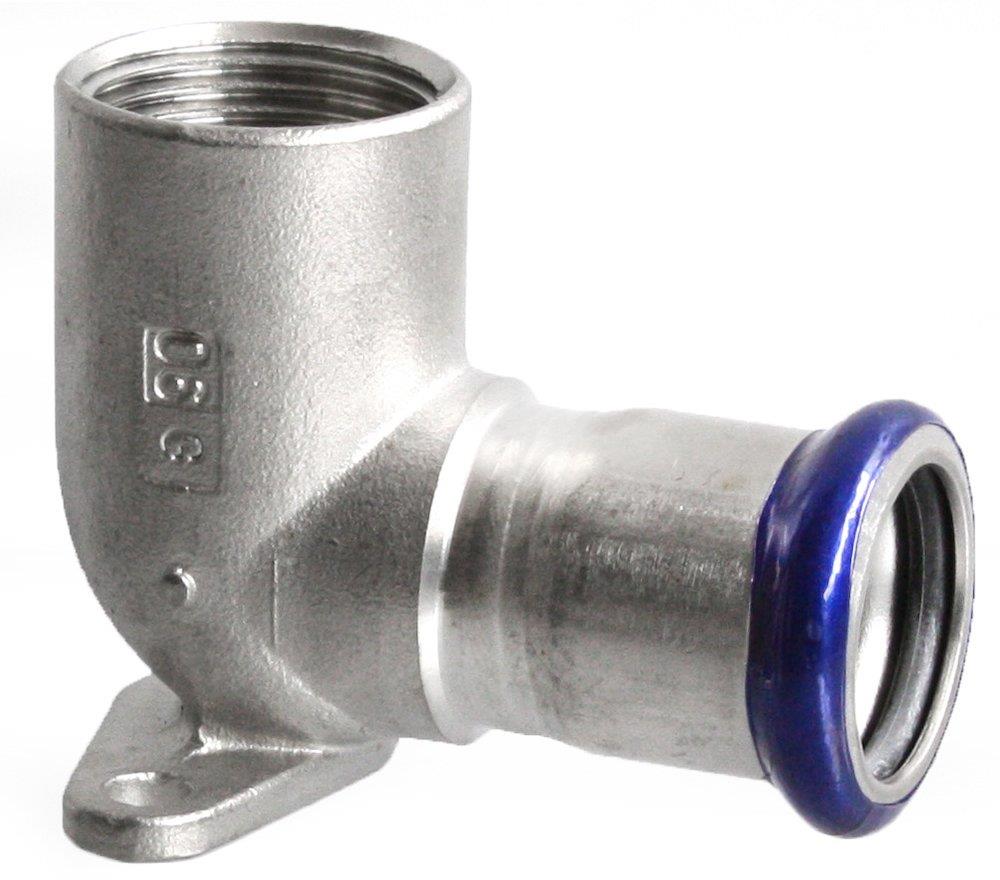

Unico SF Press Angle valve coupling/coupling - 18mm, 1PCS, 1/2", 90°
Pricing
Request a quote
We reply within 24 hours
Product Description
Unico SF Press Angle valve socket/socket. Bendings and angles (Plumbing / Press fittings and pipes / Unico stainless/acid-resistant). Principal data: pipe dimension 18 mm, number of pressure sleeves 1 pcs, thread 1/2", angle 90°. Supplied under manufacturer part number S32PD-LBP, EAN 5707234132112, HS code 7307.22, country of origin Italy.
Technical Specifications
- Product type
- Bendings and angles Product group: Press fittings and pipes Pipe dimension: 18 mm Number of pressure sleeves: 1 pcs Thread: 1/2" Angle: 90° material: Stainless/acid-resistant Press jaw: M-18 Press end type: Socket Operating temperature: -20 to +85 °C O ring: EPDM - leaks if not pressed Operating pressure max: 16 bar Temperature max: 120 °C L dimension: 47 mm L1 dimension: 43 mm H dimension: 34 mm I dimension: 13 mm I1 dimension: 13 mm G dimension: 5 mm D dimension: 18 mm Z dimension: 26 mm R dimension: 1/2" REACH SVHC substance above 0.1%: None Carbon footprint (EPD): 0.4140 kg CO2e per pcs Environmental declaration: EPD third-party verified Country of origin: Italy Customs tariff code (EU CN): 73072290 HS code: 7307.22 Manufacturer part number: S32PD-LBP GTIN (EAN): 5707234132112 VVS number: 034859222
Standards & Compliance
- HS Code
- 7307.22
Cross References
- MPN S32PD-LBP
- EAN 5707234132112
- VVS 034859222
