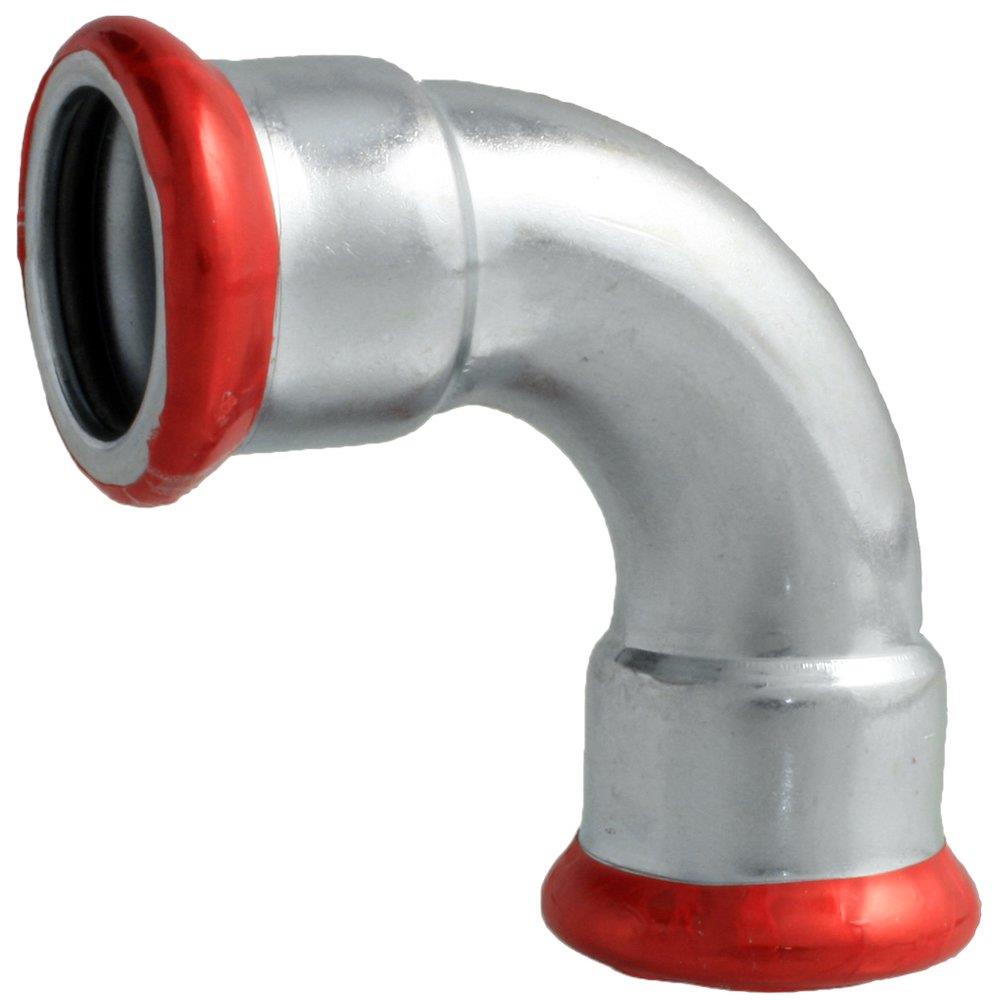

Unico FZ Press Bend - 35mm, 35mm, 90°, coupling/coupling
Pricing
Request a quote
We reply within 24 hours
Product Description
Unico FZ Press Bend. Bends and angles (Plumbing / Press fittings and pipes / Unico FZ). Principal data: pipe dimension 1 35 mm, pipe dimension 2 35 mm, angle 90°, press end type Socket/socket. Supplied under manufacturer part number C20ZG-LBP, HS code 7307.22, country of origin Italy.
Technical Specifications
- Product type
- Bends and angles
- Product group
- Press fittings and pipes
- Pipe dimension 1
- 35 mm
- Pipe dimension 2
- 35 mm
- Angle
- 90°
- Press end type
- Socket/socket
- Number of pressure sleeves
- 1 pcs
- Operating pressure max
- 16 bar
- Operating temperature
- -20 to +85 °C
- O ring
- EPDM (black) - leaks if not pressed
- Temperature max
- 120 °C
- Press jaw
- M-35
- Surface
- Male thread
- L dimension
- 72 mm
- D dimension
- 35 mm
- Z dimension
- 45 mm
- REACH SVHC substance above 0.1%
- None
- Sales unit
- Pack
- Carbon footprint (EPD)
- 2.3350 kg CO2e per pcs
- Environmental declaration
- EPD third-party verified
- Country of origin
- Italy
- Customs tariff code (EU CN)
- 73072290
- HS code
- 7307.22
- Manufacturer part number
- C20ZG-LBP
- VVS number
- 034901035
Standards & Compliance
- HS Code
- 7307.22
Cross References
- MPN C20ZG-LBP
- VVS 034901035
Product Documentation
