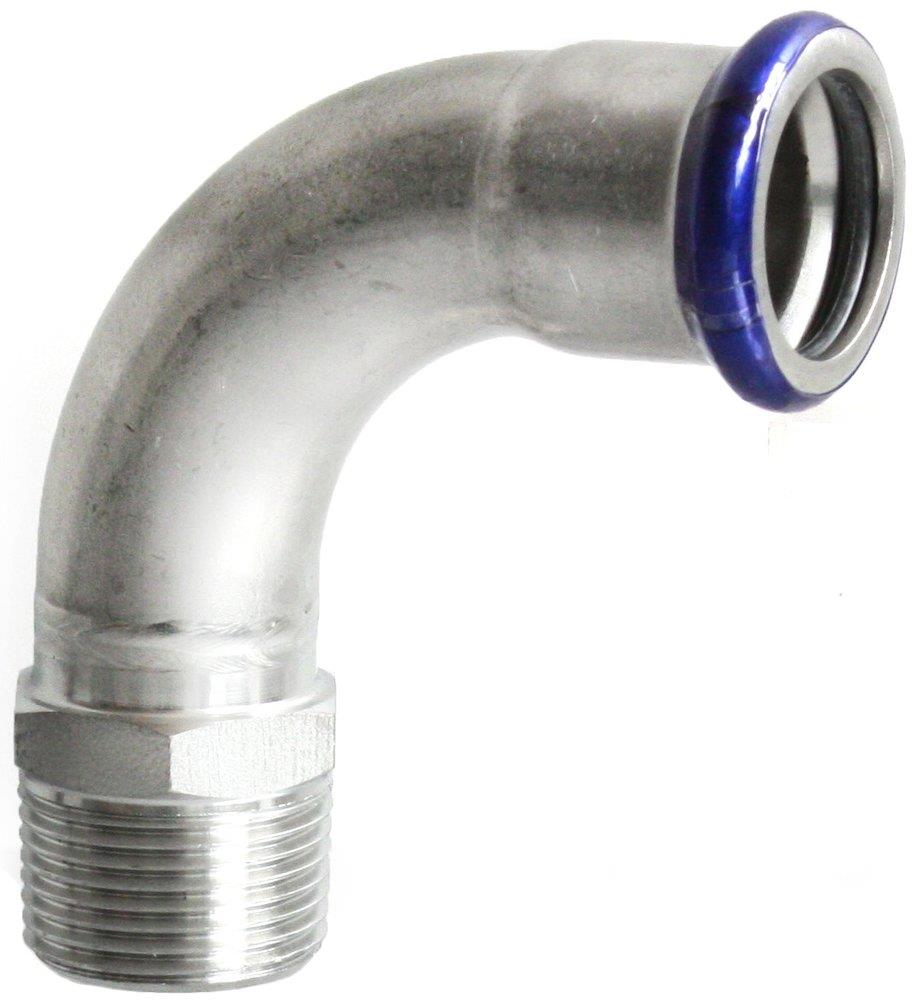

Unico SF Press Bend socket/nipple - 35mm, 1PCS, 1 1/4", 90°
Pricing
Request a quote
We reply within 24 hours
Product Description
Unico SF Press Bend socket/nipple. Bendings and angles (Plumbing / Press fittings and pipes / Unico stainless/acid-resistant). Principal data: pipe dimension 35 mm, number of pressure sleeves 1 pcs, thread 1 1/4", angle 90°. Supplied under manufacturer part number S83SG-LBP, EAN 5707234040455, HS code 7307.22, country of origin Italy.
Technical Specifications
- Product type
- Bendings and angles Product group: Press fittings and pipes Pipe dimension: 35 mm Number of pressure sleeves: 1 pcs Thread: 1 1/4" Angle: 90° material: Stainless/acid-resistant Press jaw: M-35 Press end type: Socket Operating temperature: -20 to +85 °C O ring: EPDM - leaks if not pressed Operating pressure max: 16 bar Temperature max: 120 °C L dimension: 87 mm L1 dimension: 93 mm D dimension: 35 mm Z dimension: 60 mm R dimension: 1 1/2" REACH SVHC substance above 0.1%: None Carbon footprint (EPD): 0.7310 kg CO2e per pcs Environmental declaration: EPD third-party verified Country of origin: Italy Customs tariff code (EU CN): 73072290 HS code: 7307.22 Manufacturer part number: S83SG-LBP GTIN (EAN): 5707234040455 VVS number: 034855035
Standards & Compliance
- HS Code
- 7307.22
Cross References
- MPN S83SG-LBP
- EAN 5707234040455
- VVS 034855035
Product Documentation
