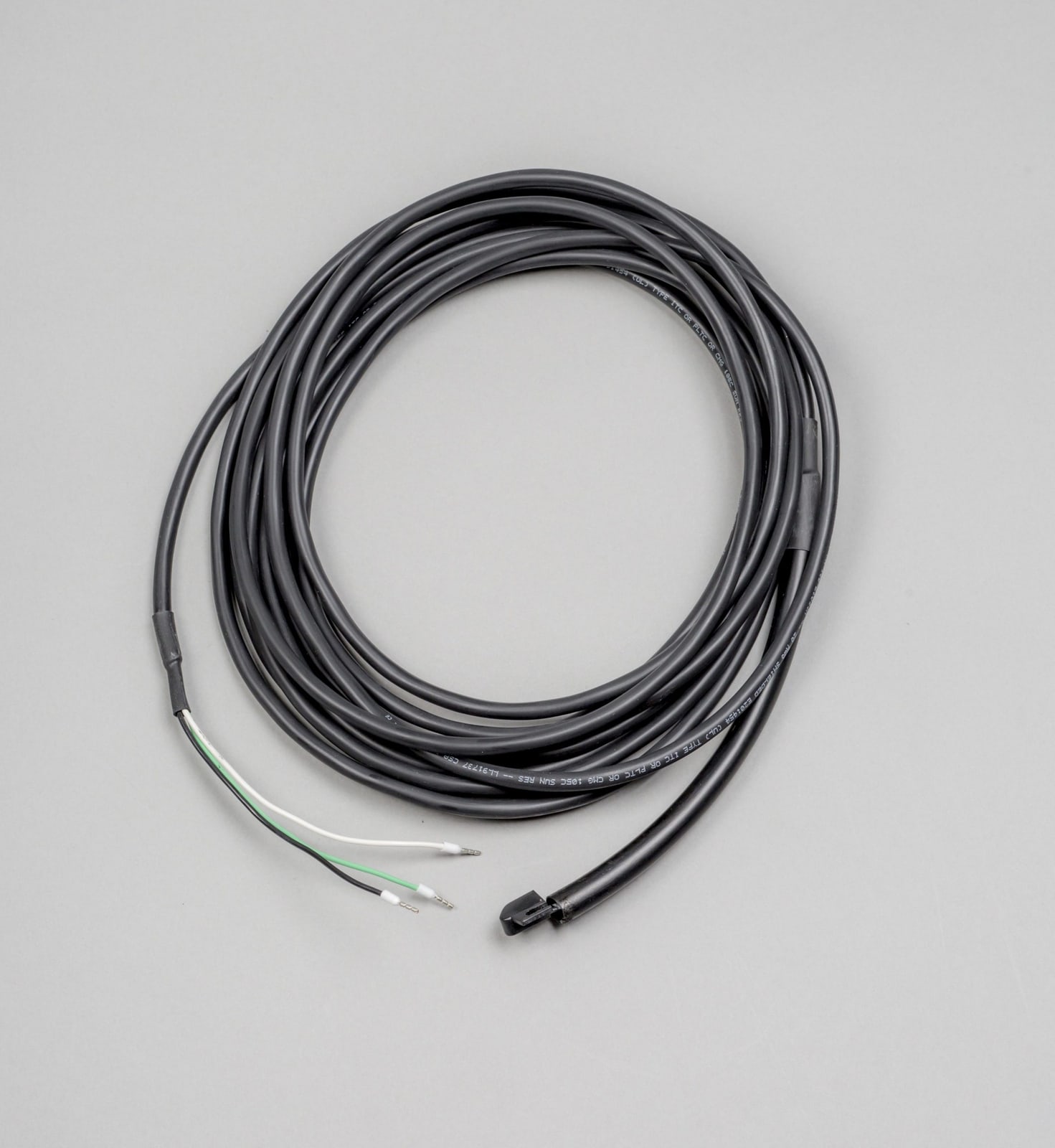

Trojan Temperature Switch — 10 m Lead

Temperature switch for Trojan UV systems, original part number 915159G, supplied with a 10 metre lead. It is a thermal protection device: it senses the temperature in the reactor or cabinet and signals the controller to shut the lamps down before an over-temperature condition can damage them. On a UV reactor this matters most at low or no flow. The lamps put a large amount of heat into a small water volume, and it is standing water — not running water — that overheats, so the switch is the interlock that protects the sleeve and lamp when flow stops with the system energised. The 10 metre lead is a variant, not a fixed attribute of the part number: Trojan lists temperature switches in more than one lead length and the cabinet-to-reactor run decides which is correct. Confirm the length you need when ordering. Supplied by cBallast on quote-to-invoice terms; lead time and freight are quoted per RFQ against the destination Incoterm.

Product type

Temperature switch (thermal protection / lamp shutdown interlock)

Original Trojan part number

915159G

Lead length

10 m

Function

Signals lamp shutdown on over-temperature, protecting lamps and sleeves at low or no flow

Ordering note

Lead length is a variant — confirm the cabinet-to-reactor run before ordering

HS code

8421.99

HS Code

8421.99

• Article 15113-0613
• 915159G
• Trojan 915159G
