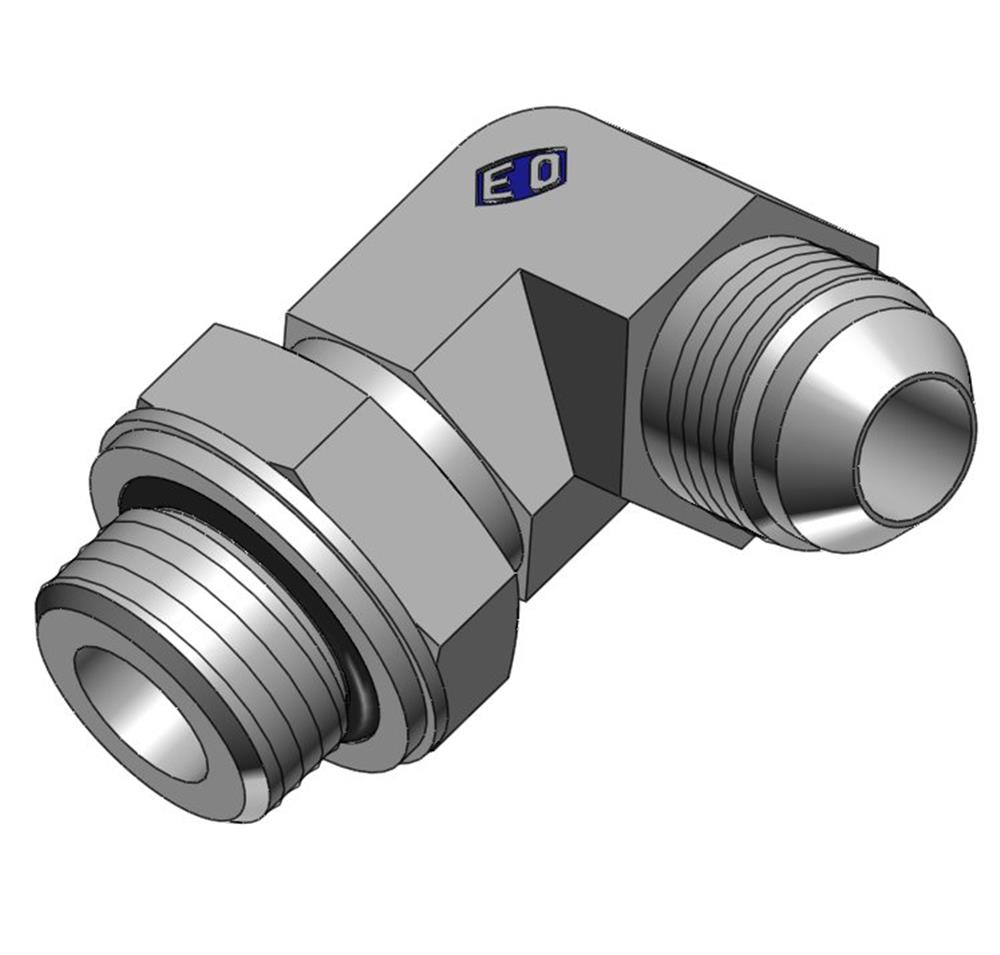

Triple-Lok C40MX Angle Insertion adjustable steel chromated JIC/BSP - 1/2, 20mm, 90°, 250bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Triple-Lok C40MX Angle Insertion adjustable steel chromated JIC/BSP. Extraction, pipe/thread, angle (Technique / Hydraulics / Extraction fittings). Principal data: thread 1/2, pipe dimension 20 mm, angle 90°, working pressure 250 bar. Supplied under manufacturer part number 12-8C4OMXS, HS code 7307.92, country of origin Poland.
Technical Specifications
- Product type
- Extraction, pipe/thread, angle Product group: Hydraulics Thread: 1/2 Pipe dimension: 20 mm Angle: 90° Working pressure: 250 bar Threaded screw: 1/2 Threaded pipe end: 1 1/16"x12 UNF Safety factor: 4:1 Approval: DNV, Bureau Veritas, Lloyd's, DVGW and others Gasket: NBR Sales unit: Pack Carbon footprint (EPD): 0.8312 kg CO2e per pcs Country of origin: Poland Customs tariff code (EU CN): 73079290 HS code: 7307.92 Manufacturer part number: 12-8C4OMXS
Standards & Compliance
- HS Code
- 7307.92
Cross References
- MPN 12-8C4OMXS
More from Parker Hannifin
Parker Hannifin
Triple-Lok WETX-WLN-S Angle Connector bulkhead steel chromated JIC - 30mm, 90°, 280bar
20 WETX-WLN-S
Parker Hannifin
Triple-Lok R4OMXS Tee Fitting adjustable steel chromated JIC - 1 1/4, 30mm, 210bar
20R4OMXS
Parker Hannifin
Triple-Lok F42EDMXS Straight Insertion steel chromated JIC/BSP - 1 1/4, 30mm, 210bar
20F42EDMXS
Parker Hannifin
Triple-Lok F642EDMXS Straight Insertion adjustable steel chromated JIC/BSP - 1/8, 6mm
4F642EDMXS
Parker Hannifin
Triple-Lok C40MX Angle Insertion adjustable steel chromated JIC/BSP - 3/8, 16mm, 90°, 250bar
10-6C4OMXS
Parker Hannifin
Triple-Lok V4OMXS Angle Insertion adjustable steel chromated JIC/BSP - 1 1/4, 30mm, 45°, 210bar
20V4OMXS
Parker Hannifin
Triple-Lok KTX-S Cross Connector steel chromated JIC - 10mm, 420bar
6 KTX-S
Parker Hannifin
Triple-Lok WEMTXWLNMS Angle Connector bulkhead steel chromated JIC - 12mm, 90°, 420bar
8WEMTXWLNMS
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 12-8C4OMXS?
- 12-8C4OMXS can be ordered from cballast.com as a Parker Hannifin catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Parker Hannifin product?
- The manufacturer part number is 12-8C4OMXS.
- What is the HS code for 12-8C4OMXS?
- The customs tariff (HS) code for 12-8C4OMXS is 7307.92.
- Who manufactures 12-8C4OMXS?
- 12-8C4OMXS is a Parker Hannifin product in the Hydraulics range.
- Is a datasheet available for 12-8C4OMXS?
- Yes — the 12-8C4OMXS datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 12-8C4OMXS?
- The minimum order quantity is 1.
- Is 12-8C4OMXS available?
- Yes — 12-8C4OMXS is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
