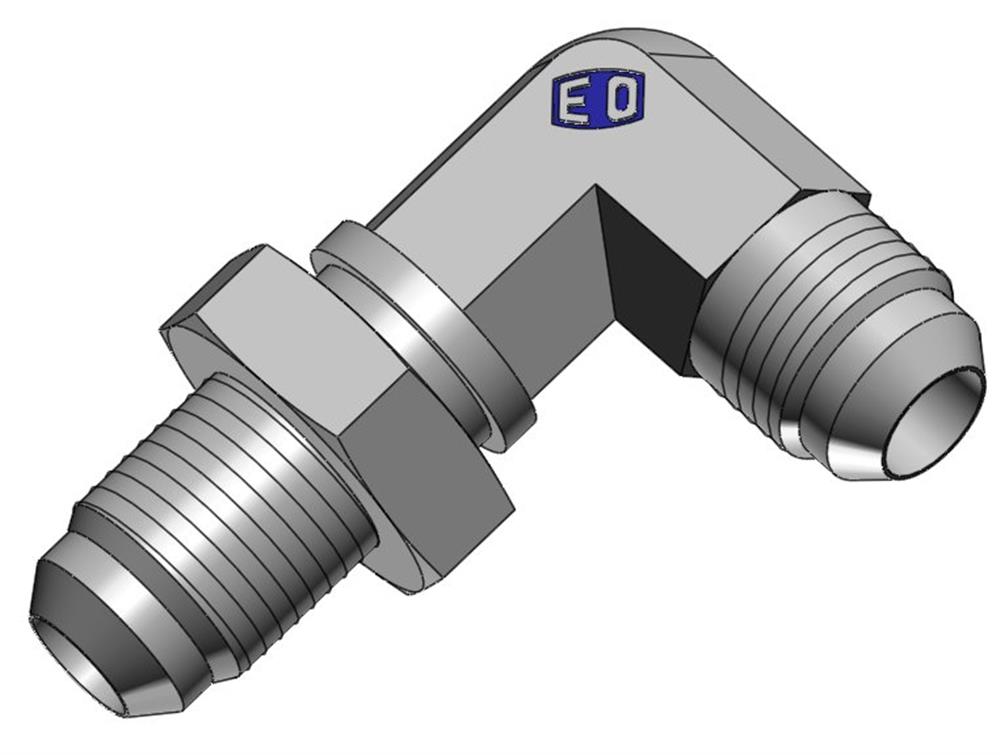

Triple-Lok WETX-WLN-S Angle Connector bulkhead steel chromated JIC - 30mm, 90°, 280bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Triple-Lok WETX-WLN-S Angle Connector bulkhead steel chromated JIC. Extraction, pipe/pipe, angle (Technique / Hydraulics / Extraction fittings). Principal data: pipe dimension 30 mm, angle 90°, working pressure 280 bar. Supplied under manufacturer part number 20 WETX-WLN-S, HS code 7307.99, country of origin United States.
Technical Specifications
- Product type
- Extraction, pipe/pipe, angle
- Product group
- Hydraulics
- Pipe dimension
- 30 mm
- Angle
- 90°
- Working pressure
- 280 bar
- Threaded pipe end
- 1 5/8" x 12 UNF
- Safety factor
- 4:1
- Approval
- DNV, Bureau Veritas, Lloyd's, DVGW and others
- Sales unit
- Pack
- Carbon footprint (EPD)
- 2.6424 kg CO2e per pcs
- Country of origin
- United States
- Customs tariff code (EU CN)
- 73079910
- HS code
- 7307.99
- Manufacturer part number
- 20 WETX-WLN-S
Standards & Compliance
- HS Code
- 7307.99
Cross References
- MPN 20 WETX-WLN-S
More from Parker Hannifin
Parker Hannifin
Triple-Lok R4OMXS Tee Fitting adjustable steel chromated JIC - 1 1/4, 30mm, 210bar
20R4OMXS
Parker Hannifin
Triple-Lok F42EDMXS Straight Insertion steel chromated JIC/BSP - 1 1/4, 30mm, 210bar
20F42EDMXS
Parker Hannifin
Triple-Lok F642EDMXS Straight Insertion adjustable steel chromated JIC/BSP - 1/8, 6mm
4F642EDMXS
Parker Hannifin
Triple-Lok C40MX Angle Insertion adjustable steel chromated JIC/BSP - 3/8, 16mm, 90°, 250bar
10-6C4OMXS
Parker Hannifin
Triple-Lok V4OMXS Angle Insertion adjustable steel chromated JIC/BSP - 1 1/4, 30mm, 45°, 210bar
20V4OMXS
Parker Hannifin
Triple-Lok KTX-S Cross Connector steel chromated JIC - 10mm, 420bar
6 KTX-S
Parker Hannifin
Triple-Lok WEMTXWLNMS Angle Connector bulkhead steel chromated JIC - 12mm, 90°, 420bar
8WEMTXWLNMS
Parker Hannifin

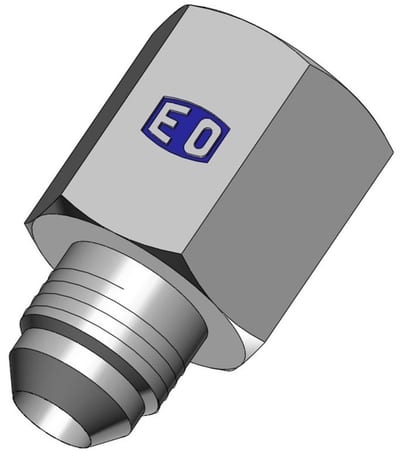

Triple-Lok G4MXS Straight Attachment steel chromated JIC/BSP - 3/8, 12mm
