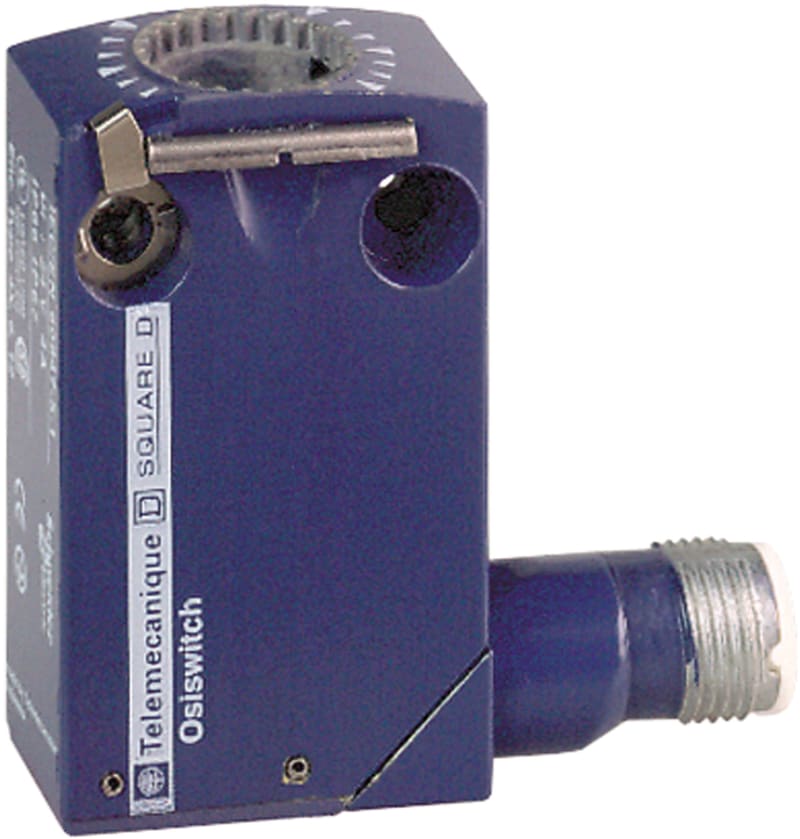

Telemecanique ZCMD29C12 Limit Switch Body, Metal, Snap-action
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique ZCMD29C12 limit switch body (contact block), metal housing, snap-action contacts; combines with ZCK/ZC2 operating heads to form a complete limit switch.
Technical Specifications
- Manufacturer part number (MPN)
- ZCMD29C12
- EAN / GTIN
- 3666916042571
- Sales unit
- pcs
- Package quantity
- 60 pcs
- Switching function
- Quick-break switch
- Rated operation current Ie at AC-15, 230 V
- 1.5 A
- Rated operation current Ie at DC-13, 230 V
- 0.1 A
- Housing material
- Metal
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP66
- Forced opening
- Yes
- Type of control element
- None
- Type of interface
- None
- Output electronic
- No
- Width sensor
- 52 mm
- Height of sensor
- 74 mm
- Length of sensor
- 16 mm
- Switching function latching
- No
- Ambient temperature during operating
- -25–70 °C
- Number of contacts as normally closed contact
- 2
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916042571
- SAP 1000256817
- Code 81143159
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XZCP1264L15 Sensor Cable, M12 female, 5-pin, 15 m
Telemecanique

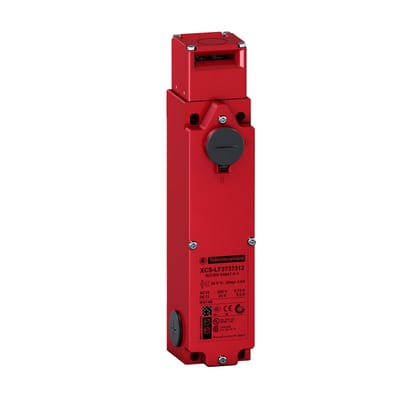

Telemecanique XCSLF3838512 Safety Door Interlock 24 V Metal 3NC+3NC
Telemecanique

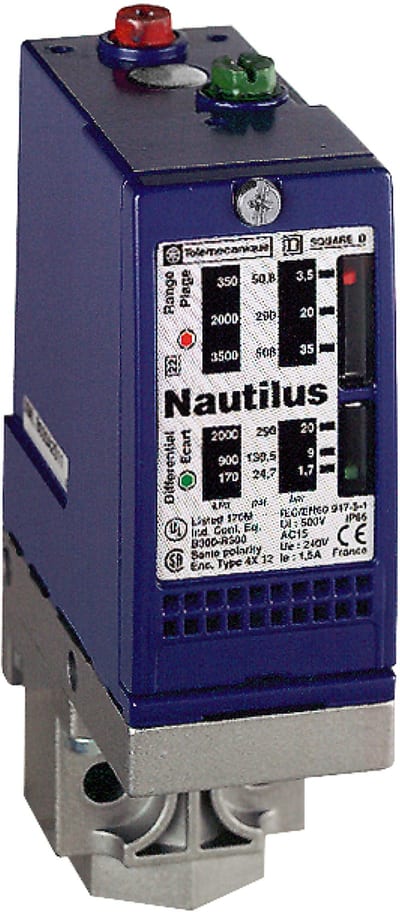

Telemecanique XMLB300D2S11 Pressure Switch 22–300 bar
Telemecanique

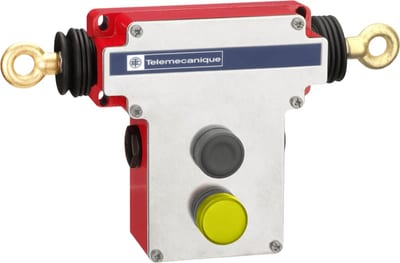

Telemecanique XY2CEDA196 Emergency Stop Rope Pull Switch, 100 m Rope Span
Telemecanique

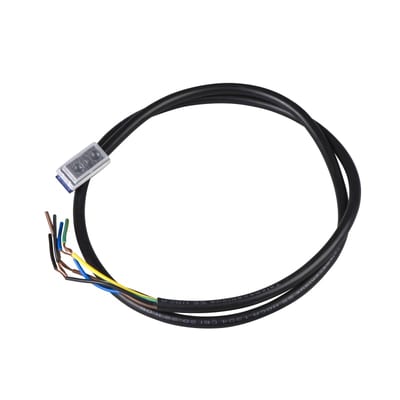

Telemecanique ZCMC21L15 Contact Body for XCM Limit Switches, 1 NC + 1 NO, snap action, 15 m cable
Telemecanique

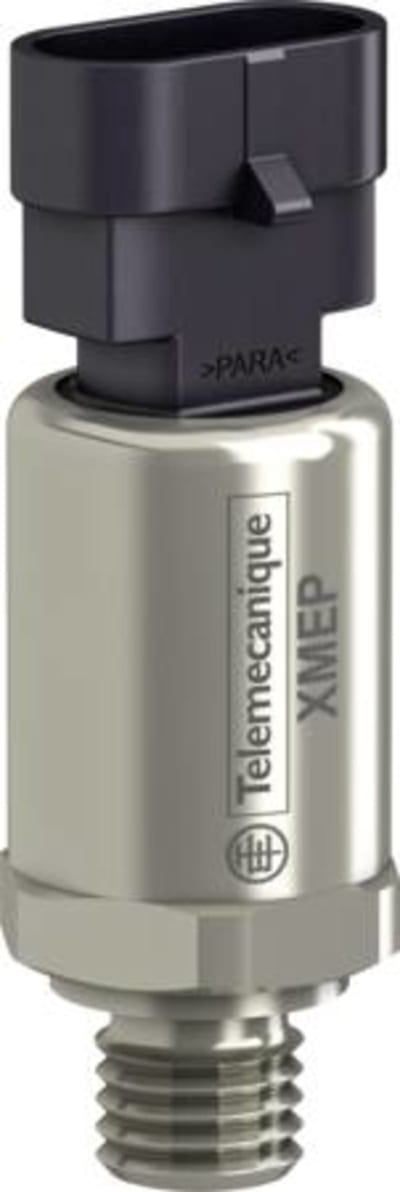

Telemecanique XMEP100BV71F Pressure Transmitter, G 1/4 A, 0.5–4.5 V ratiometric, AMP connector
Telemecanique
Telemecanique XCSPA593 Safety Interlock Switch, Plastic, 1/2" NPT Entry
Telemecanique

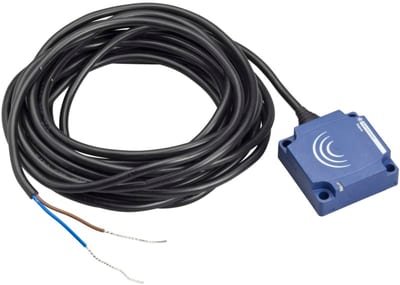

Telemecanique XS7C1A1DAL2 Optimum Inductive Proximity Sensor 40 × 40 mm, DC 2-Wire NO, 2 m cable
