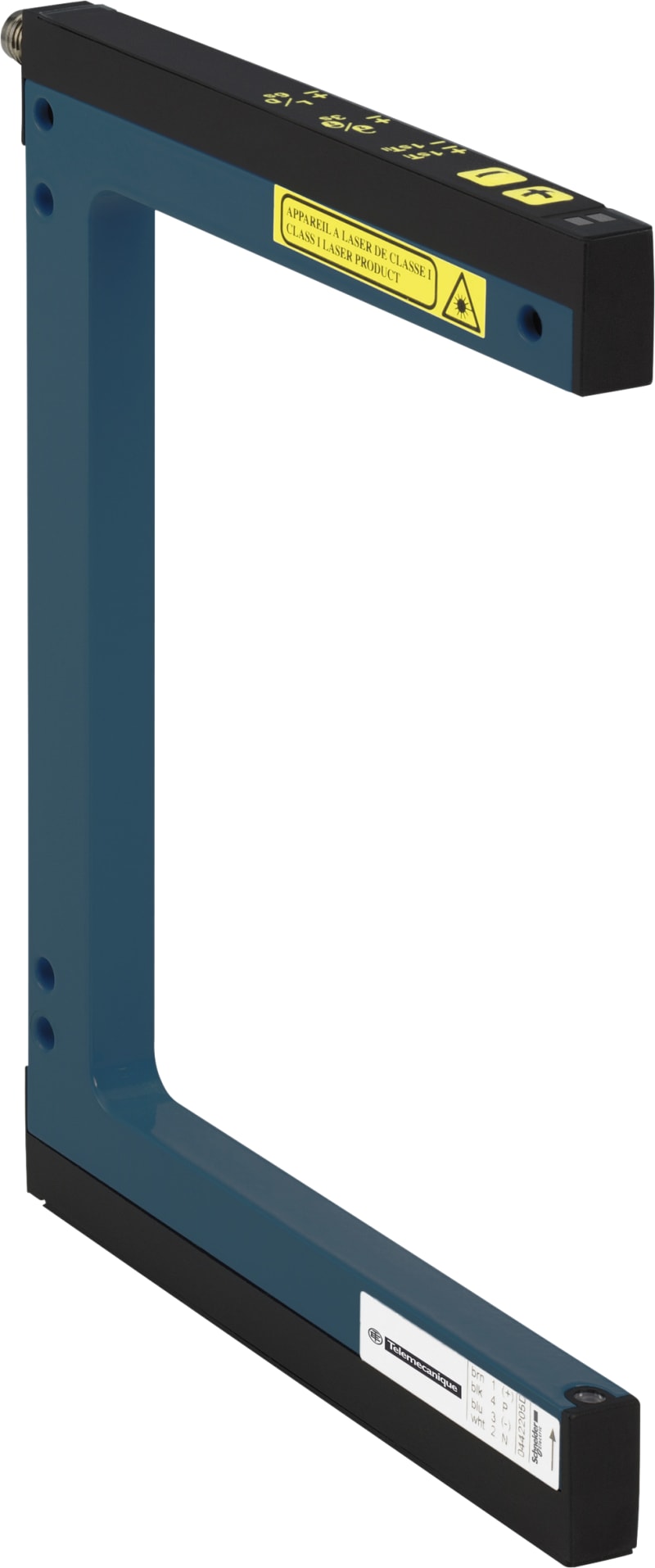

Telemecanique XUYFALNEP100080 Laser Fork Sensor 95 × 80 mm, Teach-In, M8 Connector
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XUYFALNEP100080 laser fork (slot) sensor, 95 × 80 mm opening, teach-in setting, M8 connector; for label, edge and small-object detection.
Technical Specifications
- Manufacturer part number (MPN)
- XUYFALNEP100080
- EAN / GTIN
- 3666916029886
- Sales unit
- pcs
- Min. object size
- 0.05 mm
- Fork depth
- 95 mm
- Fork width
- 80 mm
- Rated switching distance
- 80 mm
- Max. switching distance
- 80 mm
- Max. output current
- 100 mA
- With time function
- No
- With reflector
- No
- Analogue output 0 V ... 10 V
- No
- Analogue output 0 mA ... 20 mA
- No
- Analogue output 4 mA ... 20 mA
- No
- Analogue output -10 V ... +10 V
- No
- With other analogue output
- No
- With communication interface analogue
- No
- With communication interface AS-Interface
- No
- With communication interface CANOpen
- No
- With communication interface DeviceNet
- No
- With communication interface Ethernet
- No
- With communication interface INTERBUS
- No
- With communication interface PROFIBUS
- No
- With communication interface RS-232
- No
- With communication interface RS-422
- No
- With communication interface RS-485
- No
- With communication interface SSD
- No
- With communication interface SSI
- No
- Type of electric connection
- Connector M8
- Type of switching output
- PNP/NPN
- Type of switch function
- Programmable/configurable
- Operation agent-safety class
- Safety class 0
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Special construction
- Width sensor
- 80 mm
- Height of sensor
- 95 mm
- Length of sensor
- 10 mm
- Sensing mode
- Light switching
- Material of optical surface
- Glass
- Housing material
- Metal
- Max. output current at protected output
- 100 mA
- Min. reflector distance
- 0 mm
- Response time
- 0.02 ms
- Switching frequency
- 10000 Hz
- Type of safety according to IEC 61496-1
- 1
- Voltage type
- AC/DC
- With monitoring function downstream switching devices
- No
- Pre failure notice
- No
- Laser protection class
- None
- With restart blockage
- No
- Degree of protection (IP)
- IP65
- Suitable for safety functions
- No
- Ambient temperature
- -20–60 °C
- Rated control supply voltage DC
- 12–24 V
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916029886
- SAP 1000341328
- Code 8975571
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique OsiSense XS612B1PBL10EX Inductive Proximity Sensor — M12 barrel, Sn 4 mm, PNP, NC
Telemecanique
Telemecanique XZCP0566L10 Sensor Cable, M8 female straight, 3-pin, 10 m
Telemecanique
Telemecanique XY2CE5A270 Emergency Stop Rope Pull Switch, Right-Hand
Telemecanique
Telemecanique XUSL4E2BB051L Safety Light Grid Type 4, Body Detection, 2 Beams, 510 mm
Telemecanique
Telemecanique OsiSense XS212B4PBL2 Inductive Proximity Sensor — M12 barrel, Sn 8 mm, PNP, NC, pre-wired cable (2 m)
Telemecanique
Telemecanique XUYPCO925L2ANSP Laser Photoelectric Sensor, Analogue 0–10 V, Sn 85 mm
Telemecanique
Telemecanique XUSL4E14F166N Safety Light Curtain Type 4, Finger Detection (14 mm), 1660 mm Height
Telemecanique
Telemecanique XMLP150PD730 Pressure Transmitter, 0–150 psi, 0.5–4.5 V ratiometric, 1/4" NPT, M12 connector
Technical guides
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XUYFALNEP100080?
- XUYFALNEP100080 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XUYFALNEP100080.
- What is the HS code for XUYFALNEP100080?
- The customs tariff (HS) code for XUYFALNEP100080 is 8536.50.
- Who manufactures XUYFALNEP100080?
- XUYFALNEP100080 is a Telemecanique product in the Sensors & Instrumentation range.
- Is a datasheet available for XUYFALNEP100080?
- Yes — the XUYFALNEP100080 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XUYFALNEP100080?
- The minimum order quantity is 1.
- Is XUYFALNEP100080 available?
- Yes — XUYFALNEP100080 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
