Telemecanique XUSL4E2BB051L Safety Light Grid Type 4, Body Detection, 2 Beams, 510 mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XUSL4E2BB051L Type 4 safety light grid for body detection, 2 beams, protected height 510 mm.
Technical Specifications
- Manufacturer part number (MPN)
- XUSL4E2BB051L
- EAN / GTIN
- 3666916028315
- Sales unit
- pcs
- Protective field height
- 510 mm
- Number of beams
- 2
- Type (EN IEC 61496)
- Type 4
- Number of protected semiconductor outputs
- 2
- Fade-out possible
- No
- Type of switching output of the OSSD
- PNP/PNP
- Type of electric connection
- Connector M12
- Operation agent-safety class
- Safety class 3
- Width sensor
- 29.4 mm
- Height of sensor
- 677 mm
- Length of sensor
- 31 mm
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Cascadable
- No
- Scope of delivery of the one-way system
- Transmitter and receiver
- Max. output current at protected output
- 400 mA
- Ambient temperature
- -10–55 °C
- With muting function
- Yes
- Override possible
- No
- Response time
- 2.5 ms
- Reduced resolution
- Yes
- Transmission range of the safety field
- 20 m
- Switching voltage of OSSD at state "high"
- 24 V
- Safety field height
- 510 mm
- Type of safety according to IEC 61496-1
- 4
- Rated control supply voltage DC
- 24 V
- Voltage type
- AC/DC
- With beam coding
- No
- Clock control possible
- No
- With monitoring function downstream switching devices
- No
- Wavelength of the sensor
- 950 nm
- With restart blockage
- Yes
- Suitable for safety functions
- Yes
- Degree of protection (IP)
- IP65
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916028315
- SAP 1000652028
- Code 8210474
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique OsiSense XS212B4PBL2 Inductive Proximity Sensor — M12 barrel, Sn 8 mm, PNP, NC, pre-wired cable (2 m)
Telemecanique
Telemecanique XUYPCO925L2ANSP Laser Photoelectric Sensor, Analogue 0–10 V, Sn 85 mm
Telemecanique
Telemecanique XUSL4E14F166N Safety Light Curtain Type 4, Finger Detection (14 mm), 1660 mm Height
Telemecanique
Telemecanique XMLP150PD730 Pressure Transmitter, 0–150 psi, 0.5–4.5 V ratiometric, 1/4" NPT, M12 connector
Telemecanique
Telemecanique XMLP3K0PP730 Pressure Transmitter, 0–3000 psi, 0.5–4.5 V ratiometric, 1/4" NPT, Packard connector
Telemecanique
Telemecanique XZCP12V12L10 Sensor Cable, M12 female, 5-pin, PUR, 10 m
Telemecanique

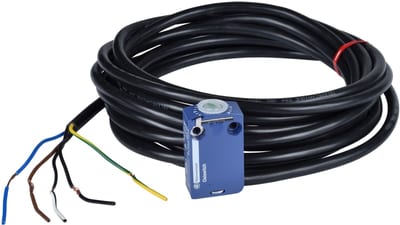

Telemecanique ZCMD25L2 Limit Switch Body, Metal, NC+NO, Slow-break, 2 m cable
