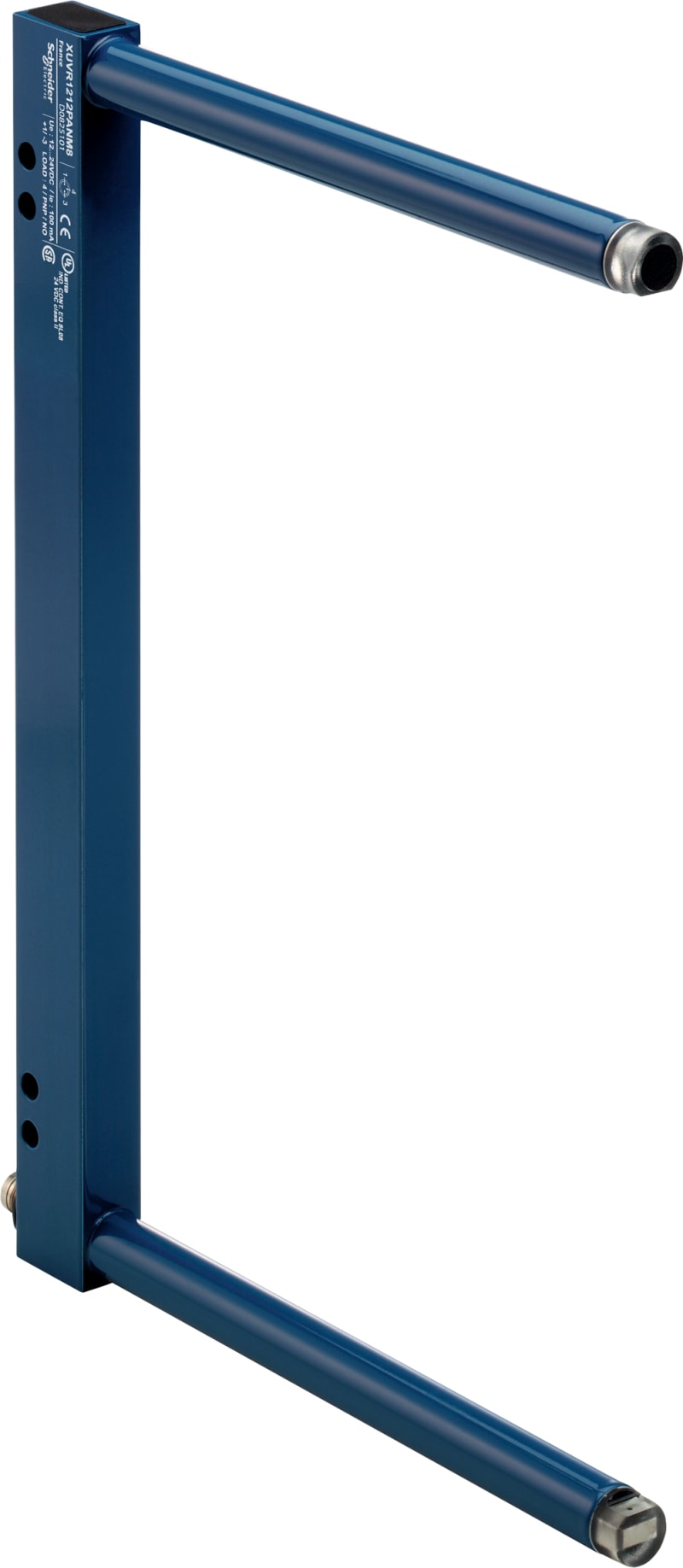

Telemecanique XUVR1218PANM8 Fork Photoelectric Sensor 120 × 180 mm, PNP NO, M8 connector
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XUVR1218PANM8 fork (slot) photoelectric sensor, 120 × 180 mm opening, PNP NO output, M8 connector.
Technical Specifications
- Manufacturer part number (MPN)
- XUVR1218PANM8
- EAN / GTIN
- 3666916032121
- Sales unit
- pcs
- Package quantity
- 55 pcs
- Output type
- PNP
- Contact configuration
- NO
- Min. object size
- 10 mm
- Fork depth
- 120 mm
- Fork width
- 180 mm
- Rated switching distance
- 180 mm
- Max. switching distance
- 180 mm
- Max. output current
- 100 mA
- With time function
- No
- With reflector
- No
- Analogue output 0 V ... 10 V
- No
- Analogue output 0 mA ... 20 mA
- No
- Analogue output 4 mA ... 20 mA
- No
- Analogue output -10 V ... +10 V
- No
- With other analogue output
- No
- With communication interface analogue
- No
- With communication interface AS-Interface
- No
- With communication interface CANOpen
- No
- With communication interface DeviceNet
- No
- With communication interface Ethernet
- No
- With communication interface INTERBUS
- No
- With communication interface PROFIBUS
- No
- With communication interface RS-232
- No
- With communication interface RS-422
- No
- With communication interface RS-485
- No
- With communication interface SSD
- No
- With communication interface SSI
- No
- Number of semiconductor outputs with signalling function
- 1
- Number of protected semiconductor outputs
- 1
- Type of electric connection
- Connector M8
- Type of switching output
- PNP/PNP
- Type of switch function
- Normally open contact (NO)
- Operation agent-safety class
- Safety class 0
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Special construction
- Width sensor
- 180 mm
- Diameter sensor
- 8 mm
- Sensing mode
- Dark switching
- Material of optical surface
- Plastic
- Max. output current at protected output
- 100 mA
- Min. reflector distance
- 0 mm
- Response time
- 0.1 ms
- Switching frequency
- 4000 Hz
- Type of safety according to IEC 61496-1
- 1
- Voltage type
- AC/DC
- With monitoring function downstream switching devices
- No
- Pre failure notice
- No
- Laser protection class
- None
- Type of light
- Polarized red light
- With restart blockage
- No
- Degree of protection (IP)
- IP65
- Suitable for safety functions
- No
- Ambient temperature
- -10–60 °C
- Rated control supply voltage DC
- 12–24 V
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916032121
- SAP 1000341384
- Code 8997649
Product Documentation
