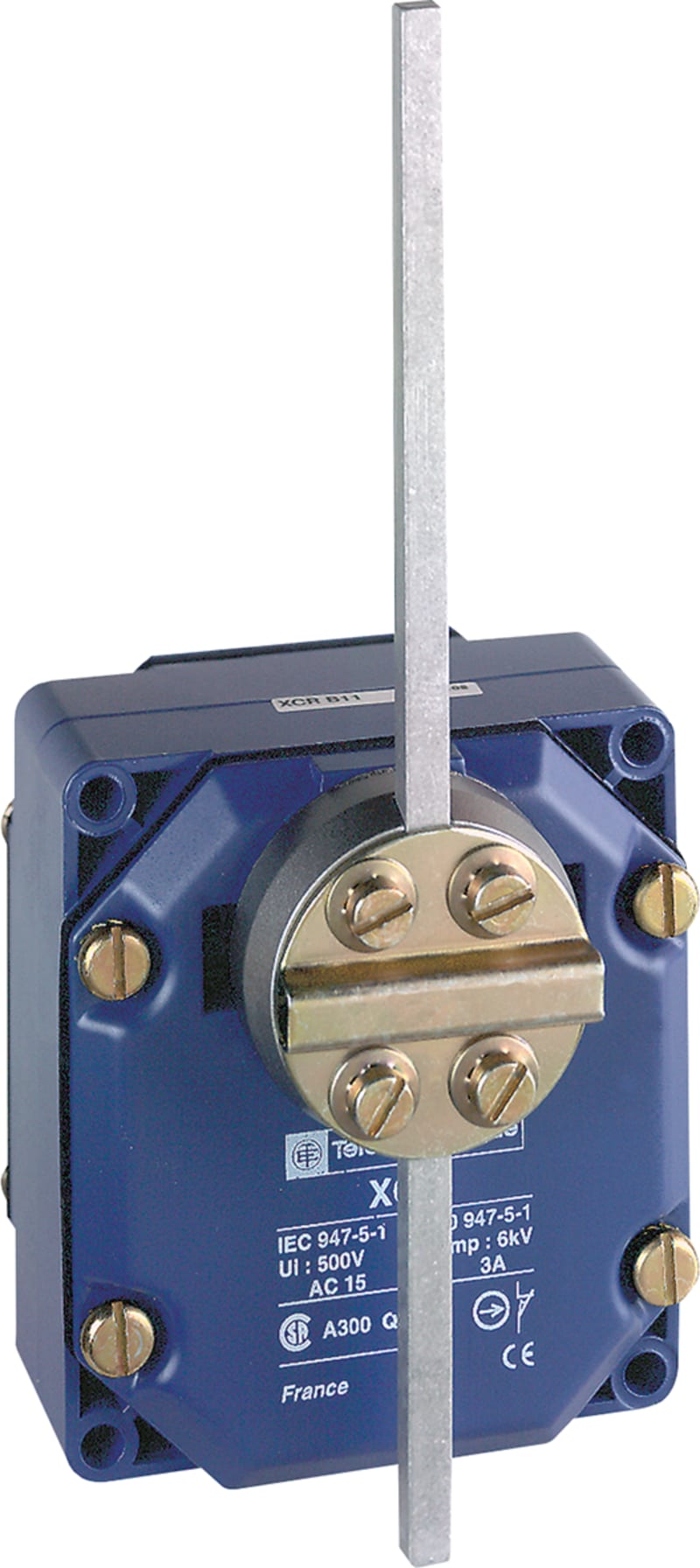

Telemecanique XCRB51 Limit Switch
Pricing
Request a quote
We reply within 24 hours
Overview
Telemecanique XCRB51 Limit Switch is listed under Sensors & Instrumentation / Position Switches. HS code: 8536.90; Sales unit: pcs; Housing material: Plastic; Suitable for safety functions: No; With status indication: No; Type of electric connection: Cable entry PG.
Technical Specifications
- Manufacturer part number (MPN)
- XCRB51
- EAN / GTIN
- 3666916049617
- HS code
- 8536.90
- Sales unit
- pcs
- Rated operation current Ie at AC-15, 230 V
- 3 A
- Rated operation current Ie at DC-13, 230 V
- 0.27 A
- Housing material
- Plastic
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry PG
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Special construction
- Degree of protection (IP)
- IP54
- Forced opening
- Yes
- Type of control element
- Actuating rod
- Type of interface
- None
- Output electronic
- No
- Width sensor
- 85 mm
- Height of sensor
- 95 mm
- Length of sensor
- 75 mm
- Switching function latching
- No
- Ambient temperature during operating
- -25–70 °C
- Number of contacts as normally closed contact
- 2
- Number of contacts as normally open contact
- 2
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916049617
- SAP 1000341232
- Code 8375632
Product Documentation
