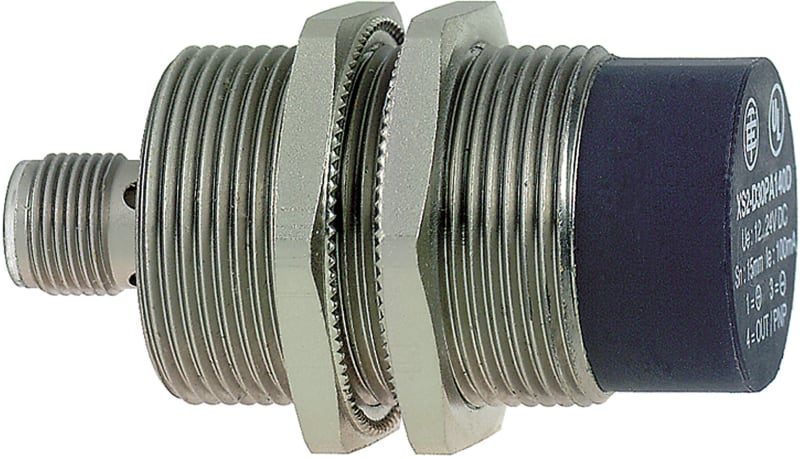

Telemecanique OsiSense XS630B4PBM12 Inductive Proximity Sensor — M30 barrel, Sn 22 mm, PNP, NC, M12 connector (4-Pin)
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XS630B4PBM12 is an OsiSense XS inductive proximity sensor in an M30 nickel-plated brass threaded barrel, with a nominal sensing distance (Sn) of 22 mm and a non-flush (unshielded) sensing face. It provides a PNP (3-wire DC) output, switching NC (normally closed), via M12 connector (4-pin). IP67 protection, operating range -25 °C to +70 °C, with output-state LED indication. Conforms to IEC 60947-5-2.
Technical Specifications
- Manufacturer part number (MPN)
- XS630B4PBM12
- EAN / GTIN
- 3666916011607
- Product type
- OsiSense XS inductive proximity sensor
- Housing
- M30 cylindrical threaded barrel (Nickel-plated brass)
- Mounting
- non-flush (unshielded)
- Nominal sensing distance Sn
- 22 mm
- Output
- PNP (3-wire DC)
- Switching function
- NC (normally closed)
- Connection
- M12 connector (4-pin)
- Degree of protection
- IP67
- Operating temperature
- -25 °C to +70 °C
- Conforms to
- IEC 60947-5-2
- HS code
- 8536.50
- Sales unit
- pcs
- Package quantity
- 11 pcs
Standards & Compliance
- Standard
- IEC 60947-5-2
- Material
- Nickel-plated brass
- Temperature Range
- -25 °C to +70 °C
- IP Rating
- IP67
- HS Code
- 8536.50
Cross References
- EAN 3666916011607
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XCKML121H29 Limit Switch, M20 entry
Telemecanique
Telemecanique XMLB300D2C11 Pressure Switch, 22–300 bar
Telemecanique
Telemecanique ZCY39 Actuator Lever for ZC2/XC Standard Limit Switches
Telemecanique
Telemecanique XCKML502H29 Limit Switch, Roller Plunger, Metal Body, M20 cable entry
Telemecanique
Telemecanique XUX1ANANT16 Photoelectric Sensor, Retroreflective, NPN NO, screw terminals
Telemecanique
Telemecanique XUSL4MB30H061N Type 4 Safety Light Grille with Integrated Muting, 610 mm protected height
Telemecanique
Telemecanique XZCPV0566L5 Sensor Cable, M8 female, 3-pin, PVC, 5 m
Telemecanique
Telemecanique XMLR016G0T25 Pressure Sensor with Display, 0–16 bar, 4–20 mA
Technical guides
- Inductive Proximity Sensor Cross-Reference — Telemecanique OsiSense XS, Carlo Gavazzi ICB, Omron E2E, Eaton E57, Turck, Pepperl+Fuchs by Housing, Sensing Distance and Output
- Emergency Stop Rope Pull Switches — Covering Conveyors to EN ISO 13850 with XY2C
- Inductive Proximity Sensors — Diameter, Sensing Distance, Flush Mounting, PNP/NPN and NO/NC Explained
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XS630B4PBM12?
- XS630B4PBM12 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XS630B4PBM12.
- What is the HS code for XS630B4PBM12?
- The customs tariff (HS) code for XS630B4PBM12 is 8536.50.
- Who manufactures XS630B4PBM12?
- XS630B4PBM12 is a Telemecanique product in the Sensors & Instrumentation range.
- Is a datasheet available for XS630B4PBM12?
- Yes — the XS630B4PBM12 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XS630B4PBM12?
- The minimum order quantity is 1.
- Is XS630B4PBM12 available?
- Yes — XS630B4PBM12 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
