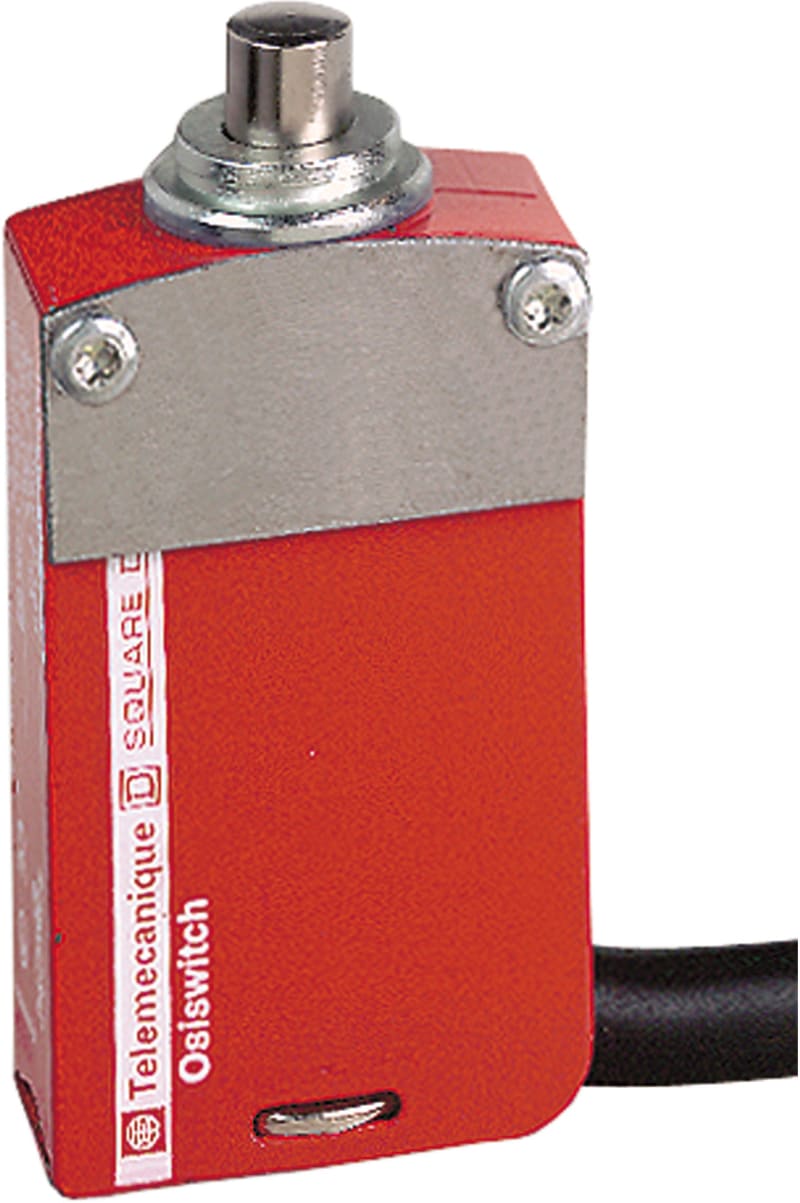

Telemecanique XCSM3910L1 Safety Limit Switch
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XCSM3910L1 safety limit switch with positive opening contacts.
Technical Specifications
- Manufacturer part number (MPN)
- XCSM3910L1
- EAN / GTIN
- 3666916046586
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 55 pcs
- Type of locking
- Operating current principle
- Rated operation current Ie at AC-15, 230 V
- 1.5 A
- Rated operation current Ie at DC-13, 230 V
- 0.1 A
- Housing material
- Metal
- Suitable for safety functions
- Yes
- With status indication
- No
- Type of interface for safety communication
- None
- Type of electric connection
- With cable preassembled
- Explosion safety category for gas
- None
- Degree of protection (IP)
- IP68
- Type of interface
- None
- Rated control supply voltage magnet drive AC 50 Hz
- 240 V
- Rated control supply voltage magnet drive AC 60 Hz
- 240 V
- Rated control supply voltage magnet drive DC
- 250 V
- Width sensor
- 30 mm
- With escape release
- No
- Height of sensor
- 60 mm
- Length of sensor
- 16 mm
- Ambient temperature during operating
- -25–70 °C
- Guard locking force
- 42.5 N
- Number of contacts as normally closed contact
- 2
- Number of contacts as normally open contact
- 1
- With auxiliary release
- No
- Type of guard locking
- Quiescent current principle
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916046586
- SAP 1000067790
- Code 8753611
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XMLA500D2S12 Pressure Switch, 30–500 bar
Telemecanique
Telemecanique XUB0SKSNL2T Photoelectric Emitter M18, 2 m cable
Telemecanique
Telemecanique XZCPV1865L5 Sensor Cable, M8 female, 3-pin, PVC, 5 m
Telemecanique
Telemecanique XMLR400M1N26 Pressure Sensor with Display, 0–400 bar, 4–20 mA + 1× NPN
Telemecanique
Telemecanique XUB2ANBNL2R Photoelectric Through-Beam Receiver, Plastic, NPN, NC, 2 m cable
Telemecanique
Telemecanique ZCKMD39 Limit Switch Body, Metal, NO+2NC, Snap-action, PG13.5 cable entry
Telemecanique
Telemecanique Lens for Extended Sensing Distance Photoelectric Sensor
XUFZ01
Telemecanique
Telemecanique ZCKE06TK Operating Head for ZCK Limit Switches
Technical guides
- Limit Switch and Position Switch Finder — by Actuator (Roller Plunger, Roller Lever, Rod Lever, Plunger, Spring Rod) and Contacts — Telemecanique XCK, Siemens 3SE5, Eaton LS, R. Stahl Ex
- Emergency Stop Rope Pull Switches — Covering Conveyors to EN ISO 13850 with XY2C
- Inductive Proximity Sensors — Diameter, Sensing Distance, Flush Mounting, PNP/NPN and NO/NC Explained
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XCSM3910L1?
- XCSM3910L1 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XCSM3910L1.
- What is the HS code for XCSM3910L1?
- The customs tariff (HS) code for XCSM3910L1 is 8536.90.
- Who manufactures XCSM3910L1?
- XCSM3910L1 is a Telemecanique product in the Safety & Detection range.
- Is a datasheet available for XCSM3910L1?
- Yes — the XCSM3910L1 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XCSM3910L1?
- The minimum order quantity is 1.
- Is XCSM3910L1 available?
- Yes — XCSM3910L1 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
