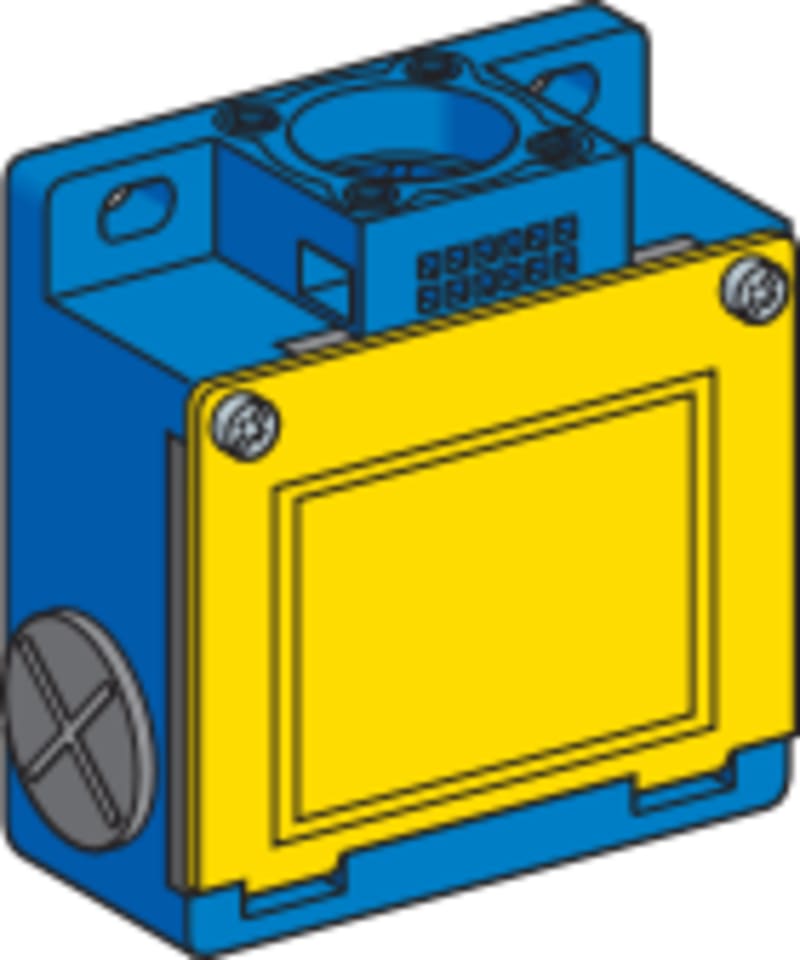

Telemecanique ZCKMD39 Limit Switch Body, Metal, NO+2NC, Snap-action, PG13.5 cable entry
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique ZCKMD39 limit switch body (contact block), metal housing, NO+2NC snap-action contacts, PG13.5 cable entry; combines with ZCK/ZC2 operating heads to form a complete limit switch.
Technical Specifications
- Manufacturer part number (MPN)
- ZCKMD39
- EAN / GTIN
- 3666916043516
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Contact configuration
- NO + 2 NC
- Switching function
- Quick-break switch
- Rated operation current Ie at AC-15, 230 V
- 1.5 A
- Rated operation current Ie at DC-13, 230 V
- 0.1 A
- Housing material
- Metal
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry PG
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP65
- Forced opening
- Yes
- Type of control element
- None
- Type of interface
- None
- Output electronic
- No
- Width sensor
- 64 mm
- Height of sensor
- 64 mm
- Length of sensor
- 30 mm
- Switching function latching
- No
- Number of contacts as normally closed contact
- 2
- Number of contacts as normally open contact
- 1
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916043516
- SAP 1000341182
- Code 8375570
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique Lens for Extended Sensing Distance Photoelectric Sensor
XUFZ01
Telemecanique

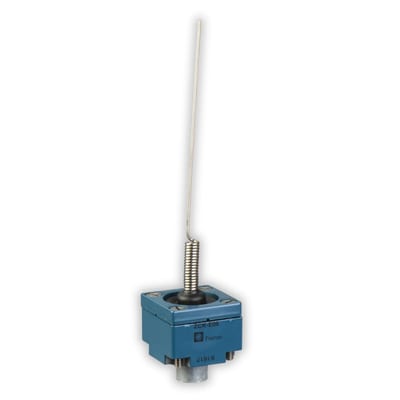

Telemecanique ZCKE06TK Operating Head for ZCK Limit Switches
