Telemecanique XXT18A3M12 Ultrasonic Sensor (Through-Beam Emitter) M18, M12 connector
Pricing
Request a quote
We reply within 24 hours
Product Description

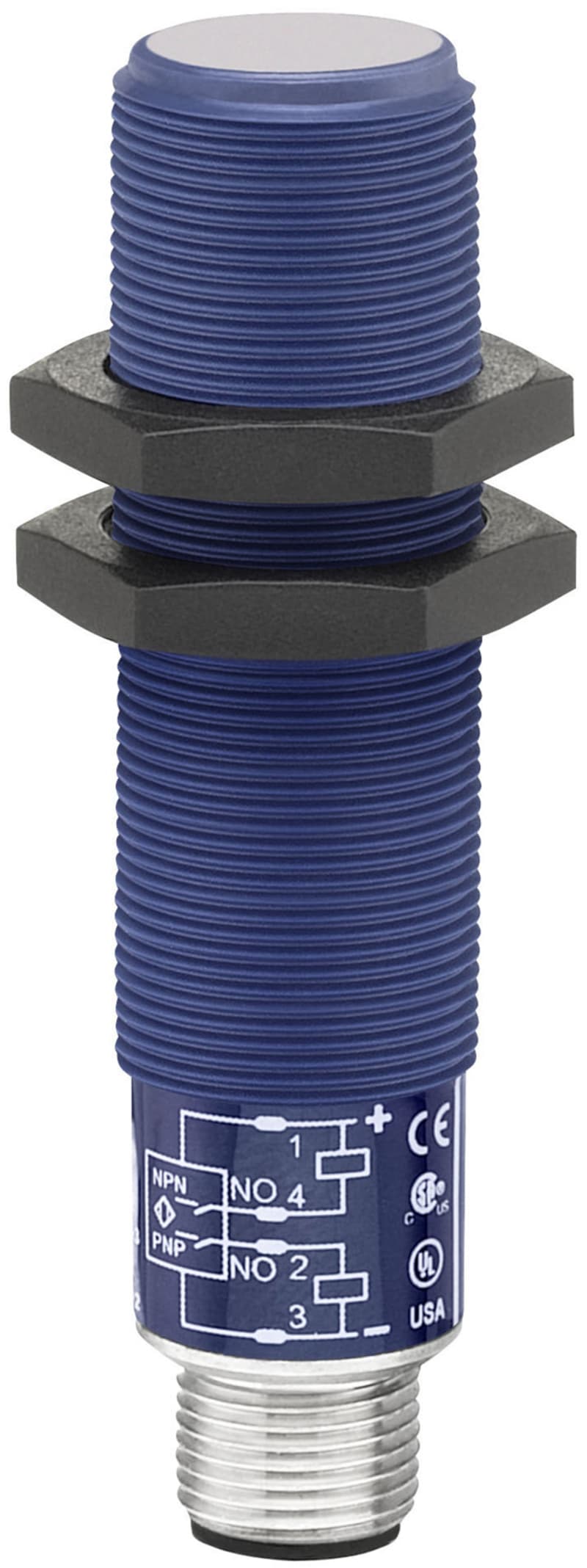

Telemecanique OsiSense XXT18A3M12 ultrasonic sensor, through-beam emitter, M18 body, M12 connector.
Technical Specifications
- Manufacturer part number (MPN)
- XXT18A3M12
- EAN / GTIN
- 3666916101605
- Sales unit
- pcs
- Package quantity
- 22 pcs
- Voltage type
- DC
- Housing material
- Plastic
- Ambient temperature
- 0–60 °C
- Type of electric connection
- Connector M12
- Blind zone
- 600 mm
- Explosion safety category for gas
- None
- Construction type housing
- Cylinder, screw-thread
- No-load current
- 40 mA
- Relative linearity deflection
- 0 %
- Relative repeat accuracy
- 1.27 %
- Synchronisation possible
- No
- Supply voltage
- 12–24 V
- Material active area of sensor
- Plastic
- Degree of protection (IP)
- IP67
- Width sensor
- 18 mm
- Diameter sensor
- 18 mm
- Height of sensor
- 18 mm
- Length of sensor
- 65 mm
- Measuring range length
- 0–610 mm
- Country of origin
- United States
Standards & Compliance
- HS Code
- 9031.80
Cross References
- EAN 3666916101605
- SAP 1000342362
- Code 8377443
