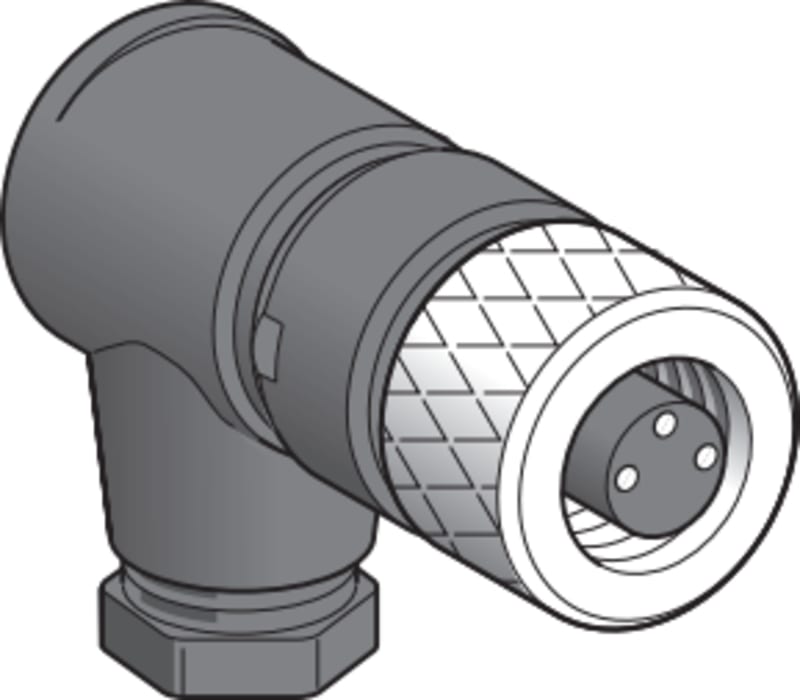

Telemecanique XZCC8FCM30S Field-Wireable Connector, M8, Female, Angled
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XZCC8FCM30S field-wireable (user-attachable) connector, M8 female angled, screw-clamp wiring, for sensor and actuator cabling.
Technical Specifications
- Manufacturer part number (MPN)
- XZCC8FCM30S
- EAN / GTIN
- 3666916069806
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Connector
- M8
- Contact type
- Pin
- Diameter connector
- 8 mm
- Thread size M
- 12
- Number of data contacts
- 3
- For cable outer diameter
- 9.5 mm
- Type of housing
- Angled
- Rated current In
- 4 A
- Ambient temperature
- -40–85 °C
- Rated voltage
- 60 V
- Connectable conductor cross section solid-core
- 0–0.25 mm²
- Connectable conductor cross section multi-wired
- 0–0.25 mm²
- Type of electric connection
- Soldering connection
- With interlocking device
- No
- Housing material
- Plastic
- Coating housing
- None
- Type of locking
- None
- Operating temperature
- -40–85 °C
- With protective conductor
- No
- Degree of protection (IP), mounted
- IP67K
- Screened
- No
- With status indication
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916069806
- SAP 1000064142
- Code 8900164
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XMLP250MD21F Pressure Transmitter, 0.5–4.5 V ratiometric, G 1/4
Telemecanique

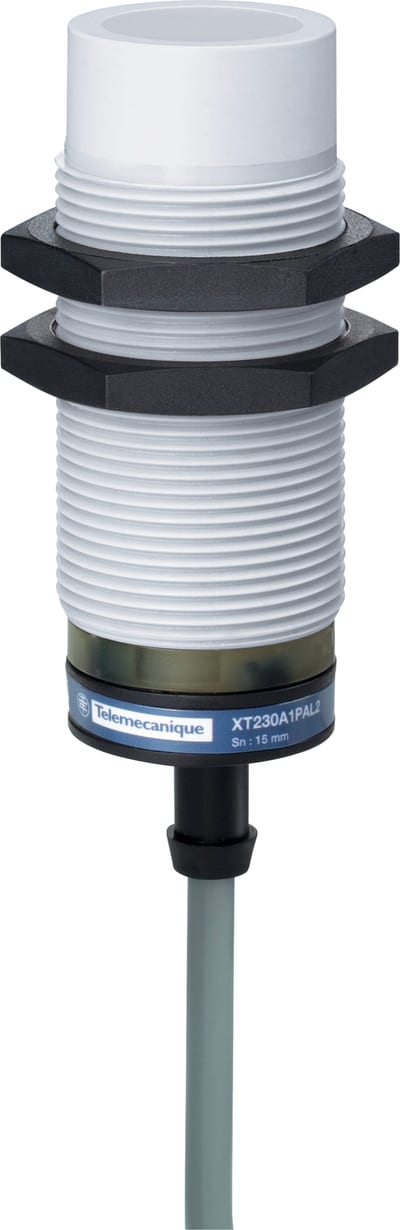

Telemecanique XT230A1NAL2 Capacitive Proximity Sensor Ø30 mm, NPN, NO, 2 m cable
Telemecanique

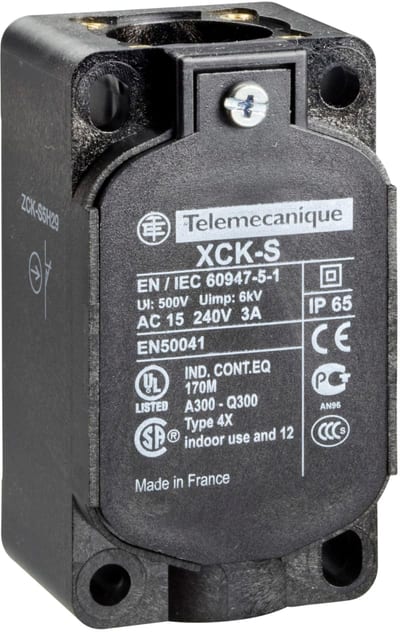

Telemecanique ZCKSD39H29 Limit Switch Body, Plastic, NO+2NC, Snap-action, M20 cable entry
