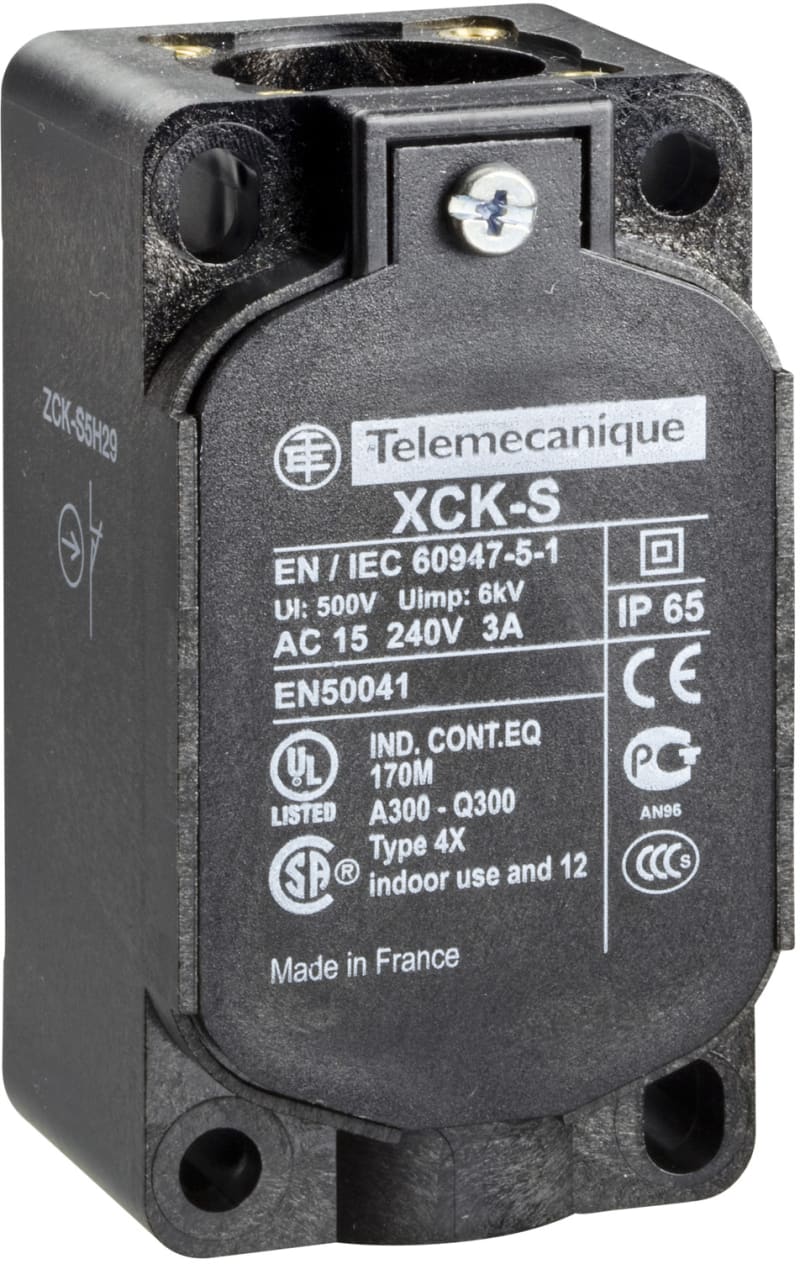

Telemecanique ZCKSD39H29 Limit Switch Body, Plastic, NO+2NC, Snap-action, M20 cable entry
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique ZCKSD39H29 limit switch body (contact block), plastic housing, NO+2NC snap-action contacts, M20 cable entry; combines with ZCK/ZC2 operating heads to form a complete limit switch.
Technical Specifications
- Manufacturer part number (MPN)
- ZCKSD39H29
- EAN / GTIN
- 3666916043271
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Thread size
- M20
- Contact configuration
- NO + 2 NC
- Switching function
- Quick-break switch
- Rated operation current Ie at AC-15, 230 V
- 1.5 A
- Rated operation current Ie at DC-13, 230 V
- 0.1 A
- Housing material
- Plastic
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry metrical
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP65
- Forced opening
- Yes
- Type of control element
- None
- Type of interface
- None
- Output electronic
- No
- Width sensor
- 40 mm
- Height of sensor
- 73 mm
- Length of sensor
- 36 mm
- Switching function latching
- No
- Ambient temperature during operating
- -25–70 °C
- Number of contacts as normally closed contact
- 2
- Number of contacts as normally open contact
- 1
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916043271
- SAP 1000340452
- Code 8374444
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XMEP060BT21F Pressure Transmitter, 0–60 bar, G 1/4 A, 0.5–4.5 V ratiometric, Deutsch DT04 connector
Telemecanique
Telemecanique XCSLF2525342 Safety Limit Switch, 2 NO + 2 NC
Telemecanique

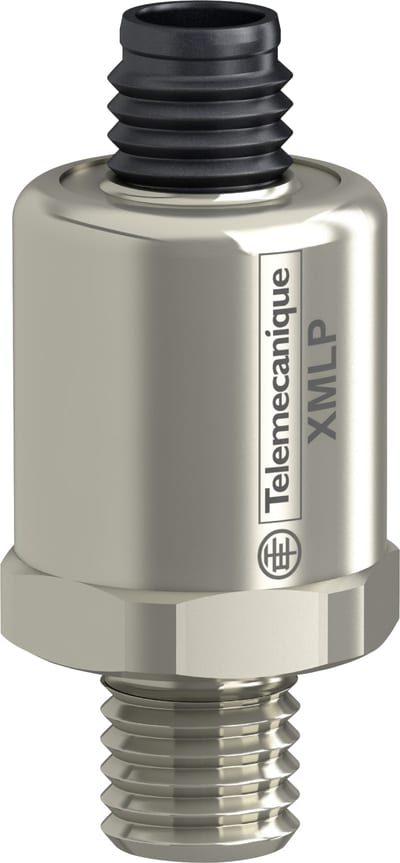

Telemecanique XMLP100PD230Q Pressure Transmitter, 0–100 psi, 0.5–4.5 V ratiometric, 1/4" NPT, M12 connector
Telemecanique

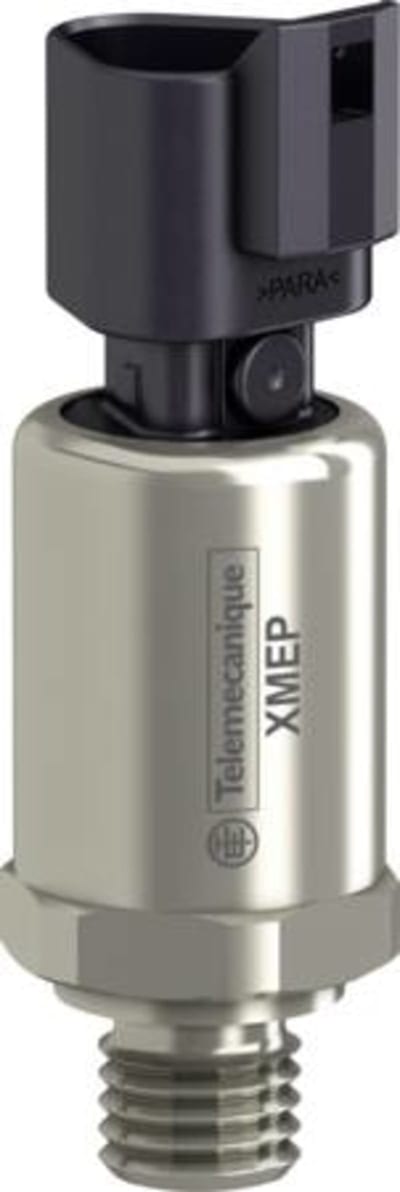

Telemecanique XMEP600BT21F Pressure Transmitter, 0–600 bar, G 1/4 A, 0.5–4.5 V ratiometric, Deutsch DT04 connector
Telemecanique

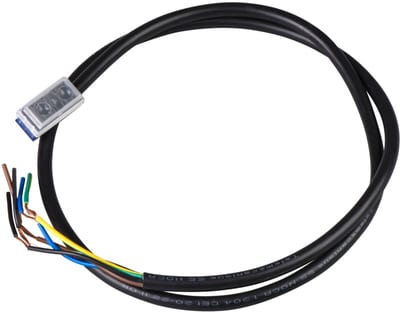

Telemecanique ZCMC21L7 Contact Body for XCM Limit Switches, 1 NO + 1 NC, snap action, 7 m cable
Telemecanique

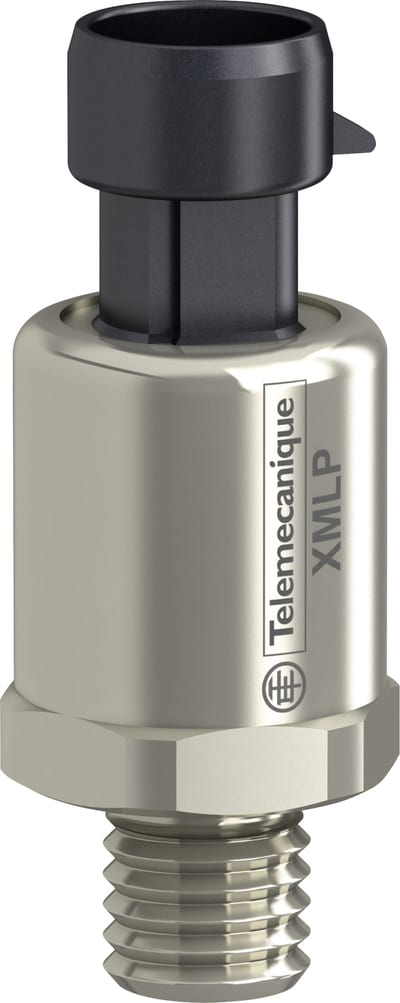

Telemecanique XMLP200PP230 Pressure Transmitter, 0–200 psi, 0.5–4.5 V ratiometric, 1/4" NPT, Packard connector
Telemecanique

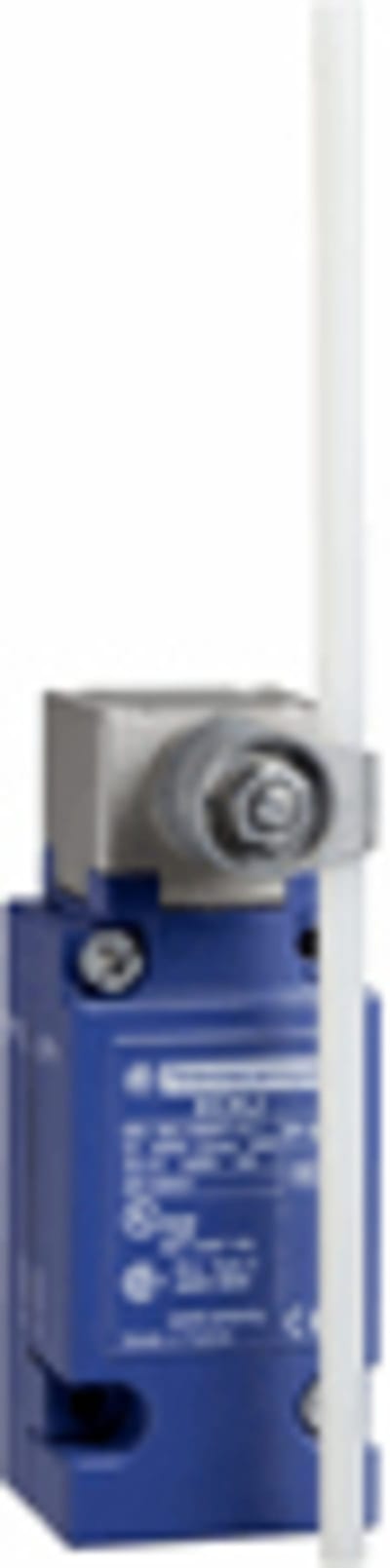

Telemecanique XCKJ110559H29 Limit Switch, Glass-Fibre Rod Lever, M20 entry
Telemecanique

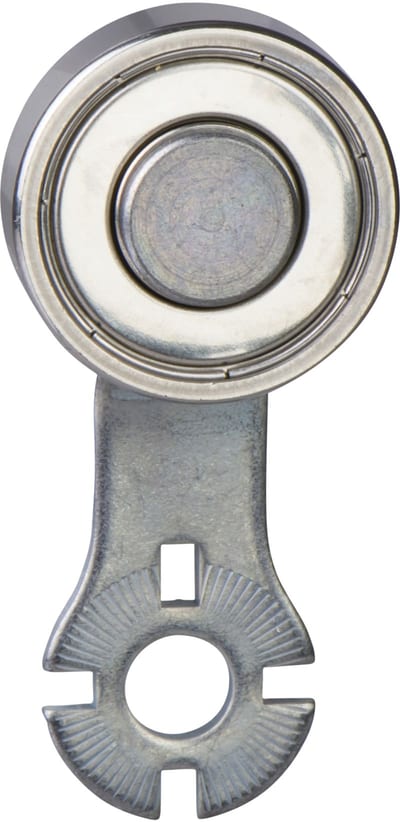

Telemecanique ZCKY33 Actuator Lever for ZCK Limit Switches
