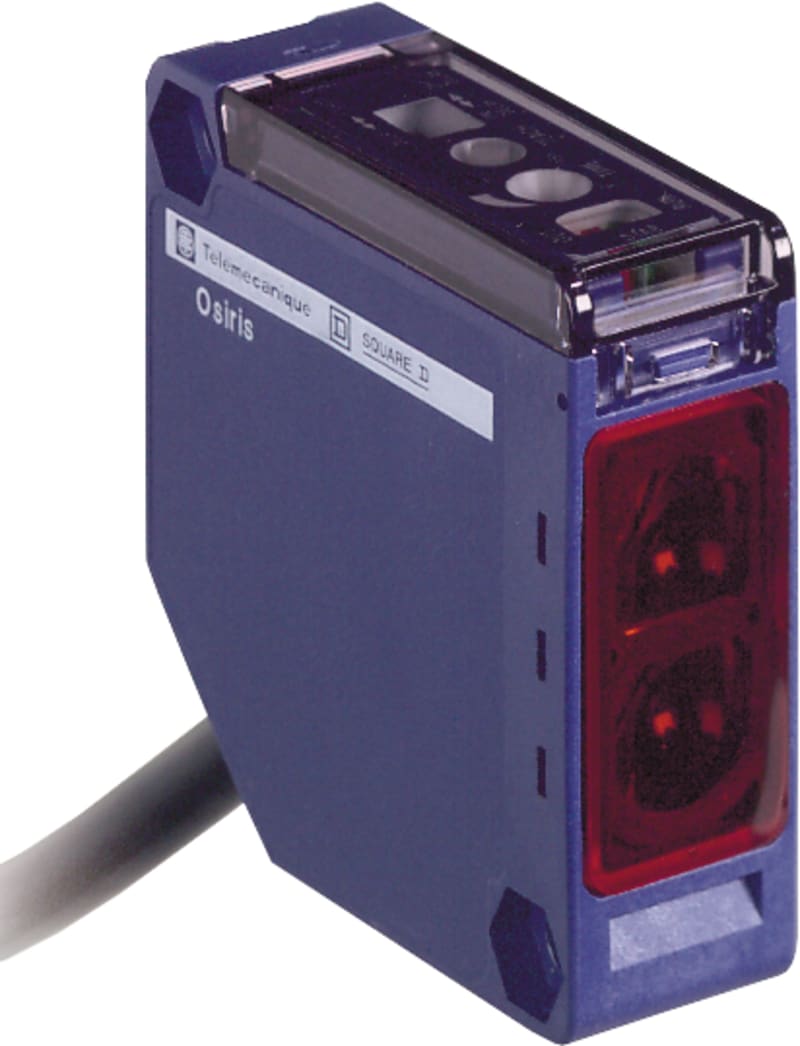

Telemecanique XUK2ARCNL10R Photoelectric Through-Beam Receiver, Plastic, AC/DC Multi-Voltage, Relay Output, 10 m cable
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique OsiSense XUK2ARCNL10R photoelectric through-beam receiver, Compact 50 × 50 mm, plastic housing, AC/DC multi-voltage with relay output, rated distance 30 m, 10 m cable.
Technical Specifications
- Manufacturer part number (MPN)
- XUK2ARCNL10R
- EAN / GTIN
- 3666916033395
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Contact configuration
- NO / NC
- Scope of delivery of the one-way system
- Receiver
- Pre failure notice
- No
- With time function
- No
- Rated switching distance
- 30000 mm
- Max. switching distance
- 45000 mm
- Max. output current
- 3000 mA
- With reflector
- No
- Analogue output 0 V ... 10 V
- No
- Analogue output 0 mA ... 20 mA
- No
- Analogue output 4 mA ... 20 mA
- No
- Analogue output -10 V ... +10 V
- No
- With other analogue output
- No
- With communication interface analogue
- No
- With communication interface AS-Interface
- No
- With communication interface CANOpen
- No
- With communication interface DeviceNet
- No
- With communication interface Ethernet
- No
- With communication interface INTERBUS
- No
- With communication interface PROFIBUS
- No
- With communication interface RS-232
- No
- With communication interface RS-422
- No
- With communication interface RS-485
- No
- With communication interface SSD
- No
- With communication interface SSI
- No
- Number of semiconductor outputs with signalling function
- 2
- Number of protected semiconductor outputs
- 2
- Type of electric connection
- Cable radial
- Type of switching output
- Relay contact
- Type of switch function
- Programmable/configurable
- Operation agent-safety class
- Safety class 0
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Width sensor
- 18 mm
- Height of sensor
- 50 mm
- Length of sensor
- 50 mm
- Sensing mode
- Dark switching
- Material of optical surface
- Plastic
- Housing material
- Plastic
- Min. reflector distance
- 15000 mm
- Response time
- 25 ms
- Switching frequency
- 20 Hz
- Type of safety according to IEC 61496-1
- 1
- Voltage type
- AC/DC
- With monitoring function downstream switching devices
- No
- Laser protection class
- None
- Type of light
- Infrared light
- Material of cable sheath
- Polyvinyl chloride (PVC)
- With restart blockage
- No
- Suitable for safety functions
- No
- Degree of protection (IP)
- IP65
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916033395
- SAP 1000073397
- Code 8791654
