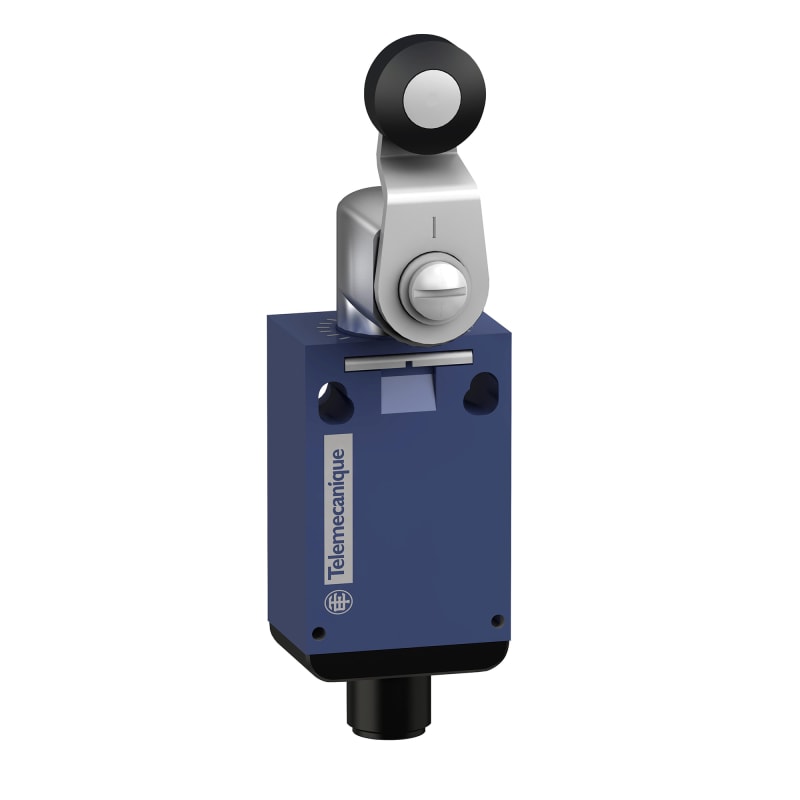

Limit switch with M12 connector (XCMV2115M12)
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique limit switch metal NC+NO snap - arm with plastic roll - M12.
Technical Specifications
- Manufacturer part number (MPN)
- XCMV2115M12
- EAN / GTIN
- 3666916052983
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Thread size
- M12
- Switching function
- Quick-break switch
- Housing material
- Metal
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP66
- Forced opening
- Yes
- Type of control element
- Plunger
- Type of interface
- None
- Output electronic
- No
- Rated operation current Ie at DC-13, 24 V
- 1 A
- Width sensor
- 30 mm
- Height of sensor
- 104 mm
- Length of sensor
- 38 mm
- Switching function latching
- No
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 1
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916052983
- SAP 1200399014
- Code 82435468
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XUSL4E30H031N Safety Light Curtain Type 4, Hand Detection (30 mm), 310 mm Height
Telemecanique

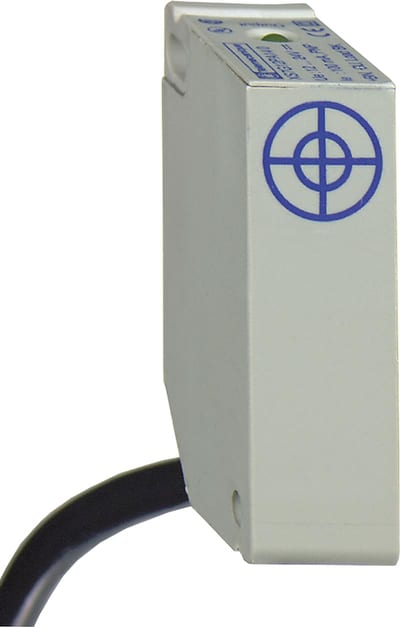

IND.Transmitter 10-30V DC PNP 1NO
XS7G12PA140S
Telemecanique

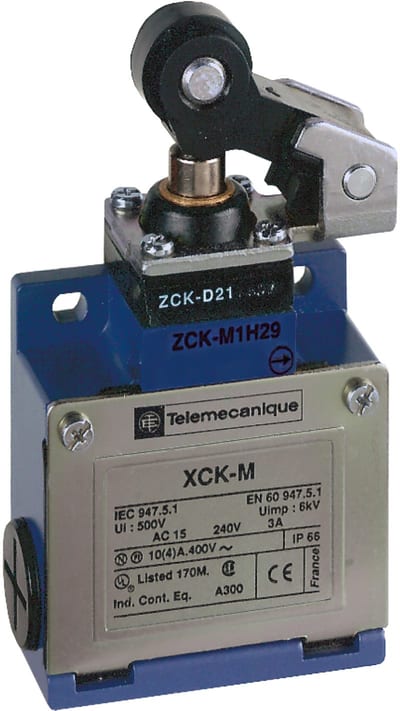

Telemecanique XCKM521H29 Limit Switch, Plunger, 1 NO + 1 NC, M20 entry
