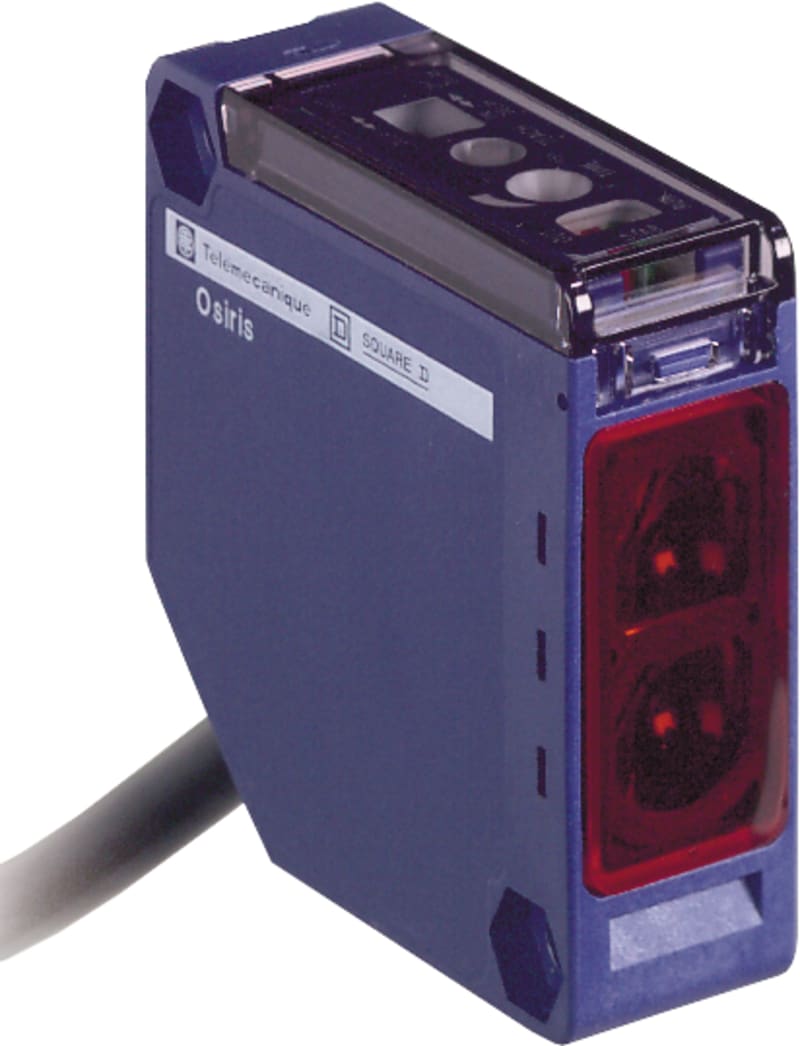

Telemecanique XUK0AKSAL10 Multimode Photoelectric Sensor, Plastic, PNP/NPN selectable, 10 m cable

Telemecanique OsiSense XUK0AKSAL10 photoelectric multimode sensor (through-beam, reflex and diffuse modes), Compact 50 × 50 mm, plastic housing, PNP/NPN selectable programmable output, rated distance 4 m, 10 m cable.

Manufacturer part number (MPN)

XUK0AKSAL10

EAN / GTIN

3666916033777

Sales unit

pcs

Package quantity

12 pcs

Output type

PNP/NPN

Scope of delivery of the one-way system

Transmitter and receiver

Pre failure notice

No

With time function

No

Rated switching distance

4000 mm

Max. switching distance

5700 mm

Max. output current

100 mA

With reflector

No

Analogue output 0 V ... 10 V

No

Analogue output 0 mA ... 20 mA

No

Analogue output 4 mA ... 20 mA

No

Analogue output -10 V ... +10 V

No

With other analogue output

No

Setting procedure

Teach-In

With communication interface analogue

No

With communication interface AS-Interface

No

With communication interface CANOpen

No

With communication interface DeviceNet

No

With communication interface Ethernet

No

With communication interface INTERBUS

No

With communication interface PROFIBUS

No

With communication interface RS-232

No

With communication interface RS-422

No

With communication interface RS-485

No

With communication interface SSD

No

With communication interface SSI

No

Number of semiconductor outputs with signalling function

1

Number of protected semiconductor outputs

1

Type of electric connection

Cable radial

Type of switching output

PNP/NPN

Type of switch function

Programmable/configurable

Operation agent-safety class

Safety class 0

Explosion safety category for gas

None

Explosion safety category for dust

None

Construction type housing

Cuboid

Width sensor

18 mm

Height of sensor

50 mm

Length of sensor

50 mm

Sensing mode

Dark switching

Material of optical surface

Plastic

Housing material

Plastic

Max. output current at protected output

100 mA

Min. reflector distance

0 mm

Ambient temperature

-25–55 °C

Response time

2 ms

Switching frequency

250 Hz

Type of safety according to IEC 61496-1

1

Rated control supply voltage DC

12–24 V

Voltage type

AC/DC

With monitoring function downstream switching devices

No

Laser protection class

None

Type of light

Polarized red light

With restart blockage

No

Suitable for safety functions

No

Degree of protection (IP)

IP65

Country of origin

Indonesia

HS Code

8536.50
