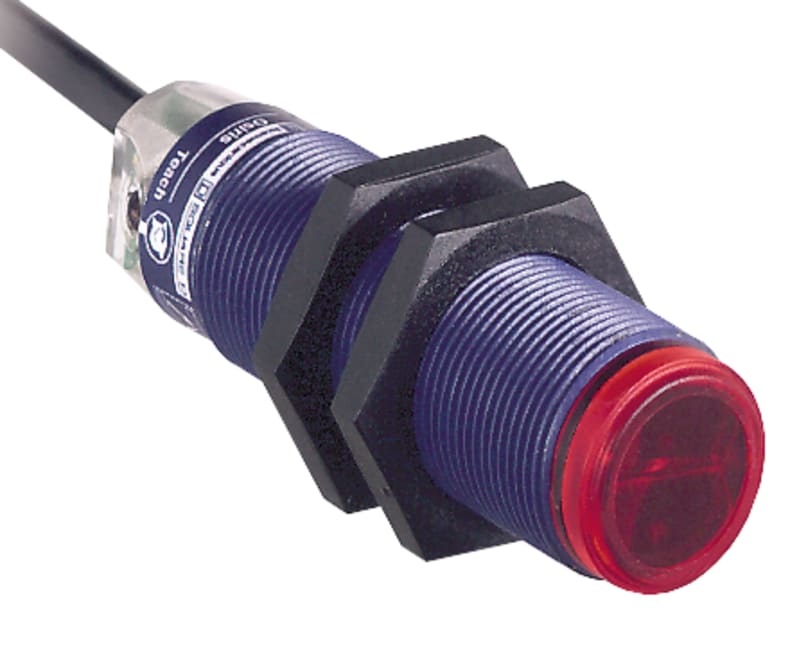

Telemecanique XUB9ANBNL2 Laser Photoelectric Sensor, Polarised Reflex, Plastic, NPN, NC, 2 m cable
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique OsiSense XUB9ANBNL2 laser photoelectric sensor, polarised reflex, Ø18 mm (M18), plastic housing, NPN NC output, rated distance 2 m, 2 m cable.
Technical Specifications
- Manufacturer part number (MPN)
- XUB9ANBNL2
- EAN / GTIN
- 3666916035931
- Sales unit
- pcs
- Package quantity
- 11 pcs
- Output type
- NPN
- Contact configuration
- NC
- Pre failure notice
- No
- With time function
- No
- Rated switching distance
- 2000 mm
- Max. switching distance
- 3000 mm
- Max. output current
- 100 mA
- With reflector
- No
- Analogue output 0 V ... 10 V
- No
- Analogue output 0 mA ... 20 mA
- No
- Analogue output 4 mA ... 20 mA
- No
- Analogue output -10 V ... +10 V
- No
- With other analogue output
- No
- With communication interface analogue
- No
- With communication interface AS-Interface
- No
- With communication interface CANOpen
- No
- With communication interface DeviceNet
- No
- With communication interface Ethernet
- No
- With communication interface INTERBUS
- No
- With communication interface PROFIBUS
- No
- With communication interface RS-232
- No
- With communication interface RS-422
- No
- With communication interface RS-485
- No
- With communication interface SSD
- No
- With communication interface SSI
- No
- Number of semiconductor outputs with signalling function
- 1
- Number of protected semiconductor outputs
- 1
- Type of electric connection
- Cable radial
- Type of switching output
- NPN/NPN
- Type of switch function
- Breaker contact (NC)
- Operation agent-safety class
- Safety class 0
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cylinder, screw-thread
- Diameter sensor
- 18 mm
- Length of sensor
- 48 mm
- Sensing mode
- Light-/dark switching
- Material of optical surface
- Plastic
- Housing material
- Plastic
- Max. output current at protected output
- 100 mA
- Min. reflector distance
- 1000 mm
- Ambient temperature
- -25–55 °C
- Response time
- 1 ms
- Switching frequency
- 500 Hz
- Type of safety according to IEC 61496-1
- 1
- Rated control supply voltage DC
- 12–24 V
- Voltage type
- AC/DC
- With monitoring function downstream switching devices
- No
- Laser protection class
- None
- Type of light
- Polarized red light
- With restart blockage
- No
- Suitable for safety functions
- No
- Degree of protection (IP)
- IP67K
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916035931
- SAP 1000003762
- Code 825154
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique ZCKJD39H29 Limit Switch Body, Metal, Snap-action, M20 cable entry
Telemecanique
Telemecanique ZCKS2 Limit Switch Body for ZCK Limit Switches
Telemecanique
Telemecanique XMLR001G1P25 Pressure Sensor with Display, 0–1 bar, 4–20 mA + 1× PNP
Telemecanique
Telemecanique XMEP250BD21F Pressure Transmitter, 0–250 bar, G 1/4 A, 0.5–4.5 V ratiometric
Telemecanique
Telemecanique ZCKS1 Limit Switch Body, Plastic, Snap-action, PG cable entry
Telemecanique
Telemecanique OsiSense XS518BLPBL2 Inductive Proximity Sensor — M18 barrel, Sn 5 mm, PNP, NC, pre-wired cable
Telemecanique
Telemecanique XCKVR44D2H29 Limit Switch, M20 entry
Telemecanique
Telemecanique XZCP1764L5 Sensor Cable, M8 female, 5-pin, 5 m
Technical guides
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XUB9ANBNL2?
- XUB9ANBNL2 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XUB9ANBNL2.
- What is the HS code for XUB9ANBNL2?
- The customs tariff (HS) code for XUB9ANBNL2 is 8536.50.
- Who manufactures XUB9ANBNL2?
- XUB9ANBNL2 is a Telemecanique product in the Sensors & Instrumentation range.
- Is a datasheet available for XUB9ANBNL2?
- Yes — the XUB9ANBNL2 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XUB9ANBNL2?
- The minimum order quantity is 1.
- Is XUB9ANBNL2 available?
- Yes — XUB9ANBNL2 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
