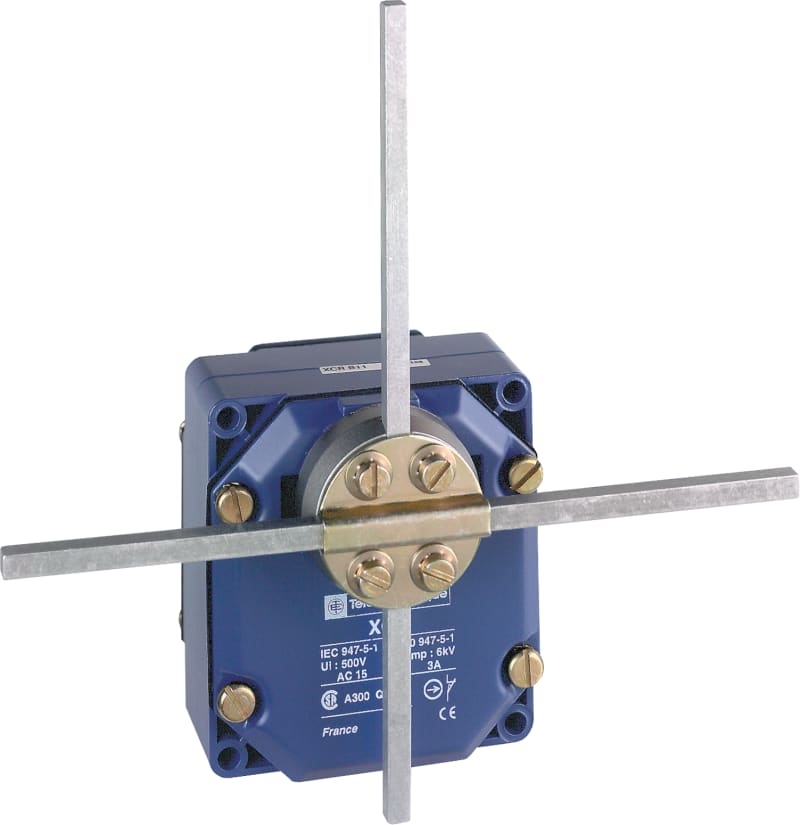

Telemecanique XCKVR44D2H29 Limit Switch, M20 entry
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XCKVR44D2H29 limit switch (position switch), M20 entry.
Technical Specifications
- Manufacturer part number (MPN)
- XCKVR44D2H29
- EAN / GTIN
- 3666916057766
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Switching function
- Slow-action switch and quick-break switch
- Rated operation current Ie at AC-15, 230 V
- 3 A
- Housing material
- Plastic
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP65
- Forced opening
- Yes
- Type of control element
- Rotary lever
- Type of interface
- None
- Output electronic
- No
- Rated operation current Ie at DC-13, 125 V
- 0.55 A
- Width sensor
- 200 mm
- Height of sensor
- 200 mm
- Length of sensor
- 66 mm
- Switching function latching
- No
- Ambient temperature during operating
- -25–70 °C
- Number of contacts as normally closed contact
- 2
- Number of contacts as normally open contact
- 2
- Alignment of the control element
- Roller cam crossed
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916057766
- SAP 1000336162
- Code 8907267
Product Documentation
