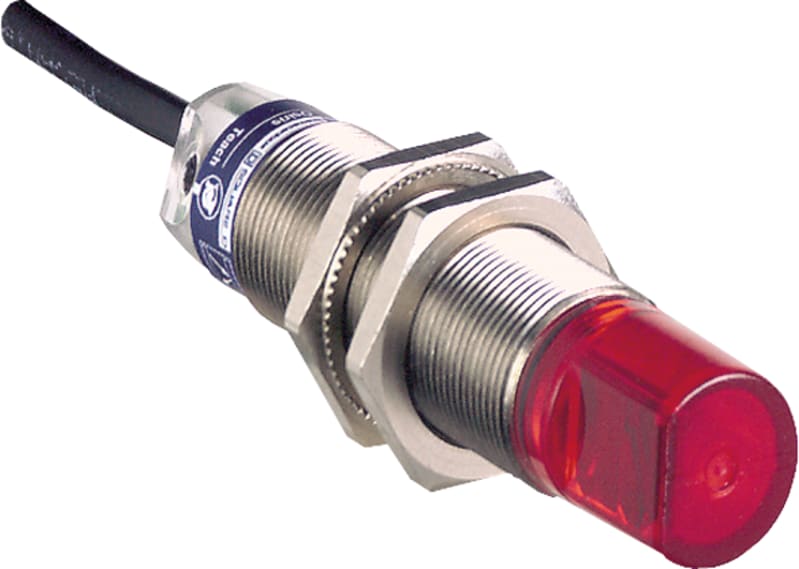

Telemecanique XUB5BNAWL2 Photoelectric Sensor M18, Metal, NPN, 2 m cable
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XUB5BNAWL2 XUB M18 cylindrical photoelectric sensor, metal housing, NPN output, 2 m cable.
Technical Specifications
- Manufacturer part number (MPN)
- XUB5BNAWL2
- EAN / GTIN
- 3666916036105
- Sales unit
- pcs
- Package quantity
- 22 pcs
- Output type
- NPN
- Contact configuration
- NO
- Voltage type
- AC/DC
- Max. output current
- 100 mA
- Housing material
- Metal
- Suitable for safety functions
- No
- Ambient temperature
- -25–55 °C
- With time function
- No
- Switching frequency
- 500 Hz
- Number of semiconductor outputs with signalling function
- 1
- Number of protected semiconductor outputs
- 1
- Type of electric connection
- Cable radial
- Type of switching output
- NPN/NPN
- Type of switch function
- Normally open contact (NO)
- Rated control supply voltage DC
- 12–24 V
- Operation agent-safety class
- Safety class 0
- Setting procedure
- Manual adjustment
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cylinder, screw-thread
- Laser protection class
- None
- Type of light
- Infrared light
- Max. output current at protected output
- 100 mA
- Min. reflector distance
- 0.3 mm
- With monitoring function downstream switching devices
- No
- With restart blockage
- No
- Response time
- 1 ms
- Transmission range of the safety field
- 0.3 m
- Type of safety according to IEC 61496-1
- 1
- Pre failure notice
- No
- Material of optical surface
- Plastic
- Material of cable sheath
- PUR vulcanized
- Degree of protection (IP)
- IP67K
- Analogue output 0 V ... 10 V
- No
- Analogue output 0 mA ... 20 mA
- No
- Analogue output -10 V ... +10 V
- No
- Analogue output 4 mA ... 20 mA
- No
- Diameter sensor
- 18 mm
- With communication interface analogue
- No
- With communication interface AS-Interface
- No
- With communication interface CANOpen
- No
- With communication interface DeviceNet
- No
- With communication interface Ethernet
- No
- With communication interface INTERBUS
- No
- With communication interface PROFIBUS
- No
- With communication interface RS-232
- No
- With communication interface RS-422
- No
- With communication interface RS-485
- No
- With communication interface SSD
- No
- With communication interface SSI
- No
- Length of sensor
- 78 mm
- Max. switching distance
- 800 mm
- With reflector
- No
- With other analogue output
- No
- Sensing mode
- Light switching
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916036105
- SAP 1000062462
- Code 8922945
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique OsiSense XS618B2PBL01M12 Inductive Proximity Sensor — M18 barrel, Sn 9 mm, NPN, NC, M12 connector (4-Pin)
Telemecanique
Telemecanique XUSL2E30H091N Safety Light Curtain Type 2, 30 mm resolution, hand detection, 910 mm protected height
Telemecanique

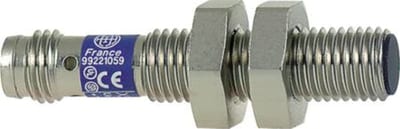

Telemecanique OsiSense XS612B1DAM12 Inductive Proximity Sensor — M12 barrel, Sn 4 mm, 2-Wire DC, NO, M12 connector (4-Pin)
Telemecanique

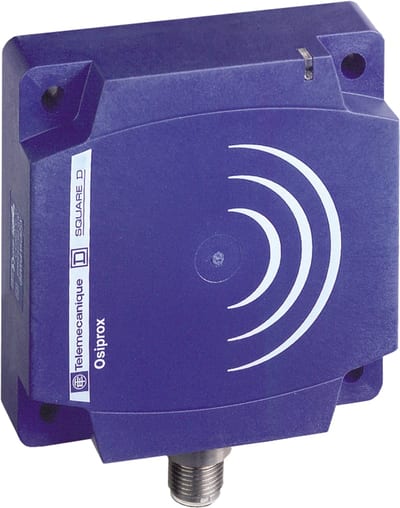

Telemecanique OsiSense XS7D1A1PBM12 Inductive Proximity Sensor — 80 × 80 mm block, Sn 40 mm, PNP, NC, M12 connector (4-Pin)
Telemecanique

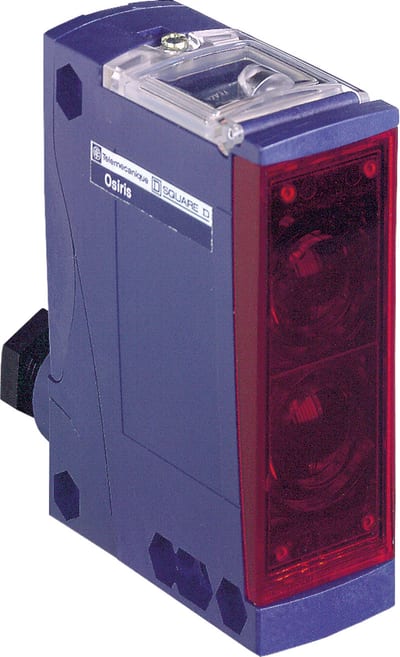

Telemecanique XUX2APBNT16R Photoelectric Through-Beam Receiver, Plastic, PNP, NC, Screw terminals
Telemecanique

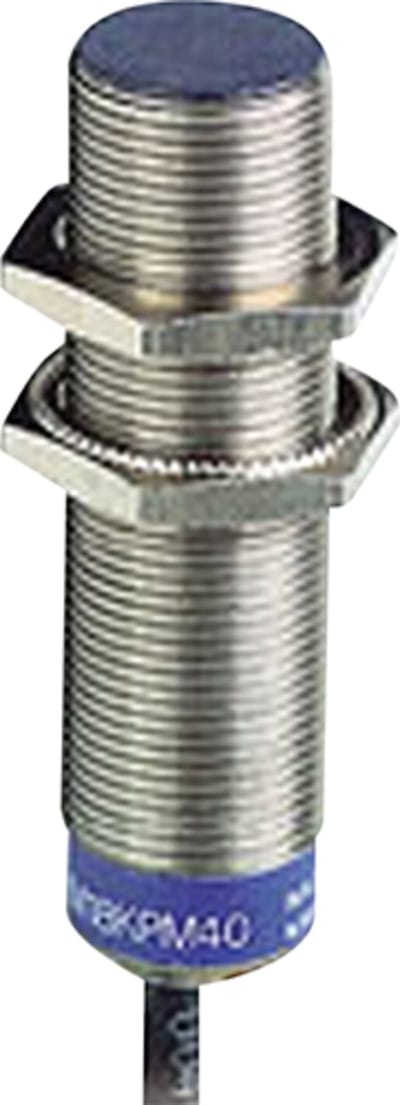

Telemecanique OsiSense XS530B1MAL2 Inductive Proximity Sensor — M30 barrel, Sn 10 mm, 2-Wire AC/DC, NO, pre-wired cable (2 m)
Telemecanique

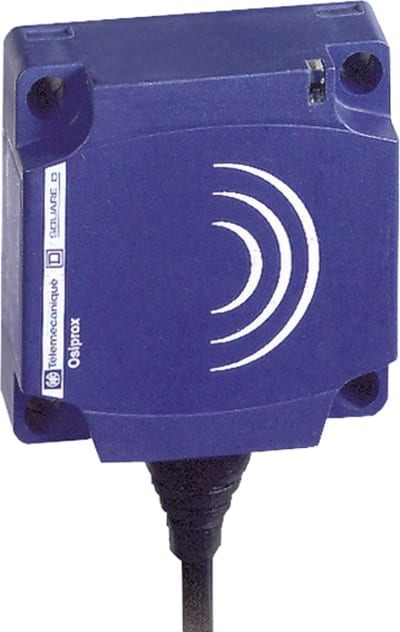

Telemecanique OsiSense XS7C1A1PBL5 Inductive Proximity Sensor — 40 × 40 mm block, Sn 15 mm, PNP, NC, pre-wired cable
Telemecanique

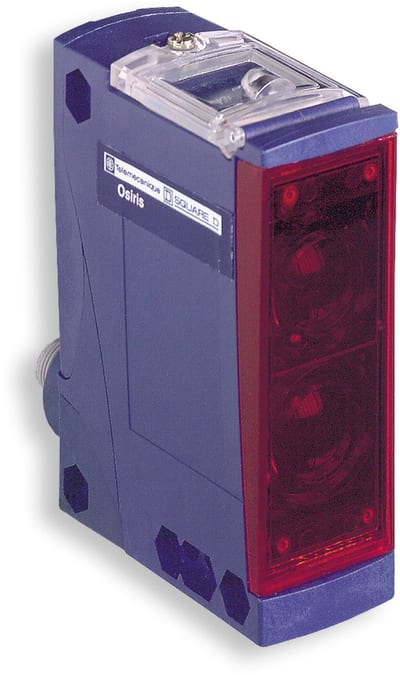

Telemecanique XUX5APANM12 Photoelectric Sensor, Diffuse, Plastic, PNP, NO, M12 connector
