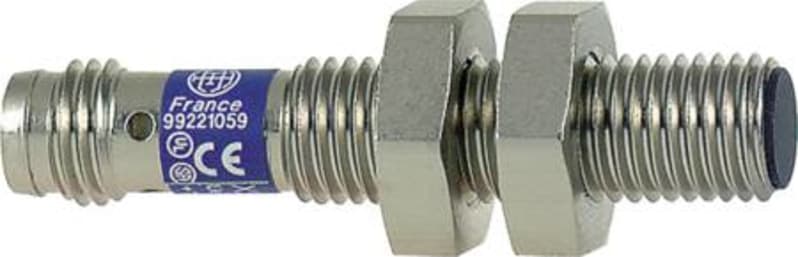

Telemecanique OsiSense XS612B1DAM12 Inductive Proximity Sensor — M12 barrel, Sn 4 mm, 2-Wire DC, NO, M12 connector (4-Pin)
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XS612B1DAM12 is an OsiSense XS inductive proximity sensor in an M12 nickel-plated brass threaded barrel, with a nominal sensing distance (Sn) of 4 mm. It provides a 2-wire DC output, switching NO (normally open), via M12 connector (4-pin). Rated supply 12…48 V DC, IP67 protection, operating range -25 °C to +70 °C, with output-state LED indication. Conforms to IEC 60947-5-2.
Technical Specifications
- Manufacturer part number (MPN)
- XS612B1DAM12
- EAN / GTIN
- 3666916013014
- Product type
- OsiSense XS inductive proximity sensor
- Housing
- M12 cylindrical threaded barrel (Nickel-plated brass)
- Nominal sensing distance Sn
- 4 mm
- Output
- 2-wire DC
- Switching function
- NO (normally open)
- Connection
- M12 connector (4-pin)
- Rated supply voltage
- 12…48 V DC
- Degree of protection
- IP67
- Operating temperature
- -25 °C to +70 °C
- Conforms to
- IEC 60947-5-2
- HS code
- 8536.50
- Sales unit
- pcs
- Package quantity
- 10 pcs
Standards & Compliance
- Standard
- IEC 60947-5-2
- Material
- Nickel-plated brass
- Temperature Range
- -25 °C to +70 °C
- IP Rating
- IP67
- HS Code
- 8536.50
Cross References
- EAN 3666916013014
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique OsiSense XS7D1A1PBM12 Inductive Proximity Sensor — 80 × 80 mm block, Sn 40 mm, PNP, NC, M12 connector (4-Pin)
Telemecanique
Telemecanique XUX2APBNT16R Photoelectric Through-Beam Receiver, Plastic, PNP, NC, Screw terminals
Telemecanique
Telemecanique OsiSense XS530B1MAL2 Inductive Proximity Sensor — M30 barrel, Sn 10 mm, 2-Wire AC/DC, NO, pre-wired cable (2 m)
Telemecanique
Telemecanique OsiSense XS7C1A1PBL5 Inductive Proximity Sensor — 40 × 40 mm block, Sn 15 mm, PNP, NC, pre-wired cable
Telemecanique
Telemecanique XUX5APANM12 Photoelectric Sensor, Diffuse, Plastic, PNP, NO, M12 connector
Telemecanique
Telemecanique XCPR2510P20 Limit Switch, Plunger, Manual Reset, Plastic Body, M20 cable entry
Telemecanique
Telemecanique OsiSense XS530B1PBM12 Inductive Proximity Sensor — M30 barrel, Sn 10 mm, PNP, NC, M12 connector (4-Pin)
Telemecanique
Telemecanique OsiSense XS8E1A1NAL2 Inductive Proximity Sensor — 26 × 26 mm block, Sn 15 mm, NPN, NO, pre-wired cable
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XS612B1DAM12?
- XS612B1DAM12 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XS612B1DAM12.
- What is the HS code for XS612B1DAM12?
- The customs tariff (HS) code for XS612B1DAM12 is 8536.50.
- Who manufactures XS612B1DAM12?
- XS612B1DAM12 is a Telemecanique product in the Sensors & Instrumentation range.
- Is a datasheet available for XS612B1DAM12?
- Yes — the XS612B1DAM12 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XS612B1DAM12?
- The minimum order quantity is 1.
- Is XS612B1DAM12 available?
- Yes — XS612B1DAM12 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
