Telemecanique XCMD2145L1 Limit Switch, Adjustable-Length Roller Lever, Metal Body, 1 m cable
Pricing
Request a quote
We reply within 24 hours
Product Description

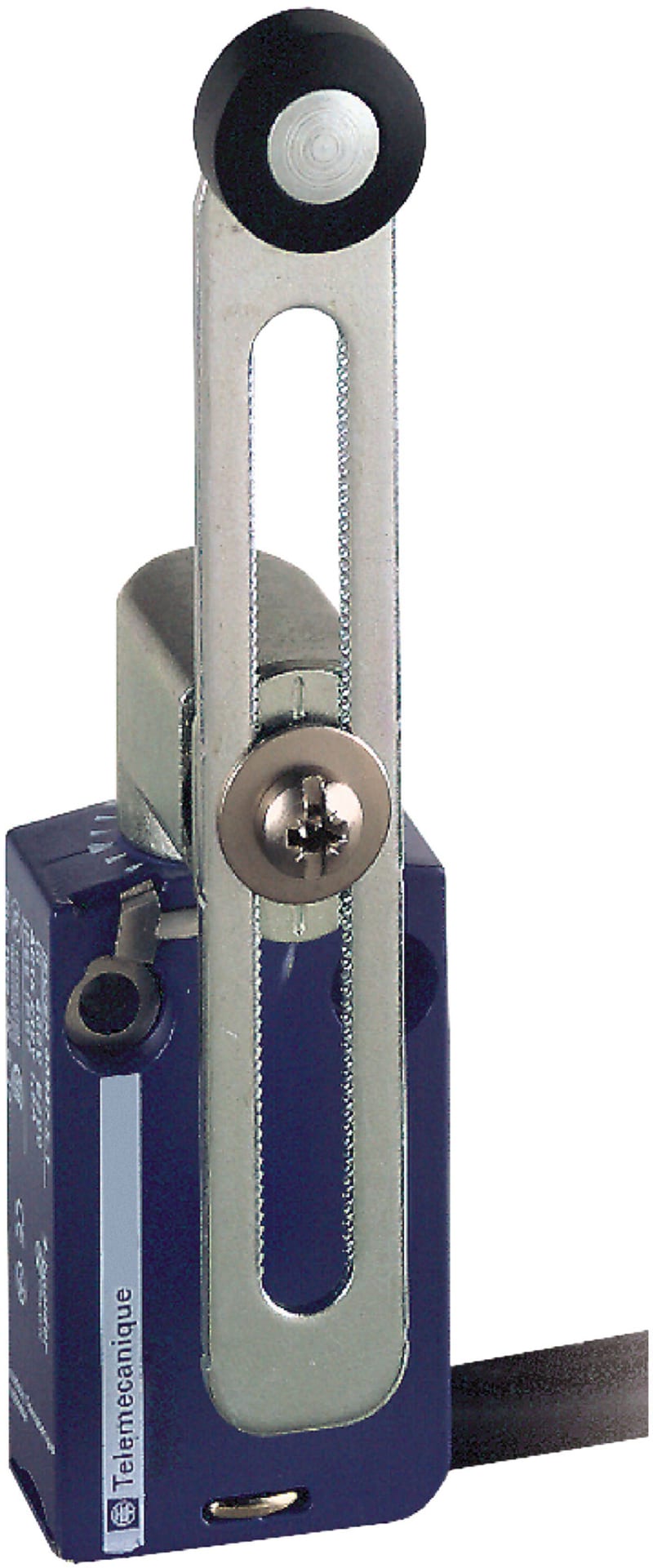

Telemecanique OsiSense XCMD2145L1 limit switch with adjustable-length roller lever actuator, snap-action contacts, metal body, 1 m cable.
Technical Specifications
- Manufacturer part number (MPN)
- XCMD2145L1
- EAN / GTIN
- 3666916093009
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Switching function
- Quick-break switch
- Rated operation current Ie at AC-15, 230 V
- 1.5 A
- Rated operation current Ie at DC-13, 230 V
- 0.1 A
- Housing material
- Metal
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Type of electric connection
- With cable preassembled
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Degree of protection (IP)
- IP66/IP67
- Forced opening
- Yes
- Type of control element
- Adjustable roller lever
- Type of interface
- None
- Output electronic
- No
- Width sensor
- 30 mm
- Height of sensor
- 50 mm
- Length of sensor
- 16 mm
- Switching function latching
- No
- Ambient temperature during operating
- -25–70 °C
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 1
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916093009
- SAP 1000046486
- Code 8833957
Product Documentation
