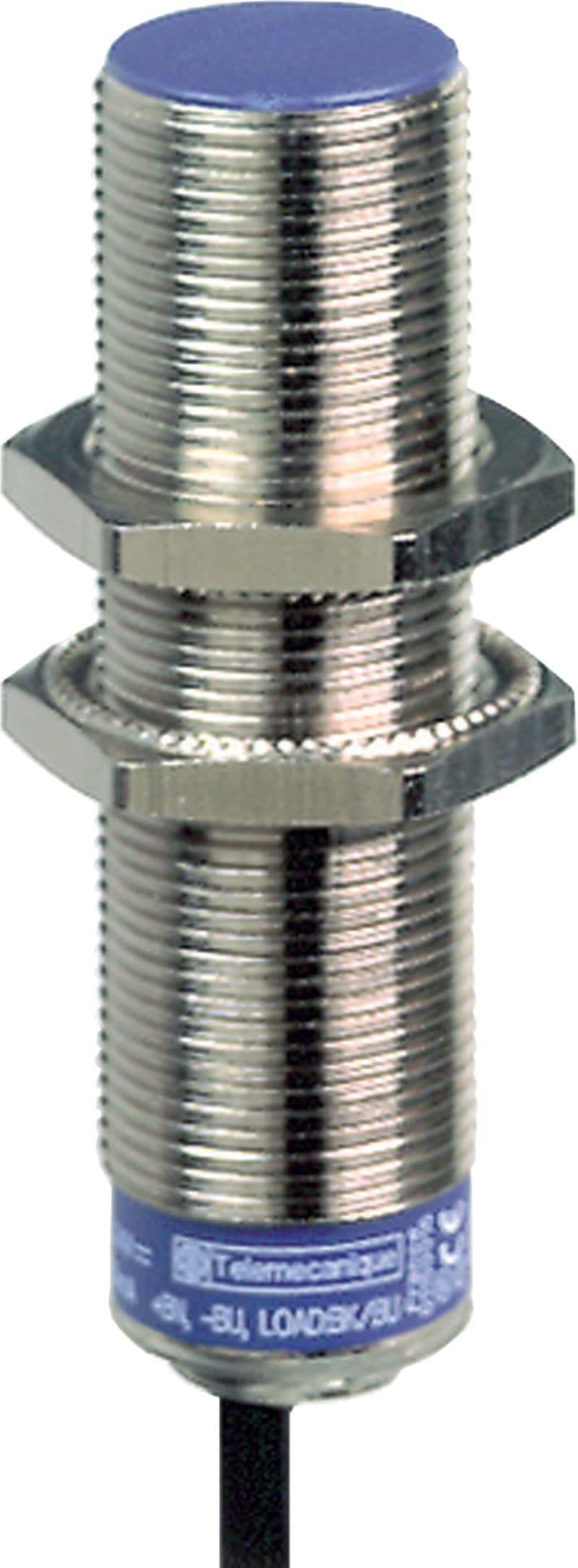

Telemecanique OsiSense XS618B1MBL10 Inductive Proximity Sensor — M18 barrel, Sn 8 mm, 2-Wire AC/DC, NC, pre-wired cable
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XS618B1MBL10 is an OsiSense XS inductive proximity sensor in an M18 nickel-plated brass threaded barrel, with a nominal sensing distance (Sn) of 8 mm. It provides a 2-wire AC/DC output, switching NC (normally closed), via pre-wired cable. Rated supply 24…240 V AC/DC, IP67 protection, operating range -25 °C to +70 °C, with output-state LED indication. Conforms to IEC 60947-5-2.
Technical Specifications
- Manufacturer part number (MPN)
- XS618B1MBL10
- EAN / GTIN
- 3666916012512
- Product type
- OsiSense XS inductive proximity sensor
- Housing
- M18 cylindrical threaded barrel (Nickel-plated brass)
- Nominal sensing distance Sn
- 8 mm
- Output
- 2-wire AC/DC
- Switching function
- NC (normally closed)
- Connection
- pre-wired cable
- Rated supply voltage
- 24…240 V AC/DC
- Degree of protection
- IP67
- Operating temperature
- -25 °C to +70 °C
- Conforms to
- IEC 60947-5-2
- HS code
- 8536.50
- Sales unit
- pcs
- Package quantity
- 14 pcs
Standards & Compliance
- Standard
- IEC 60947-5-2
- Material
- Nickel-plated brass
- Temperature Range
- -25 °C to +70 °C
- IP Rating
- IP67
- HS Code
- 8536.50
Cross References
- EAN 3666916012512
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique ZCKJ5D Limit Switch Body, Metal, NO+NC, Slow-break
Telemecanique
Telemecanique XUSL4MA30H061N Type 4 Safety Light Grille with Integrated Muting, 610 mm protected height
Telemecanique
Telemecanique OsiSense XS630B1DAL2 Inductive Proximity Sensor — M30 barrel, Sn 15 mm, 2-Wire DC, NO, pre-wired cable (2 m)
Telemecanique
Telemecanique OsiSense XS630B1DBL2 Inductive Proximity Sensor — M30 barrel, Sn 15 mm, 2-Wire DC, NC, M12 connector (4-Pin)
Telemecanique
Telemecanique OsiSense XS612B1NAL5 Inductive Proximity Sensor — M12 barrel, Sn 4 mm, NPN, NO, pre-wired cable
Telemecanique

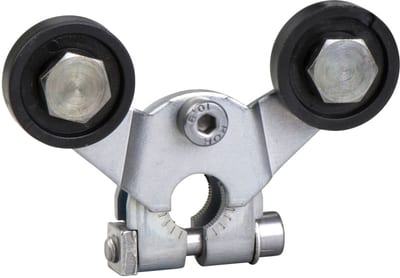

Telemecanique ZC2JY71 Limit Switch Operating Lever, Square roller lever
