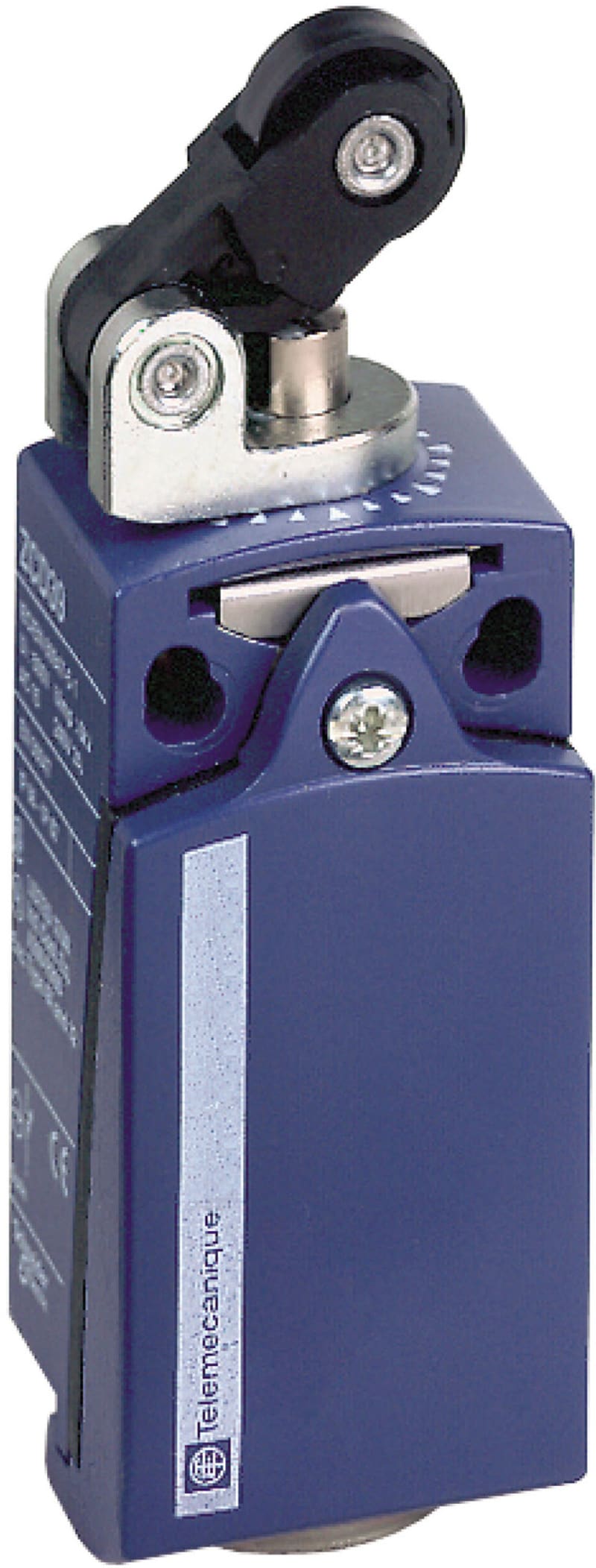

Telemecanique XCKD limit switch, metal body, thermoplastic roller lever plunger head, horizontal actuation, 1 NC + 1 NO, slow action, spring return, M16 x 1.5 cable entry, IP66/IP67 XCKD2521P16

Telemecanique XCKD2521P16 position (limit) switch from the XC Standard range, metal body, with a thermoplastic roller lever plunger head operated by lateral (horizontal) approach. 1 NC + 1 NO contact block, slow action, with positive opening on the NC contact. Spring return: the head resets itself when the actuator withdraws. One M16 x 1.5 cable entry. Protection IP66/IP67.

Manufacturer part number (MPN)

XCKD2521P16

EAN / GTIN

3666916094945

HS code

8536.90

Sales unit

pcs

Package quantity

44 pcs

Switching function

Slow-action switch and quick-break switch

Rated operation current Ie at AC-15, 230 V

3 A

Rated operation current Ie at DC-13, 230 V

0.27 A

Housing material

Metal

Suitable for safety functions

No

With status indication

No

Type of interface for safety communication

None

Type of electric connection

Cable entry metrical

Explosion safety category for gas

None

Explosion safety category for dust

None

Construction type housing

Cuboid

Degree of protection (IP)

IP66/IP67

Forced opening

Yes

Type of control element

Roller cam

Type of interface

None

Output electronic

No

Width sensor

31 mm

Height of sensor

65 mm

Length of sensor

30 mm

Switching function latching

No

Ambient temperature during operating

-25–70 °C

Number of contacts as normally closed contact

1

Number of contacts as normally open contact

1

Alignment of the control element

Roller cam straight

Country of origin

France

HS Code

8536.90
