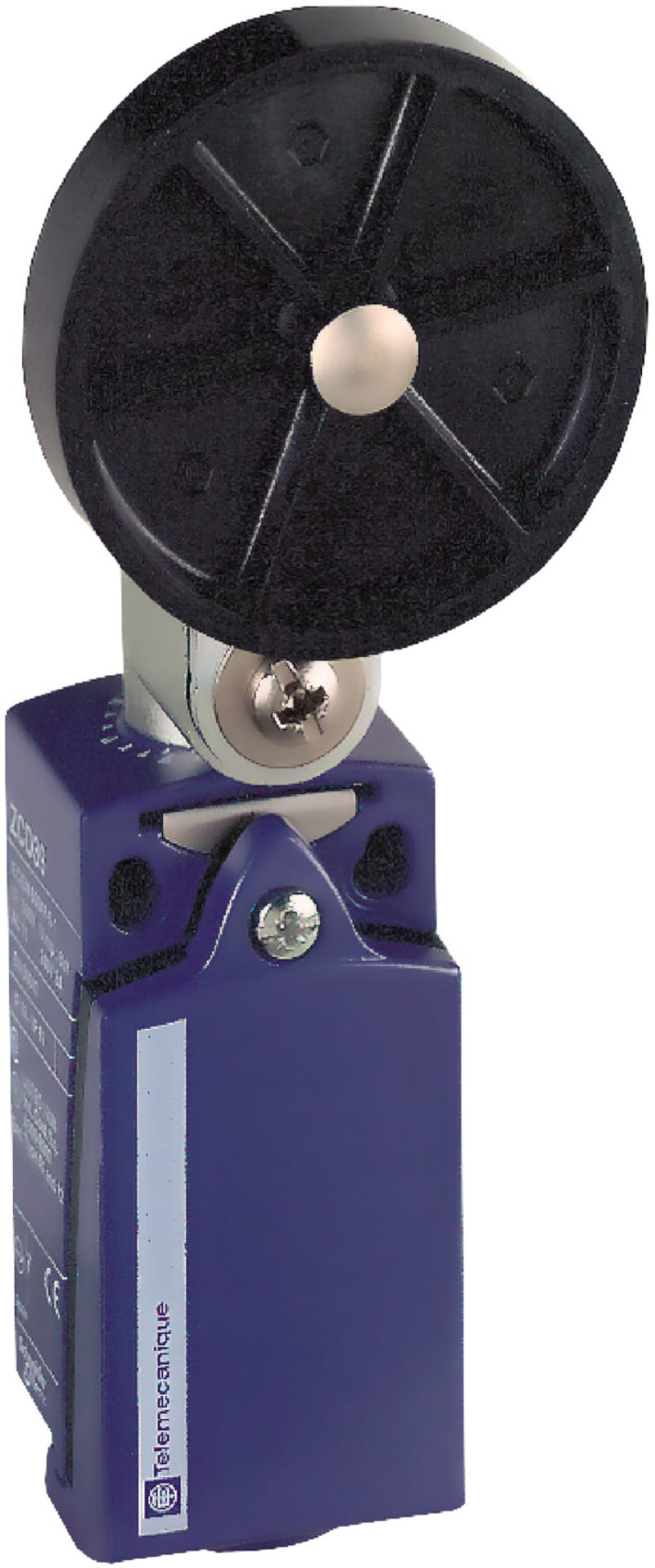

Telemecanique XCKD2139P16 Limit Switch, Thermoplastic Roller Ø50 mm, M16 Cable Entry

Telemecanique XCKD2139P16 is a limit switch fitted with a short roller-lever actuator carrying a Ø50 mm thermoplastic wheel and an M16 metric cable entry. The metal housing offers IP66/IP67 protection with forced opening of a 1 NO + 1 NC quick-break contact block. Rated 3 A at AC-15 230 V; operating range −25 to 70 °C.

Manufacturer part number (MPN)

XCKD2139P16

EAN / GTIN

3666916095041

HS code

8536.90

Sales unit

pcs

Package quantity

4 pcs

Switching function

Quick-break switch

Rated operation current Ie at AC-15, 230 V

3 A

Rated operation current Ie at DC-13, 230 V

0.27 A

Housing material

Metal

Suitable for safety functions

No

With status indication

No

Type of interface for safety communication

None

Type of electric connection

Cable entry metrical

Explosion safety category for gas

None

Explosion safety category for dust

None

Construction type housing

Cuboid

Degree of protection (IP)

IP66/IP67

Forced opening

Yes

Type of control element

Roller lever

Type of interface

None

Output electronic

No

Width sensor

31 mm

Height of sensor

65 mm

Length of sensor

30 mm

Switching function latching

No

Ambient temperature during operating

-25–70 °C

Number of contacts as normally closed contact

1

Number of contacts as normally open contact

1

Country of origin

Indonesia

HS Code

8536.90

• EAN 3666916095041
• SAP 1000021607
• Code 8167065
