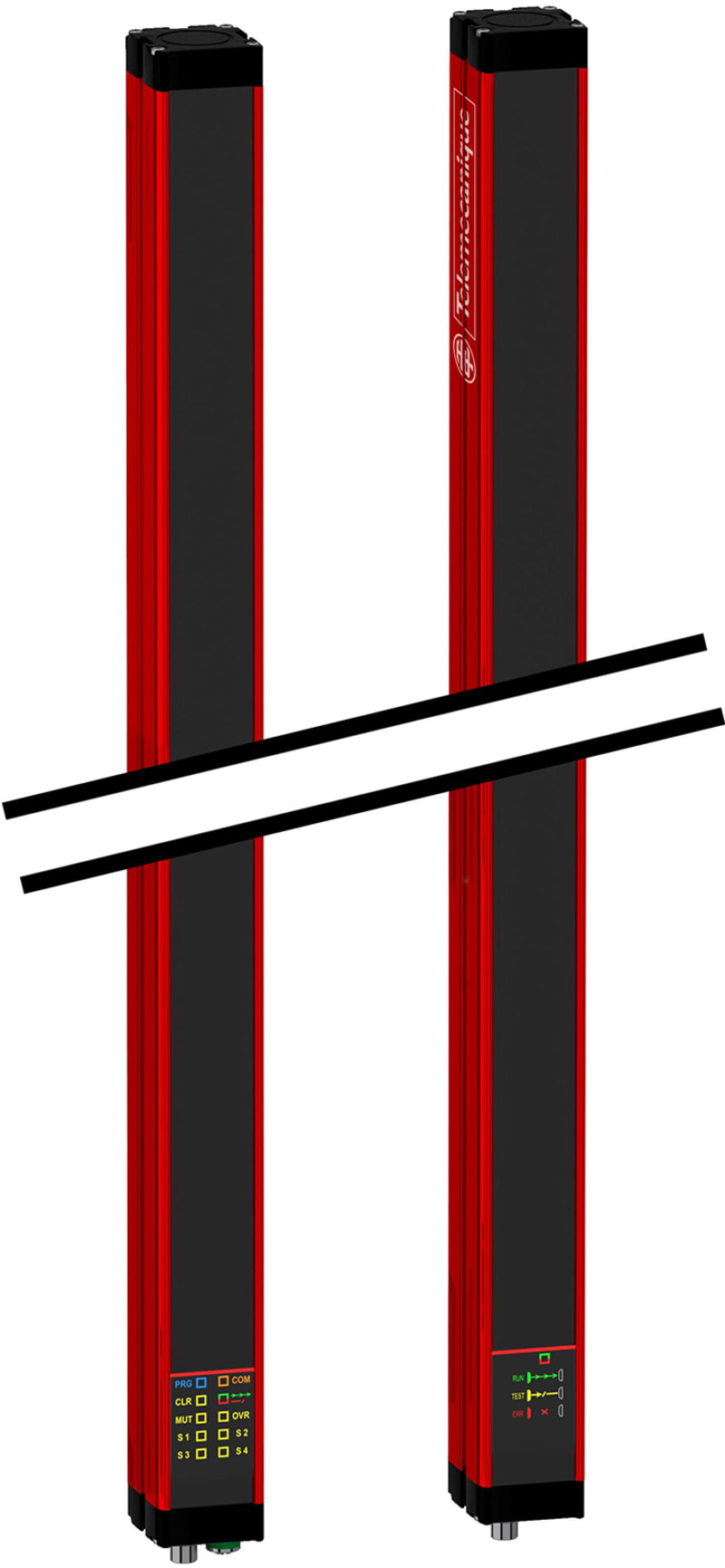

Telemecanique XUSL4MB2BB051N Type 4 Safety Light Grille with Integrated Muting
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XUSL4MB2BB051N type 4 safety light grille with integrated muting function, for conveyor and palletiser openings where material must pass but persons must be detected.
Technical Specifications
- Manufacturer part number (MPN)
- XUSL4MB2BB051N
- EAN / GTIN
- 3666916027363
- Sales unit
- pcs
- Number of protected semiconductor outputs
- 2
- Fade-out possible
- No
- Type of switching output of the OSSD
- PNP
- Type of electric connection
- Connector M12
- Operation agent-safety class
- Safety class 3
- Width sensor
- 50 mm
- Height of sensor
- 710 mm
- Length of sensor
- 55 mm
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Cascadable
- No
- Scope of delivery of the one-way system
- Transmitter and receiver
- Max. output current at protected output
- 400 mA
- With muting function
- Yes
- Override possible
- No
- Response time
- 5.5 ms
- Reduced resolution
- Yes
- Transmission range of the safety field
- 12 m
- Switching voltage of OSSD at state "high"
- 24 V
- Safety field height
- 510 mm
- Type of safety according to IEC 61496-1
- 4
- Voltage type
- DC
- With beam coding
- No
- Clock control possible
- No
- With monitoring function downstream switching devices
- No
- Wavelength of the sensor
- 950 nm
- With restart blockage
- Yes
- Suitable for safety functions
- Yes
- Degree of protection (IP)
- IP67
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916027363
- SAP 1200357477
- Code 82360758
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique ZCKJ5H7 Limit Switch Body, Metal, NO+NC, Slow-break
Telemecanique
Telemecanique OsiSense XS7D1A1PBL10 Inductive Proximity Sensor — 80 × 80 mm block, Sn 40 mm, PNP, NC, pre-wired cable
Telemecanique
Telemecanique XUX5ARCNT16 Photoelectric Sensor, Diffuse, Plastic, AC/DC Multi-Voltage, Relay Output, Screw terminals
Telemecanique
Telemecanique OsiSense XS7F1A1PBL2 Inductive Proximity Sensor — 15 × 32 mm block, Sn 10 mm, PNP, NC, pre-wired cable
Telemecanique
Telemecanique XUSL4MB30H076N Type 4 Safety Light Grille with Integrated Muting, 760 mm protected height
Telemecanique
Telemecanique OsiSense XS618B1PBL2 Inductive Proximity Sensor — M18 barrel, Sn 8 mm, PNP, NC, pre-wired cable
Telemecanique

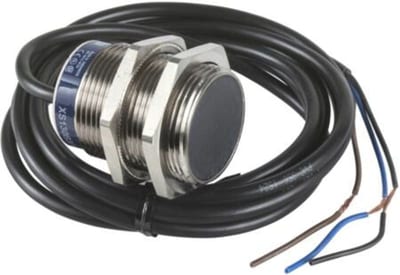

Telemecanique OsiSense XS530B1NAL2 Inductive Proximity Sensor — M30 barrel, Sn 10 mm, NPN, NO, pre-wired cable (2 m)
Telemecanique

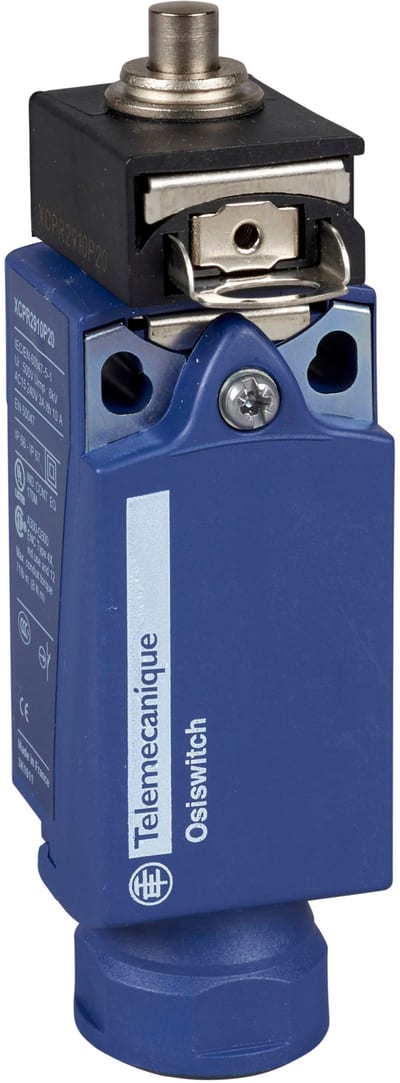

Telemecanique XCPR2510G13 Limit Switch, Metal Plunger, PG13 entry
