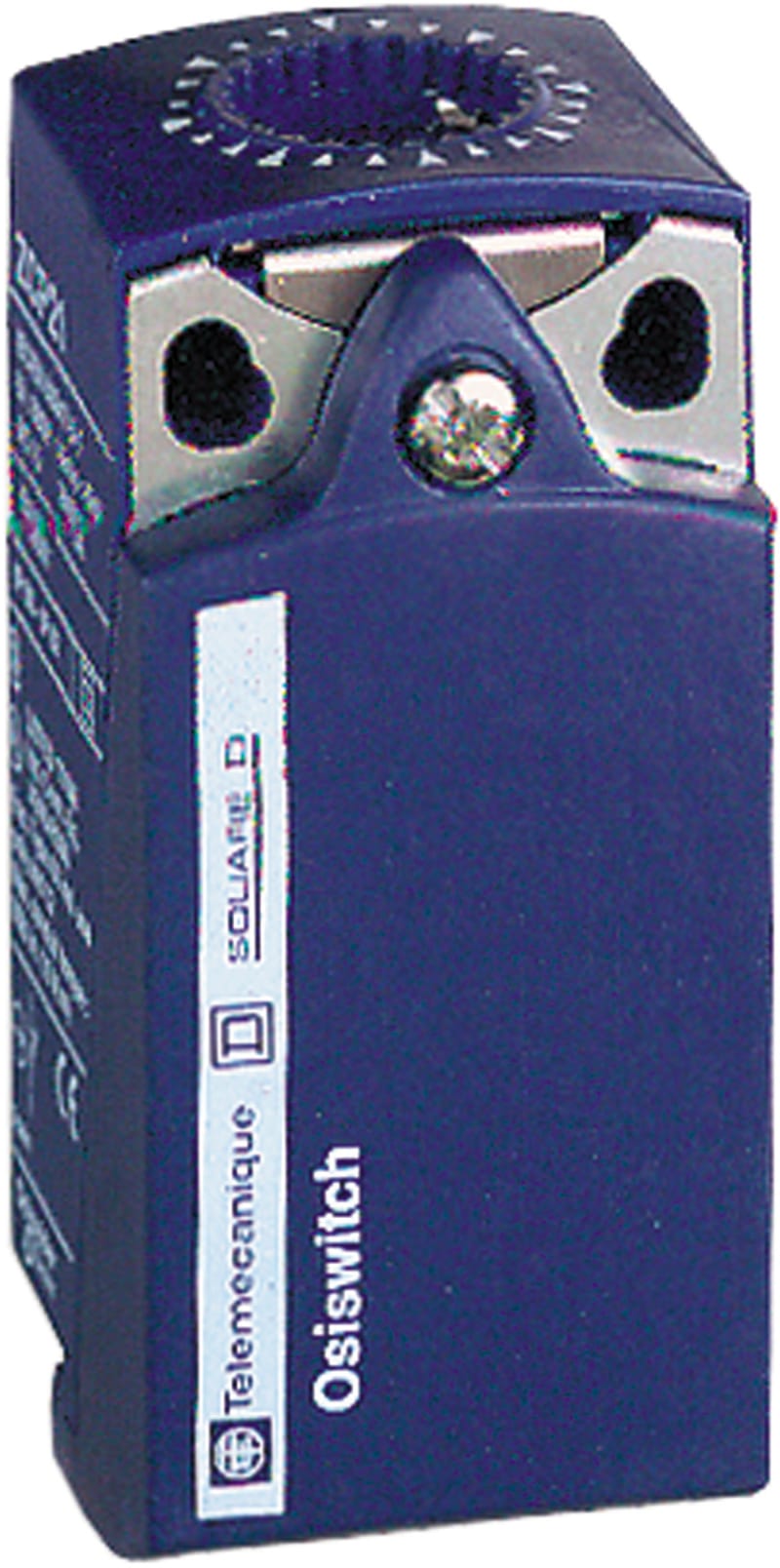

Telemecanique ZCP25 Limit Switch Body, Plastic, 1 NO + 1 NC
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique ZCP25 plastic limit switch body (contact body) for the ZCP compact programme, 1 NO + 1 NC contacts, combine with a ZCE operating head.
Technical Specifications
- Manufacturer part number (MPN)
- ZCP25
- EAN / GTIN
- 3666916042793
- Sales unit
- pcs
- Package quantity
- 81 pcs
- Contact configuration
- NO / NC
- Switching function
- Slow-action switch
- Rated operation current Ie at AC-15, 230 V
- 1.5 A
- Rated operation current Ie at DC-13, 230 V
- 0.1 A
- Housing material
- Plastic
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP66/IP67
- Forced opening
- Yes
- Type of control element
- None
- Type of interface
- None
- Output electronic
- No
- Width sensor
- 31 mm
- Height of sensor
- 65 mm
- Length of sensor
- 30 mm
- Switching function latching
- No
- Ambient temperature during operating
- -25–70 °C
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 1
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916042793
- SAP 1000021784
- Code 8190208
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XMLP400BC71F Pressure Transmitter, 0.5–4.5 V ratiometric, G 1/4, DIN connector
Telemecanique
Telemecanique XMXA06L2135 Pressure Switch 1–6 bar, Internally Adjustable, Black Cover
Telemecanique
Telemecanique XMLP600BD21F Pressure Transmitter, 0.5–4.5 V ratiometric, G 1/4, M12 connector
Telemecanique
Telemecanique Preventa Guard Interlock Switch Metal 230 V 2 NC + 2 NC M20
XCSLF2727342
Telemecanique
Telemecanique XCSDMP5002 Coded Magnetic Safety Switch
Telemecanique
Telemecanique ZCKE636 Plunger Operating Head for ZCK Limit Switches
Telemecanique
Telemecanique XMLR001G2N05 Pressure Sensor with Display, 0–1 bar, 2× NPN
Telemecanique
Telemecanique OsiSense XS212BLPAL2 Inductive Proximity Sensor — M12 barrel, Sn 4 mm, PNP, NO, pre-wired cable
Technical guides
- Limit Switch and Position Switch Finder — by Actuator (Roller Plunger, Roller Lever, Rod Lever, Plunger, Spring Rod) and Contacts — Telemecanique XCK, Siemens 3SE5, Eaton LS, R. Stahl Ex
- Emergency Stop Rope Pull Switches — Covering Conveyors to EN ISO 13850 with XY2C
- Inductive Proximity Sensors — Diameter, Sensing Distance, Flush Mounting, PNP/NPN and NO/NC Explained
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy ZCP25?
- ZCP25 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is ZCP25.
- What is the HS code for ZCP25?
- The customs tariff (HS) code for ZCP25 is 8536.50.
- Who manufactures ZCP25?
- ZCP25 is a Telemecanique product in the Sensors & Instrumentation range.
- Is a datasheet available for ZCP25?
- Yes — the ZCP25 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for ZCP25?
- The minimum order quantity is 1.
- Is ZCP25 available?
- Yes — ZCP25 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
