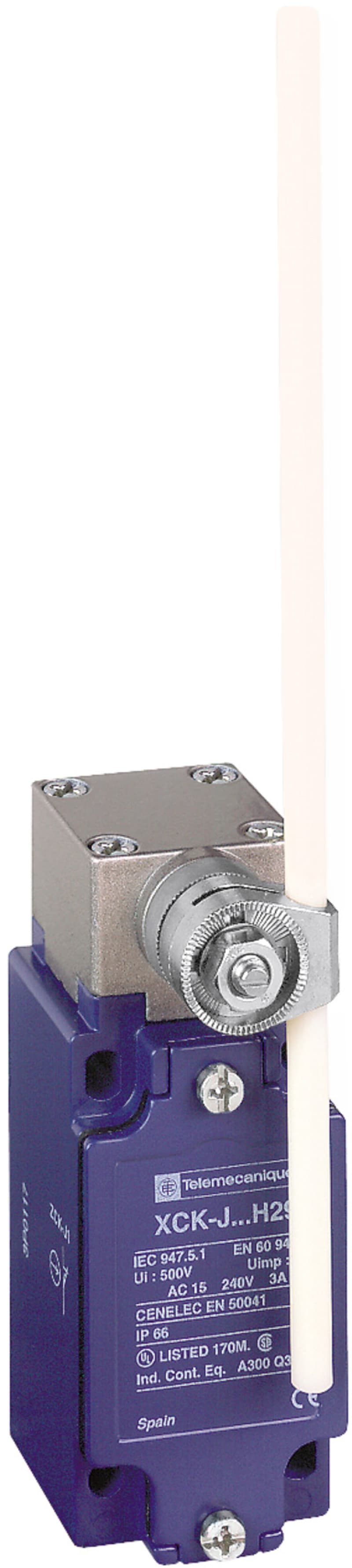

Telemecanique XCKJ10559H29 Limit Switch, Glass-Fibre Rod Lever, 1 NO + 1 NC, M20 entry
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XCKJ10559H29 limit switch (position switch), glass-fibre rod lever actuator, 1 NO + 1 NC contacts, M20 entry.
Technical Specifications
- Manufacturer part number (MPN)
- XCKJ10559H29
- EAN / GTIN
- 3666916056349
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 14 pcs
- Contact configuration
- NO + NC
- Switching function
- Quick-break switch
- Rated operation current Ie at AC-15, 230 V
- 3 A
- Rated operation current Ie at DC-13, 230 V
- 0.27 A
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry PG
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Degree of protection (IP)
- IP65
- Forced opening
- No
- Type of control element
- Actuating rod
- Type of interface
- None
- Output electronic
- No
- Rated operation current Ie at AC-15, 125 V
- 3 A
- Width sensor
- 40 mm
- Height of sensor
- 77 mm
- Length of sensor
- 44 mm
- Switching function latching
- No
- Ambient temperature during operating
- -25–70 °C
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 1
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916056349
- SAP 1000047054
- Code 8803509
