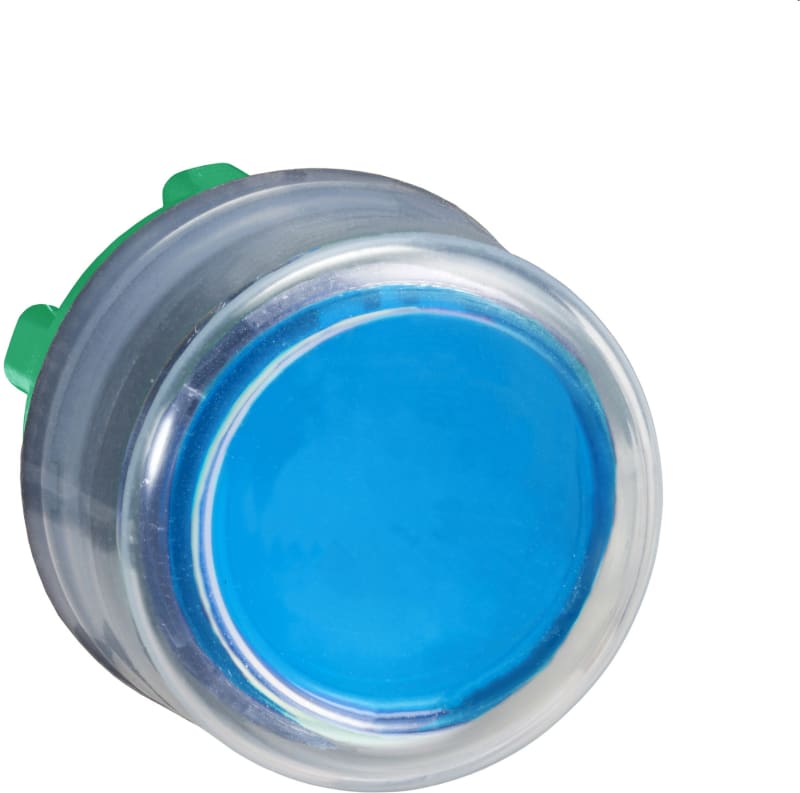

Telemecanique ZB5AP6 Push button head, plastic, projecting, blue, Ø22, spring return, booted, unmarked
Pricing
Request a quote
We reply within 24 hours
Product Description
Loose push buttons in plastic for use with the XB5 series. Can also be used in the push-button enclosures (XAL).
Technical Specifications
- Manufacturer part number (MPN)
- ZB5AP6
- EAN / GTIN
- 3389110906714
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Range of product
- Harmony XB5
- Product or component type
- Head for non-illuminated push-button
- Device short name
- ZB5
- Product compatibility
- Not compatible with legend holder
- Bezel material
- Dark grey plastic
- Mounting diameter
- 22 mm
- Head type
- Standard
- Sale per indivisible quantity
- 1
- Shape of signaling unit head
- Round
- Type of operator
- spring return
- Operator profile
- Blue projecting, unmarked
- Operator additional information
- Clear boot
- CAD overall width
- 30 mm
- CAD overall height
- 30 mm
- CAD overall depth
- 35 mm
- Product weight
- 0.014 kg
- Mechanical durability
- 10000000 cycles
- Station name
- XALD 1...5 cut-outs; XALK 2...5 cut-outs
- Electrical composition code
- C1 for <9 contacts using single blocks in front mounting; C2 for <9 contacts using single and double blocks in front mounting; C11 for <3 contacts using single blocks in front mounting; C15 for <1 contacts using single blocks in
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3389110906714
- SAP 1000254507
- Code 8222488
Product Documentation
