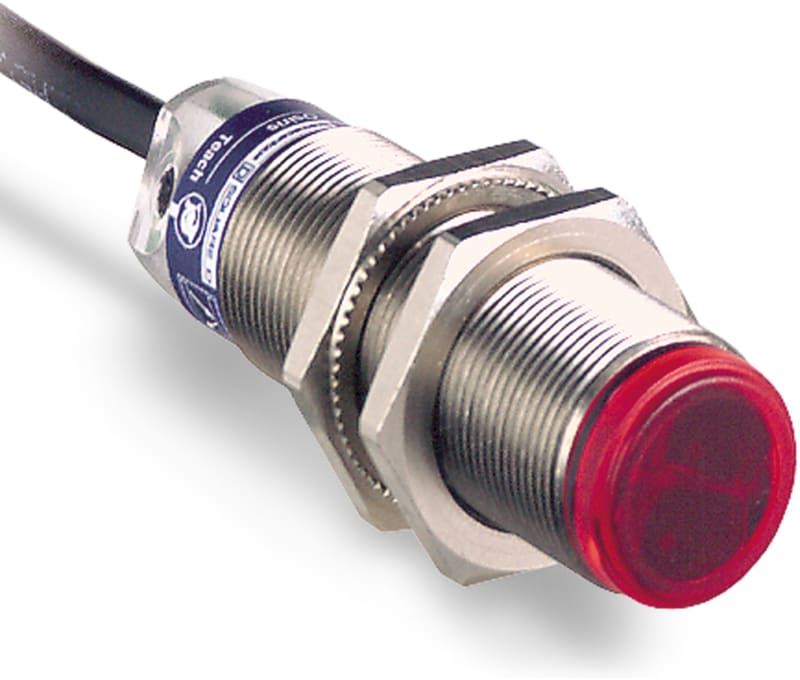

Telemecanique XUB0BKSNL2T Multimode Photoelectric Sensor, Metal, 2 m cable
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique OsiSense XUB0BKSNL2T photoelectric multimode sensor (through-beam, reflex and diffuse modes), Ø18 mm (M18), metal housing, infrared emitter, rated distance 20 m, 2 m cable.
Technical Specifications
- Manufacturer part number (MPN)
- XUB0BKSNL2T
- EAN / GTIN
- 3666916033340
- Sales unit
- pcs
- Package quantity
- 22 pcs
- Scope of delivery of the one-way system
- Transmitter and receiver
- Pre failure notice
- No
- With time function
- No
- Rated switching distance
- 20000 mm
- Max. switching distance
- 30000 mm
- Max. output current
- 100 mA
- With reflector
- No
- Analogue output 0 V ... 10 V
- No
- Analogue output 0 mA ... 20 mA
- No
- Analogue output 4 mA ... 20 mA
- No
- Analogue output -10 V ... +10 V
- No
- With other analogue output
- No
- Setting procedure
- Teach-In
- With communication interface analogue
- No
- With communication interface AS-Interface
- No
- With communication interface CANOpen
- No
- With communication interface DeviceNet
- No
- With communication interface Ethernet
- No
- With communication interface INTERBUS
- No
- With communication interface PROFIBUS
- No
- With communication interface RS-232
- No
- With communication interface RS-422
- No
- With communication interface RS-485
- No
- With communication interface SSD
- No
- With communication interface SSI
- No
- Type of electric connection
- Cable radial
- Operation agent-safety class
- Safety class 0
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cylinder, screw-thread
- Diameter sensor
- 18 mm
- Length of sensor
- 62 mm
- Sensing mode
- Dark switching
- Material of optical surface
- Plastic
- Housing material
- Metal
- Max. output current at protected output
- 100 mA
- Min. reflector distance
- 15000 mm
- Ambient temperature
- -25–55 °C
- Response time
- 2 ms
- Switching frequency
- 250 Hz
- Type of safety according to IEC 61496-1
- 1
- Rated control supply voltage DC
- 12–24 V
- Voltage type
- AC/DC
- With monitoring function downstream switching devices
- No
- Laser protection class
- None
- Type of light
- Infrared light
- With restart blockage
- No
- Suitable for safety functions
- No
- Degree of protection (IP)
- IP65
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916033340
- SAP 1000055329
- Code 8845411
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique ZBY2179 sign holder with French legend 30x40 mm
Telemecanique
Telemecanique XUSZMD016 Deflection Mirror for Safety Light Curtains, 250 mm
Telemecanique
Telemecanique XCSDMC7902 Magnetic Safety Switch, 2 m cable
Telemecanique
Telemecanique XUZC21 Reflector, Ø21 mm, for Photoelectric Sensors
Telemecanique
Telemecanique ZC1AZ7 Protective Cover for Limit Switches
Telemecanique
Telemecanique XMEP3K0PT730 Pressure Transmitter, G 1/4 A, 0.5–4.5 V ratiometric, Deutsch DT04 connector
Telemecanique
Telemecanique XCSDMP5912 Coded Magnetic Safety Switch, 2 NC, with LED
Telemecanique
Telemecanique voltage control relay RM17-U - range 9..15 V DC RM17UAS14
Technical guides
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XUB0BKSNL2T?
- XUB0BKSNL2T can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XUB0BKSNL2T.
- What is the HS code for XUB0BKSNL2T?
- The customs tariff (HS) code for XUB0BKSNL2T is 8536.50.
- Who manufactures XUB0BKSNL2T?
- XUB0BKSNL2T is a Telemecanique product in the Sensors & Instrumentation range.
- Is a datasheet available for XUB0BKSNL2T?
- Yes — the XUB0BKSNL2T datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XUB0BKSNL2T?
- The minimum order quantity is 1.
- Is XUB0BKSNL2T available?
- Yes — XUB0BKSNL2T is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
