Telemecanique XCSDMC7902 Magnetic Safety Switch, 2 m cable
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XCSDMC7902 magnetic safety interlock switch for guard-door monitoring, 2 m cable.
Technical Specifications
- Manufacturer part number (MPN)
- XCSDMC7902
- EAN / GTIN
- 3666916060032
- HS code
- 8544.42
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Contact configuration
- 2 NC
- Type of actuation
- Magnet
- Type of electric connection
- Cable radial
- Type of switching output
- Relay contact
- Width sensor
- 16 mm
- Height of sensor
- 51 mm
- Length of sensor
- 7 mm
- Explosion safety category for gas
- None
- Construction type housing
- Cuboid
- Housing material
- Plastic
- Protected switch distance OFF
- 15 mm
- Protected switch distance ON
- 5 mm
- SIL according to IEC 61508
- 3
- Performance level according to EN ISO 13849-1
- Level e
- Max. output current at protected output
- 100 mA
- Ambient temperature
- -25–85 °C
- Mechanical mounting condition for sensor
- Not flat
- Min. output current
- 100 mA
- Rated supply voltage DC
- 24 V
- Voltage type
- AC/DC
- Cross-/short circuit identification possible
- Yes
- Switching distance
- 15 mm
- With monitoring function downstream switching devices
- No
- Suitable for safety functions
- Yes
- With status indication
- No
- Degree of protection (IP)
- IP67K
- Country of origin
- France
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 3666916060032
- SAP 1000053828
- Code 8537200
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XUZC21 Reflector, Ø21 mm, for Photoelectric Sensors
Telemecanique
Telemecanique ZC1AZ7 Protective Cover for Limit Switches
Telemecanique

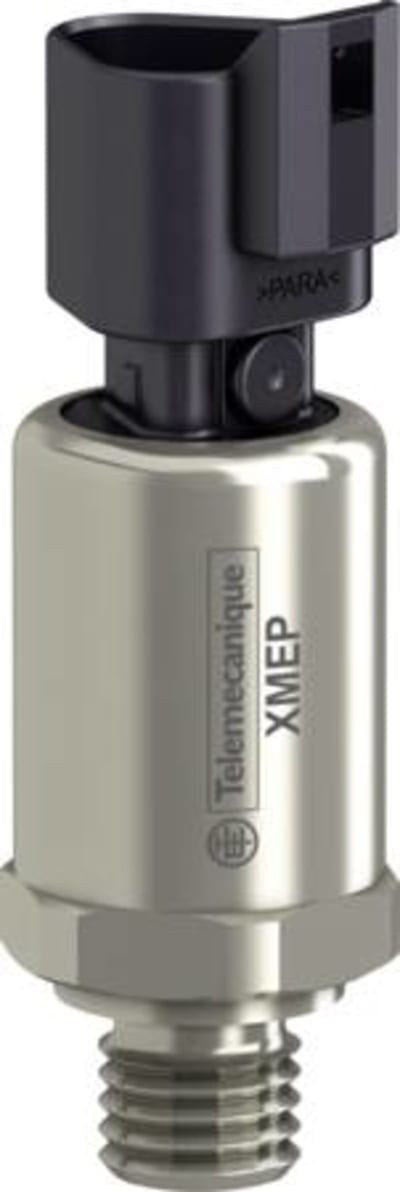

Telemecanique XMEP3K0PT730 Pressure Transmitter, G 1/4 A, 0.5–4.5 V ratiometric, Deutsch DT04 connector
Telemecanique
Telemecanique XCSDMP5912 Coded Magnetic Safety Switch, 2 NC, with LED
Telemecanique
Telemecanique voltage control relay RM17-U - range 9..15 V DC RM17UAS14
Telemecanique
Telemecanique OsiSense XS508BLPBM12 Inductive Proximity Sensor — M8 barrel, Sn 1.5 mm, PNP, NC, M12 connector (4-Pin)
Telemecanique
Telemecanique XCSTA591 Safety Limit Switch, 1 NC + 2 NO
Telemecanique
Telemecanique XCSRC31AM12 Safety Limit Switch, M12 connector
Technical guides
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XCSDMC7902?
- XCSDMC7902 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XCSDMC7902.
- What is the HS code for XCSDMC7902?
- The customs tariff (HS) code for XCSDMC7902 is 8544.42.
- Who manufactures XCSDMC7902?
- XCSDMC7902 is a Telemecanique product in the Safety & Detection range.
- Is a datasheet available for XCSDMC7902?
- Yes — the XCSDMC7902 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XCSDMC7902?
- The minimum order quantity is 1.
- Is XCSDMC7902 available?
- Yes — XCSDMC7902 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
