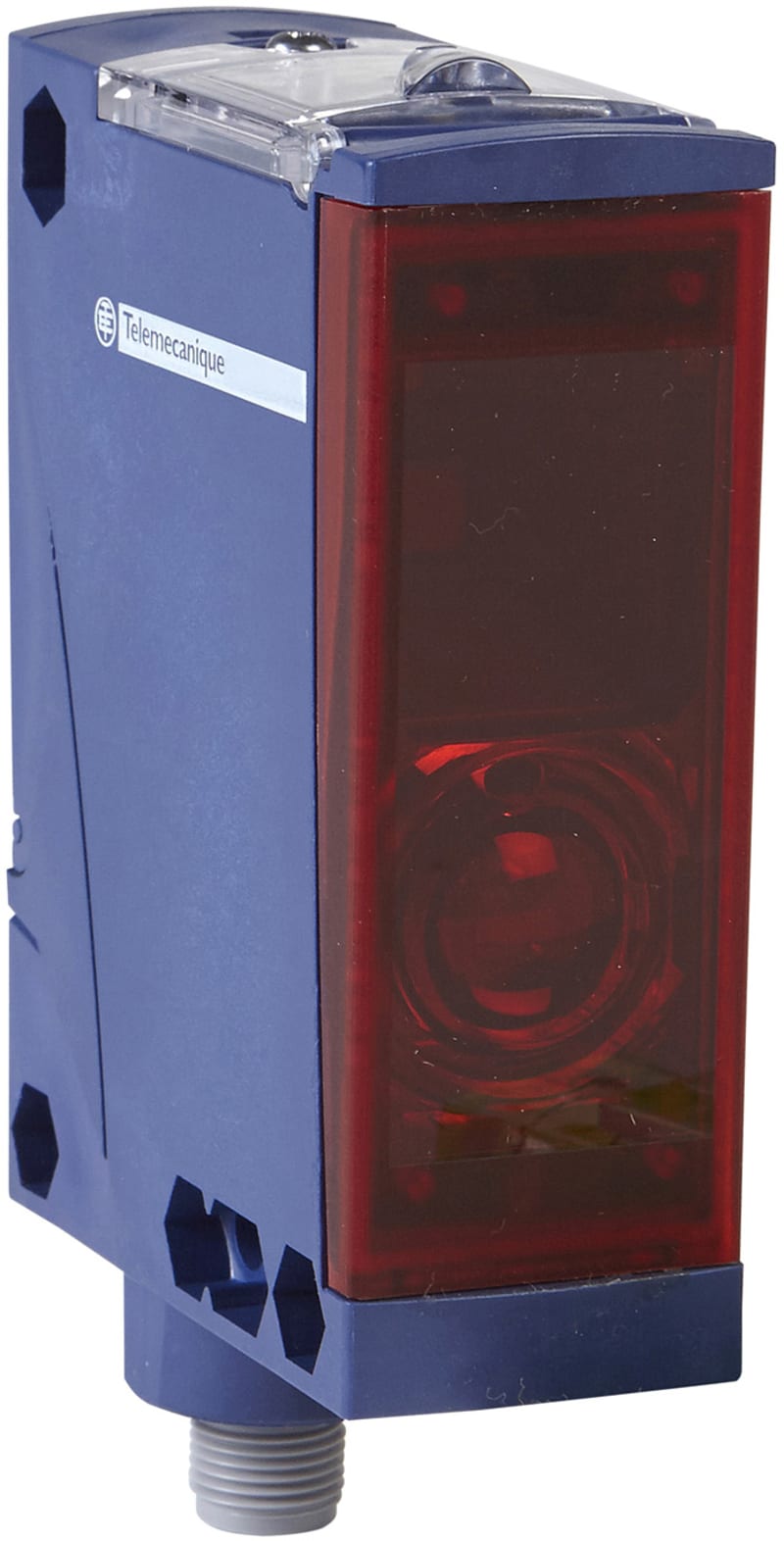

Telemecanique XUX9APANM12 Photoelectric Sensor, Polarised Reflex, Plastic, PNP, NO, M12 connector
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique OsiSense XUX9APANM12 photoelectric sensor, polarised reflex, 92 × 71 mm, plastic housing, PNP NO output, rated distance 11 m, M12 connector.
Technical Specifications
- Manufacturer part number (MPN)
- XUX9APANM12
- EAN / GTIN
- 3666916035597
- Sales unit
- pcs
- Package quantity
- 11 pcs
- Output type
- PNP
- Contact configuration
- NO
- Pre failure notice
- No
- With time function
- No
- Rated switching distance
- 11000 mm
- Max. switching distance
- 15000 mm
- Max. output current
- 100 mA
- With reflector
- No
- Analogue output 0 V ... 10 V
- No
- Analogue output 0 mA ... 20 mA
- No
- Analogue output 4 mA ... 20 mA
- No
- Analogue output -10 V ... +10 V
- No
- With other analogue output
- No
- Setting procedure
- Manual adjustment
- With communication interface analogue
- No
- With communication interface AS-Interface
- No
- With communication interface CANOpen
- No
- With communication interface DeviceNet
- No
- With communication interface Ethernet
- No
- With communication interface INTERBUS
- No
- With communication interface PROFIBUS
- No
- With communication interface RS-232
- No
- With communication interface RS-422
- No
- With communication interface RS-485
- No
- With communication interface SSD
- No
- With communication interface SSI
- No
- Number of semiconductor outputs with signalling function
- 1
- Type of electric connection
- Connector M12
- Type of switching output
- PNP/PNP
- Type of switch function
- Normally open contact (NO)
- Operation agent-safety class
- Safety class 0
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Width sensor
- 31 mm
- Height of sensor
- 92 mm
- Length of sensor
- 77 mm
- Sensing mode
- Dark switching
- Material of optical surface
- Plastic
- Housing material
- Plastic
- Max. output current at protected output
- 100 mA
- Min. reflector distance
- 5000 mm
- Ambient temperature
- -25–55 °C
- Response time
- 2 ms
- Switching frequency
- 250 Hz
- Type of safety according to IEC 61496-1
- 1
- Rated control supply voltage DC
- 12–24 V
- Voltage type
- AC/DC
- With monitoring function downstream switching devices
- No
- Laser protection class
- None
- Type of light
- Polarized red light
- With restart blockage
- No
- Suitable for safety functions
- No
- Degree of protection (IP)
- IP65
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916035597
- SAP 1000053701
- Code 8878739
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XMLC010B2S11 Pressure Switch, up to 10 bar, PG13 entry
Telemecanique
Telemecanique XMLP025BD11F Pressure Transmitter, 0.5–4.5 V ratiometric, G 1/4, M12 connector
Telemecanique
Telemecanique XMLPM3CPD290 Pressure Transmitter, 0.5–4.5 V ratiometric, 7/16"-20 UNF female, M12 connector
Telemecanique
Telemecanique OsiSense XS4P18NB340D Inductive Proximity Sensor — M18 barrel, Sn 8 mm, NPN, NC
Telemecanique
Telemecanique XUB2BNANM12R Photoelectric Through-Beam Receiver, Metal, NPN, NO, M12 connector
Telemecanique
Telemecanique XZCP0166L5 Sensor Cable, M8 female straight, 3-pin, 5 m
Telemecanique
Telemecanique XXS18S1PM12 Ultrasonic Sensor, M18, Sn 1 m, PNP, M12 connector
Telemecanique
Telemecanique XMLP060BC21F Pressure Transmitter, 0.5–4.5 V ratiometric, G 1/4, DIN connector
Technical guides
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XUX9APANM12?
- XUX9APANM12 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XUX9APANM12.
- What is the HS code for XUX9APANM12?
- The customs tariff (HS) code for XUX9APANM12 is 8536.50.
- Who manufactures XUX9APANM12?
- XUX9APANM12 is a Telemecanique product in the Sensors & Instrumentation range.
- Is a datasheet available for XUX9APANM12?
- Yes — the XUX9APANM12 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XUX9APANM12?
- The minimum order quantity is 1.
- Is XUX9APANM12 available?
- Yes — XUX9APANM12 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
